Micro M10 GPS

SKU:

12044


Regular price$27.99
/
Shipping calculated at checkout.
VERSION

Volume discountĀ is available if meet the following quantity (some exclusions apply).Ā Please Contact us via email for invoice.Ā

Quantity Discount
10-99 10%
100-249 20%
250-499 25%
500-999 30%Ā
1000+ Contact us

Description:

These Micro GPS uses multi-constellation GNSS powered by u-blox M10, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently. It also comes with the IST8310 compass.

The high-gain 25 x 25 mm2 patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation.Ā
It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.Ā

High-Speed Drone GPS Comparison:

This blog post put Holybro M10, M9N, F9P and Matek M10Q was put to an ultimate test to determine which GPS units could keep pace with a high-speed drone in acro mode while ensuring precision during RTL and autonomous missions.

Features

  • Newest Ublox 10th Gen GNSS
  • Fast & Accurate Positioning
  • IST8310 Compass
  • Small Form FactorĀ

Specifications:

Ā  Holybro Micro M10 GPS Holybro Micro M9N GPS
GNSS Receiver Ublox M10 Ublox M9N
Number of Concurrent GNSS Up to 4 GNSS
- BeiDou
- Galileo
- GLONASS
- GPS
- QZSS
Up to 4 GNSS
- BeiDou
- Galileo
- GLONASS
- GPS
- QZSS
Frequency Band - GPS L1
- Galileo E1
- GLONASS L1
- BeiDou B1
- SBAS L1
- QZSS L1
- GPS L1
- Galileo E1
- GLONASS L1
- BeiDou B1
- SBAS L1
- QZSS L1
Compass IST8310 IST8310
Output Protocol - UBX (U-blox)
- NMEA
- UBX (U-blox)
- NMEA
Accuracy 2.0m CEP 1.5m CEP
Nav. Update RateĀ  Up to 25 Hz (single GNSS),
Up to 10 Hz (4 concurrent GNSS)
Up to 25 HzĀ (4 concerrent GNSS)
GNSS Augmentation System EGNOS, GAGAN, MSAS and WAAS
QZSS: L1S
EGNOS, GAGAN, MSAS and WAAS
QZSS: L1SĀ
Default Baud Rate 115200 115200
Input VoltageĀ  4.7-5.2V 4.7-5.2V
Port Type JST-GH-6P JST-GH-6P
Antenna 25 x 25 x 4 mm ceramic patch antenna 25 x 25 x 4 mm ceramic patch antenna
Power consumption Less than 200mA @ 5V Less than 200mA @ 5V
Operating Temperature -40~80C -40~80C
Dimension - 32 x 26 x 9mm (w/o Case)
- 34 x 28 x 11mmĀ (With Case)
- 32 x 26 x 9mm (w/o Case)
- 34 x 28 x 11mmĀ (With Case)
Weight - 14gĀ (w/o Case)
- 16gĀ (With Case)
- 14gĀ (w/o Case)
- 16gĀ (With Case)
Other - LNA MAX2659ELT+ RF Amplifier
- Rechargeable Farah capacitance
- Low noise 3.3V regulator
- LNA MAX2659ELT+ RF Amplifier
- Rechargeable Farah capacitance
- Low noise 3.3V regulator

Firmware Support for M10 GPS:Ā PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0 or newer is required.

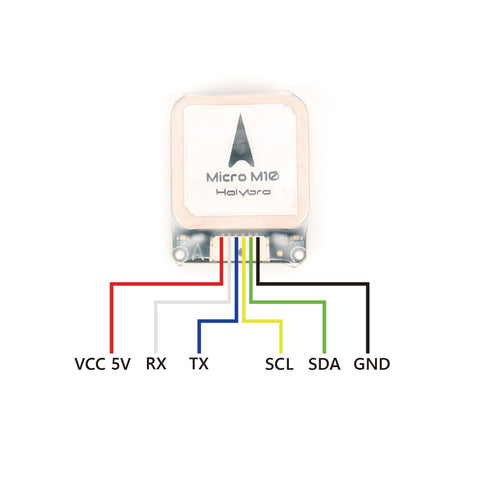

PIN MAP

Ā

Reference Link

Package Includes:

  • 1xĀ Micro GPS module *1
  • 1x JST GH 6 Position Connector 15 cm
  • 1x JST-GH 6pin Colored Silicon CableĀ 15 cm
