Overview

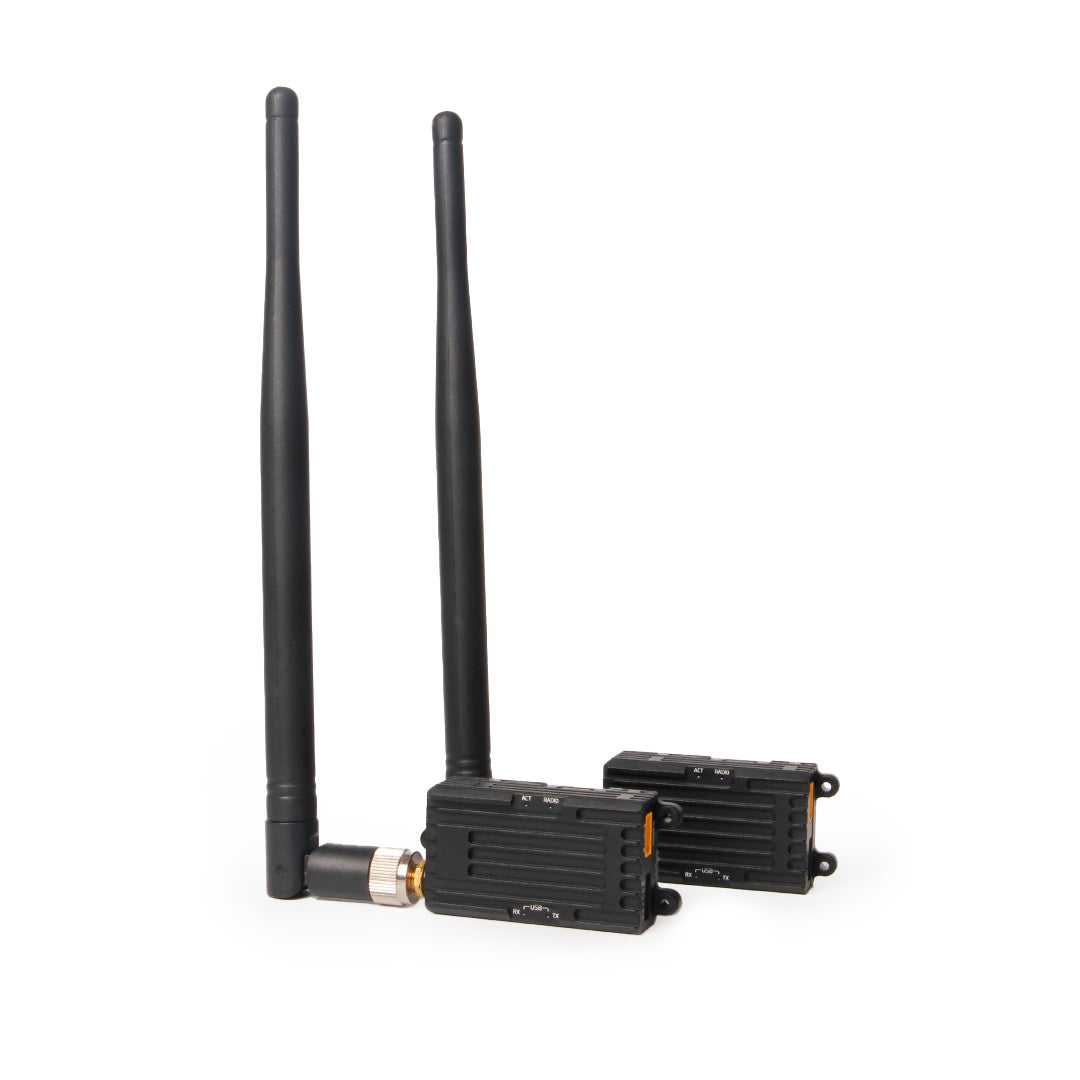

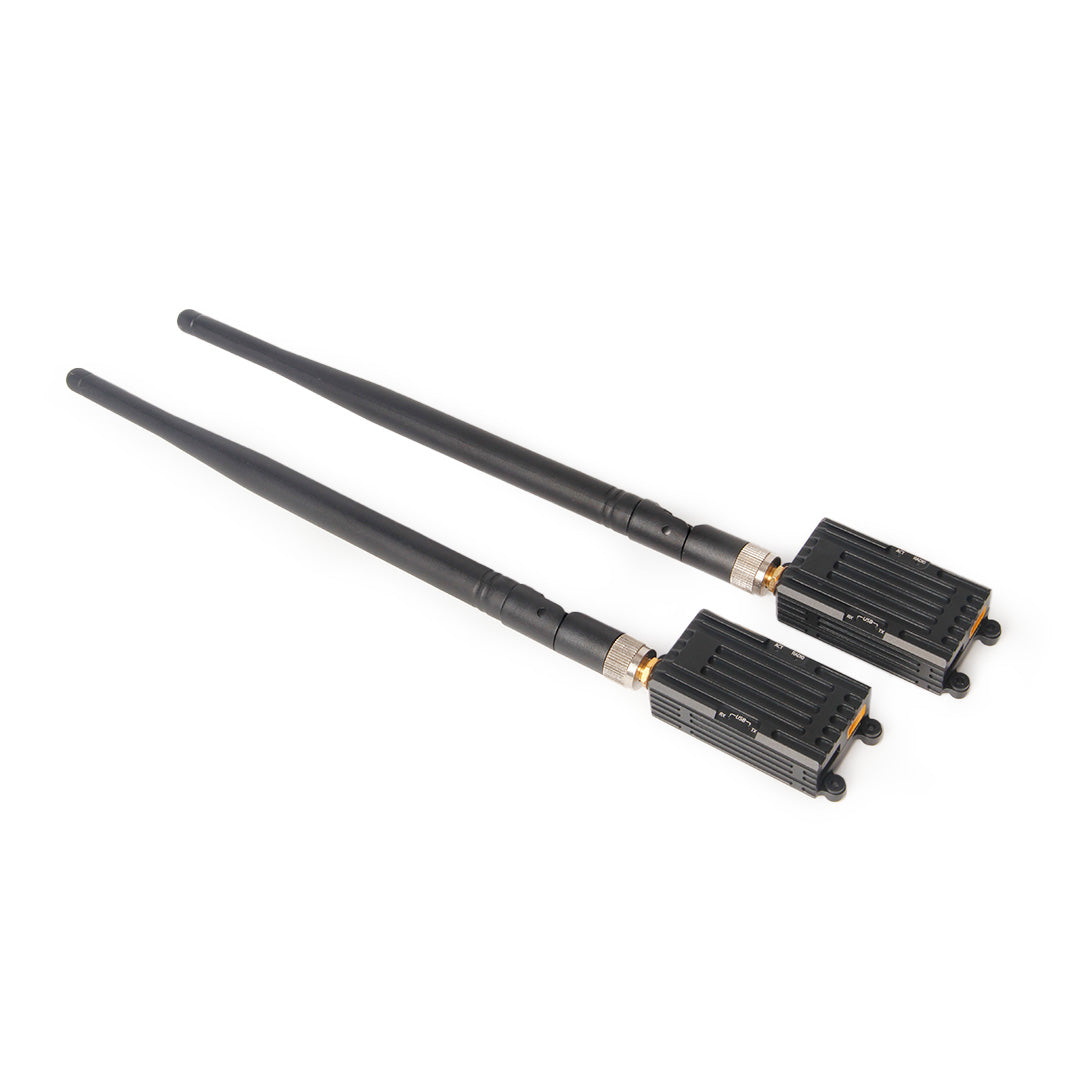

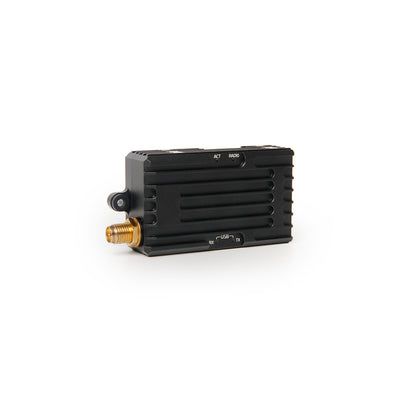

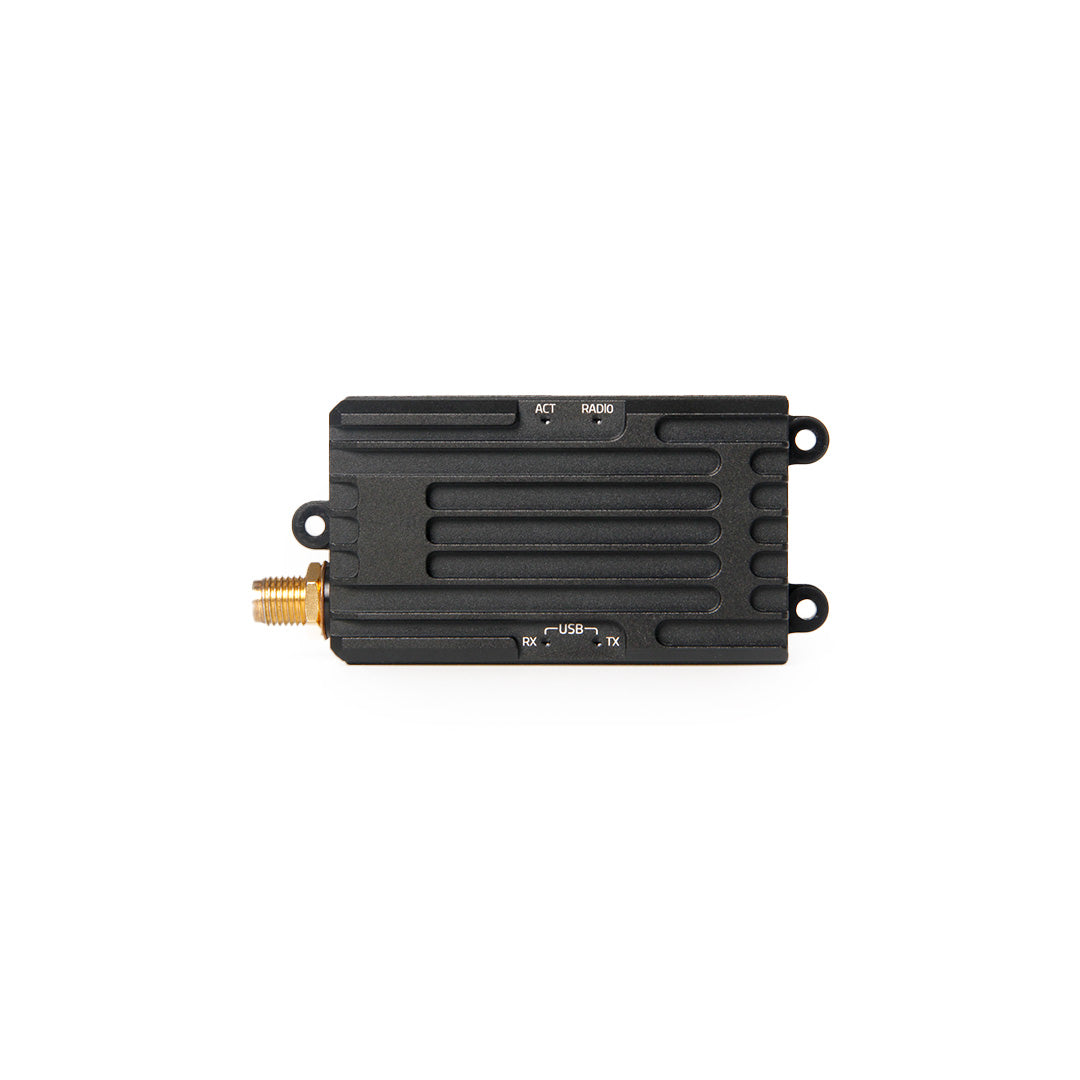

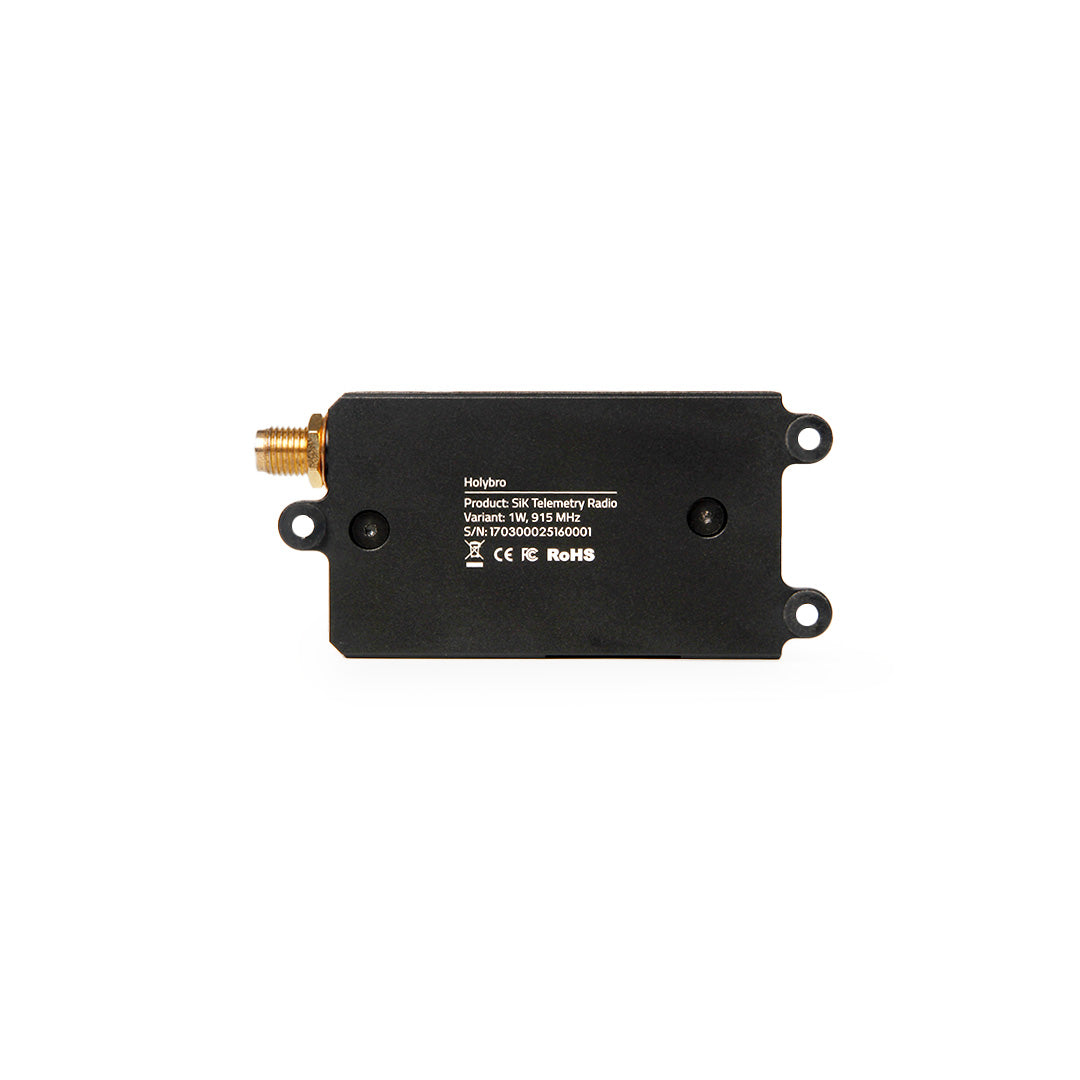

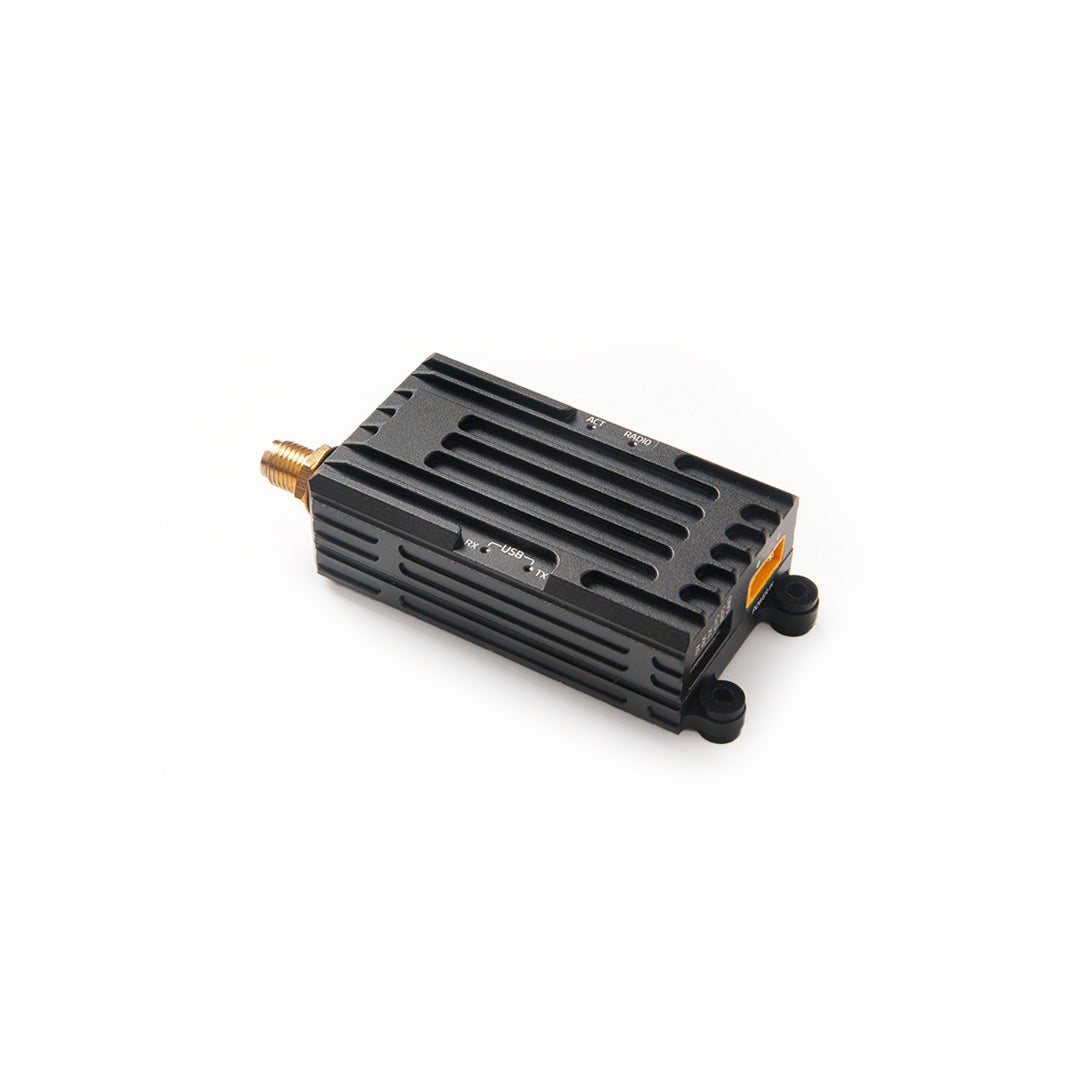

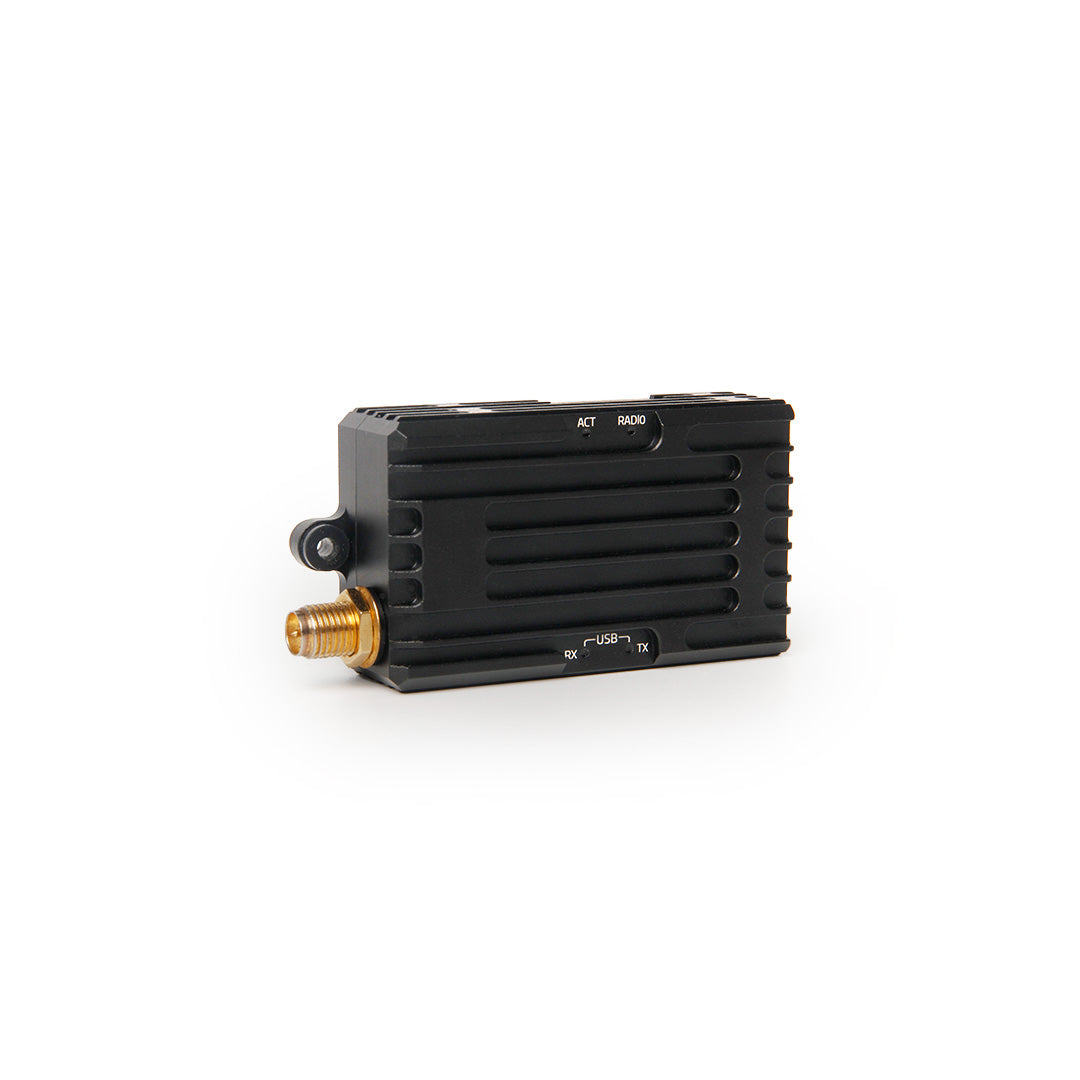

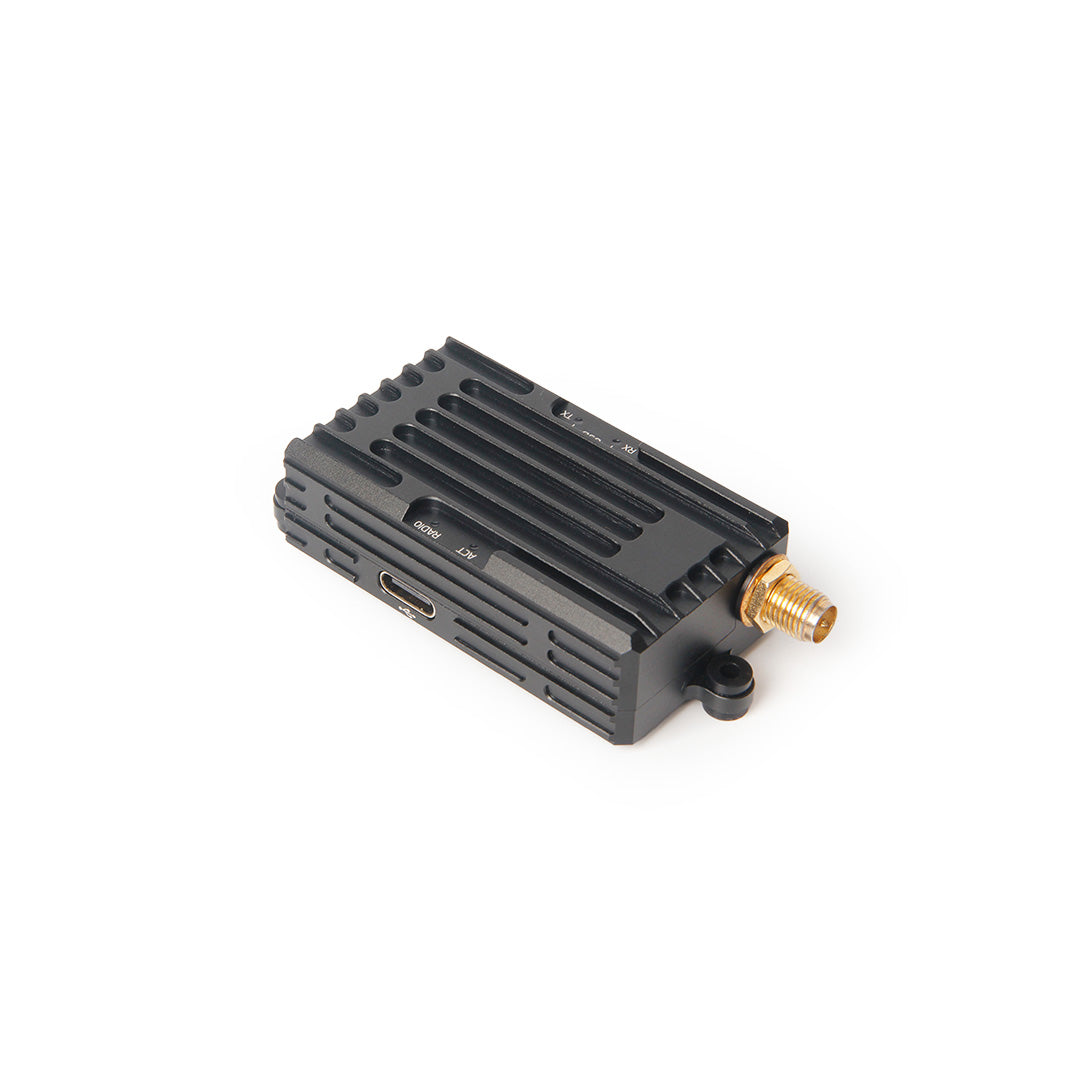

This Holybro SiK Telemetry Radio is a small, light, and inexpensive open-source radio platform that typically allows ranges of better than 300m “out of the box” (the range can be extended to several kilometres with the use of a patch antenna on the ground). This radio is plug-n-play, all Pixhawk Standard and other Flight Controller, providing the easiest way to set up a telemetry connection between your Autopilot and a ground station. It uses open-source firmware that has been specially designed to work well with MAVLink packets and to be integrated with the Mission Planner, Ardupilot, QGroundControl, PX4, and Autopilot. The radios can be either 915 MHz or 433 MHz, and you should purchase the model that is appropriate for your country/region.
Features
- Open-source SIK firmware
- Plug-n-play for Pixhawk Standard Flight Controllers
- The Easiest way to connect your Autopilot and Ground Station
- Interchangeable air and ground radio
- Micro-USB port (Type-C Adapter Cable Included)
- 6-position JST-GH connector
Specifications
- 2-way full-duplex communication through adaptive TDM UART interface
- Transparent serial link
- MAVLink protocol framing
- FT230X/FT231 is a USB to BASIC UART IC
| SiK Telemetry Radio 100mW | SiK Telemetry Radio 500mW | SiK Telemetry Radio 1W | |
|---|---|---|---|
| Max RF Power | 20 dBm | 27 dBm | 30 dBm |
| Receive sensitivity | -121 dbm @2kbps RF Data Rate, -105 dbm @64kbps RF Data Rate | ||
| Line-of-sight range | 300~500m (2dBi Antenna) | ~ 1km (2dBi Antenna) | ~ 50km (5dBi Antenna) |
| Antenna Gain | 2dBi | 5dBi | |
| RF Data Rates | 2, 4, 8, 16, 32, 64(default), 96, 128, 192, 250 kbps | ||
| Serial Interface Data Rate | 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6(default), 115.2 kbps | ||
| Frequency Band | 902MHz - 928MHz or 414MHz - 460MHz | ||
| Interference Immunity | Frequency Hopping Spread Spectrum (FHSS) Configurable duty cycle | ||
| Address Options | Network ID: 0 –255 | ||
| Channels | Up to 50 Frequency Hopping Channels | ||
| Supported Network Topologies | Point-to-point | ||
| Configuration Method | MissionPlanner or AT Commands | ||
| Data Framing | Standard or MAVLink protocol framing | ||
| Error correction | Corrects up to 25% of bit errors open-source SIK firmware | ||
| Serial Data Connector & Interface | 6-pin JST-GH connector, 3.3V-TTL | ||
| USB | Micro-USB | Type-C | |
| SMA Connector | RP-SMA female | ||
| Power Connector | NA | XT30 | |
| Operating Temperature | 40~85°C | ||
| Dimension | 28 x 53 x 10.7mm (without antenna) | 66.5 x 32 x 16.5mm (without antenna) | |

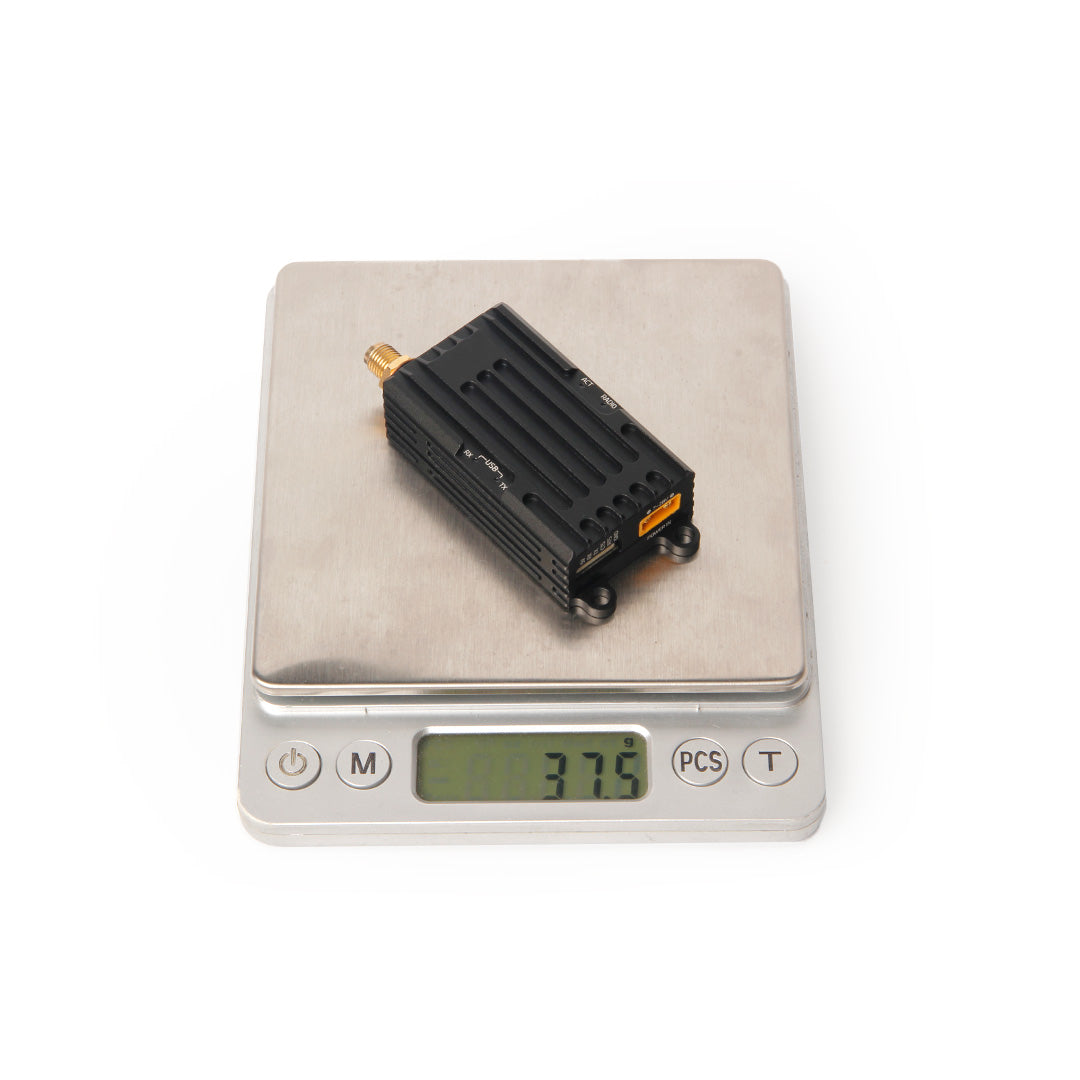

| Weight | 23.5g w/ antenna | 67g w/ antenna | |
| Input Voltage (DC) | 5V | 7~28V | |
Electrical Data
- Supply voltage:
- 100mW & 500mW version: 5V DC (from USB or JST-GH)

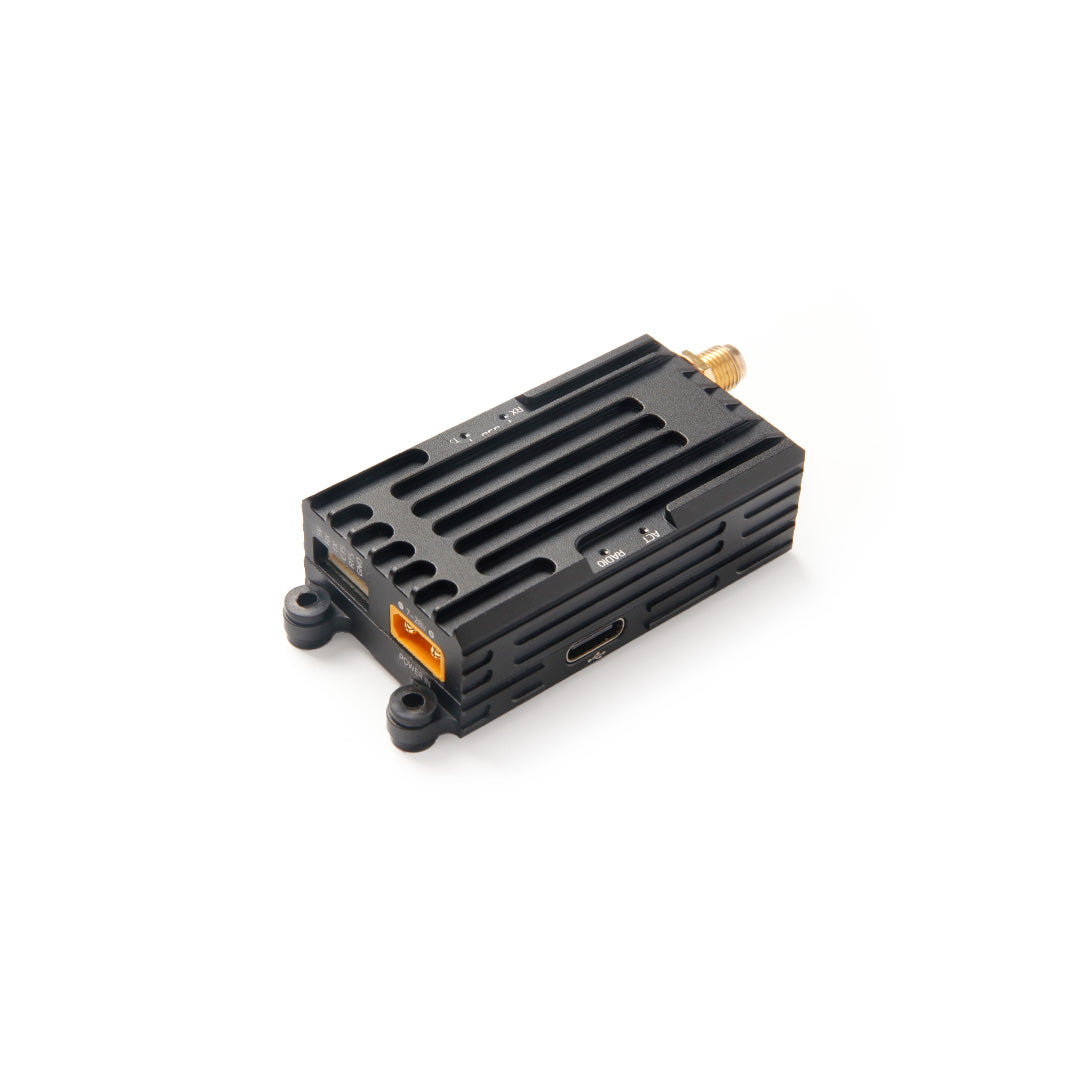

- 1W version: 7~28V DC via XT30
- Transmit current: 100 mA at 20 dBm
- Receive current: 25 mA
- Serial interface: 3.3 V UART

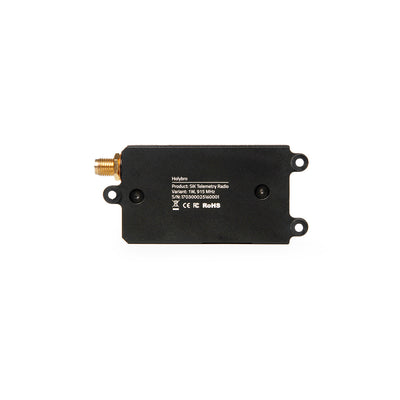

FCC IDENTIFIER
Package Included
-
100mW & 500mW options
- Radio modules with antennas *2
- Micro-USB to USB-A cable *1
- Micro-USB to Micro-USB OTG adapter cable *1
- Micro USB to Type-C Adapter
- JST-GH-6P to JST-GH-6P cable *1 (for Pixhawk Standard FC)
- JST-GH-6P to Molex DF13 6P (for Pix32, Pixhawk 2.4.6, etc.)
-

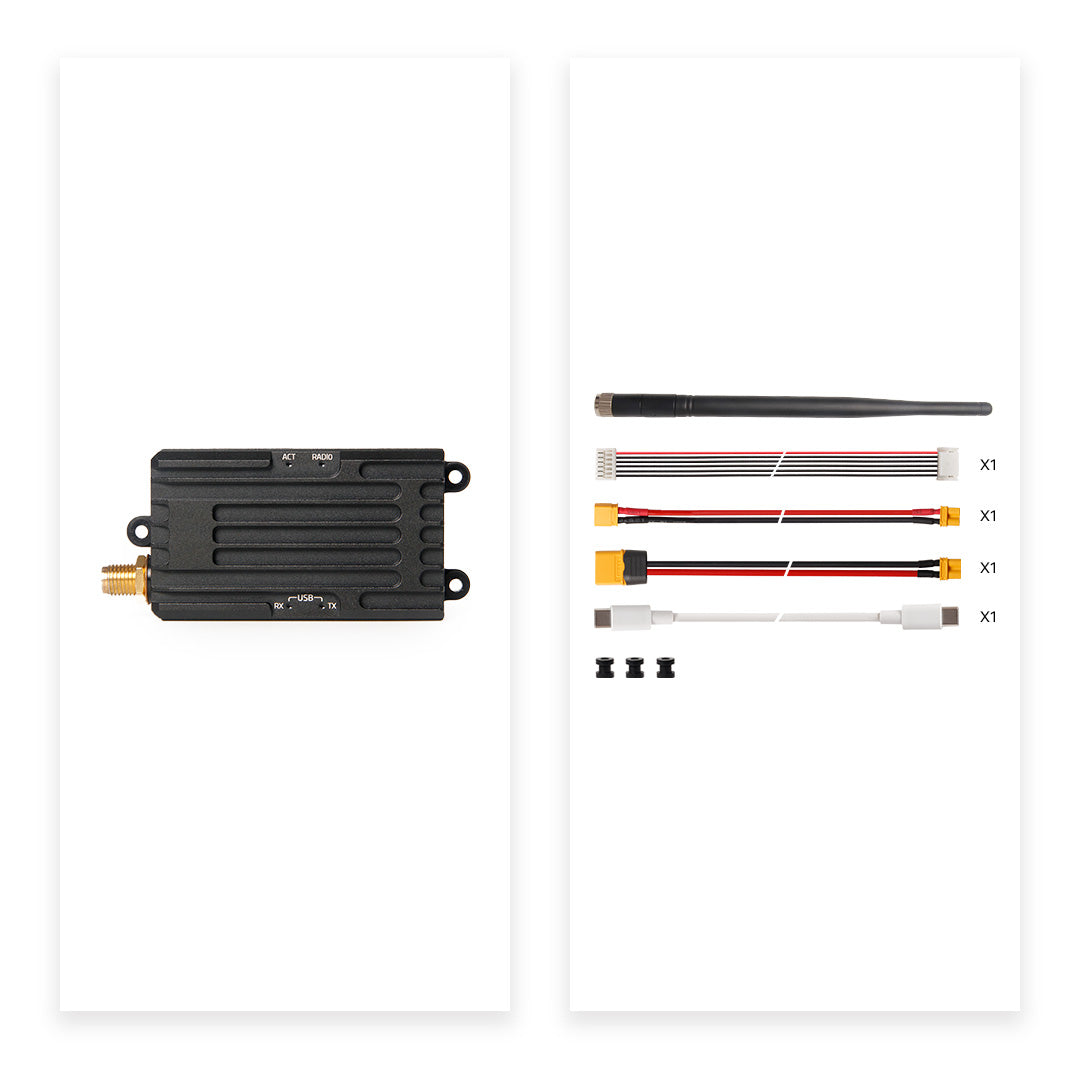

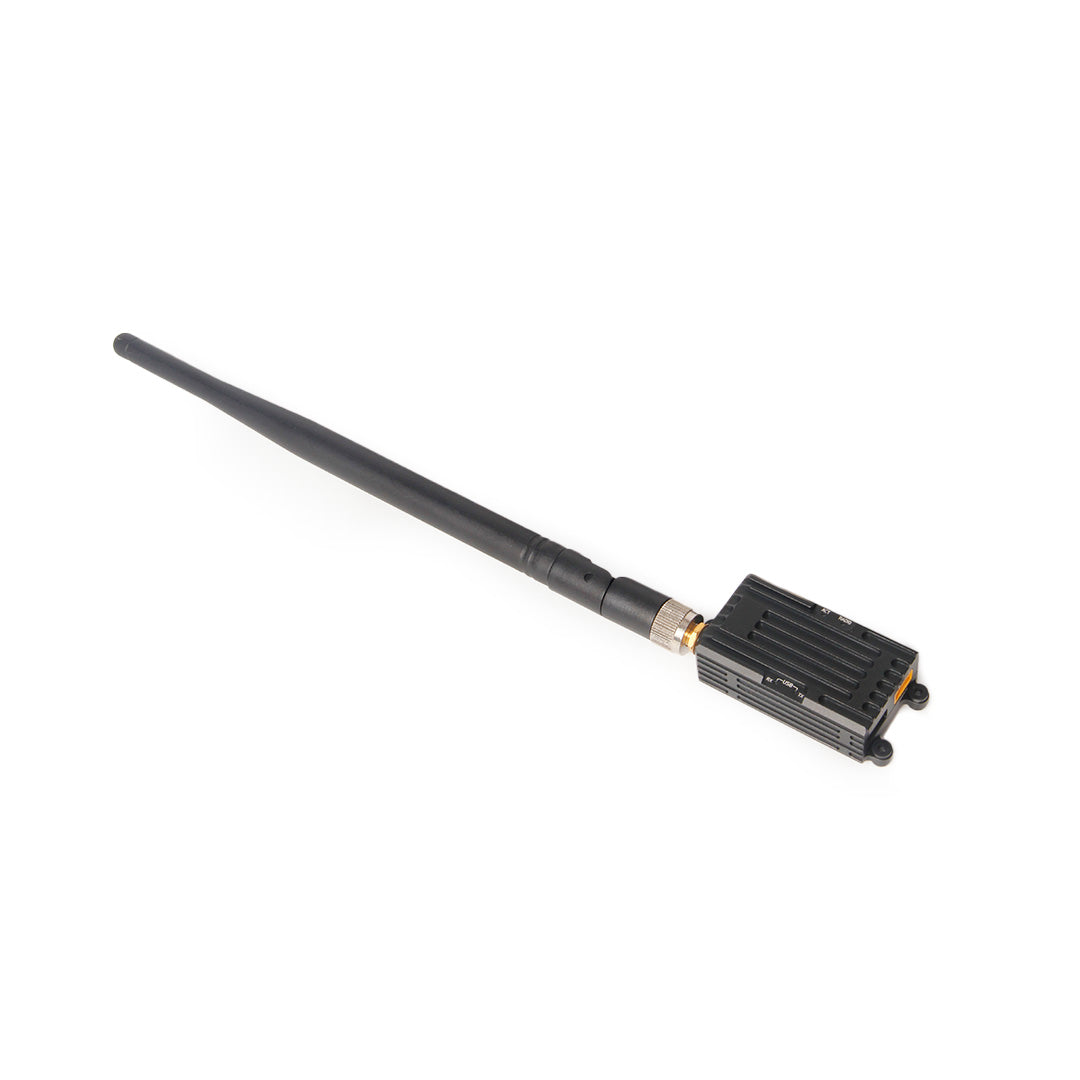

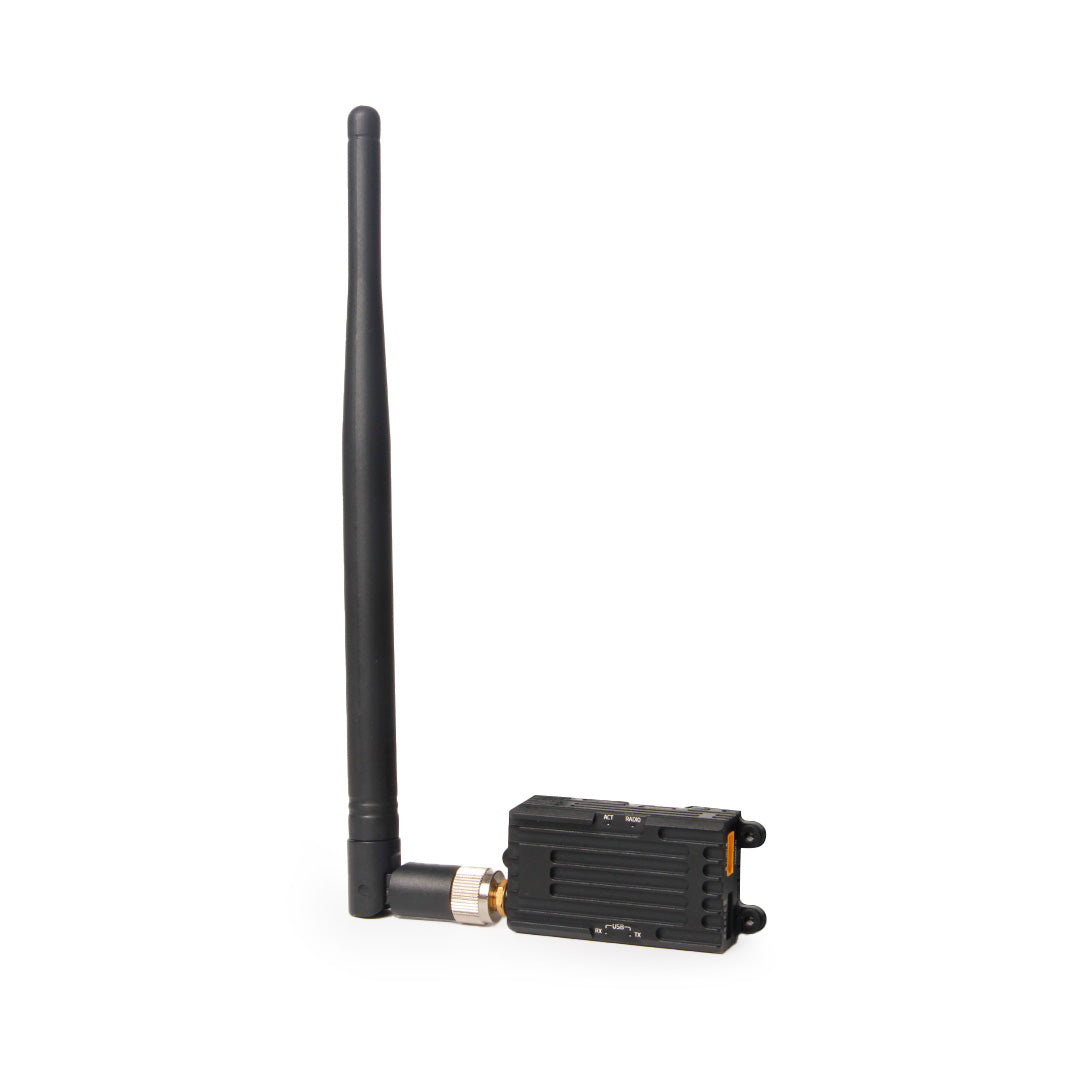

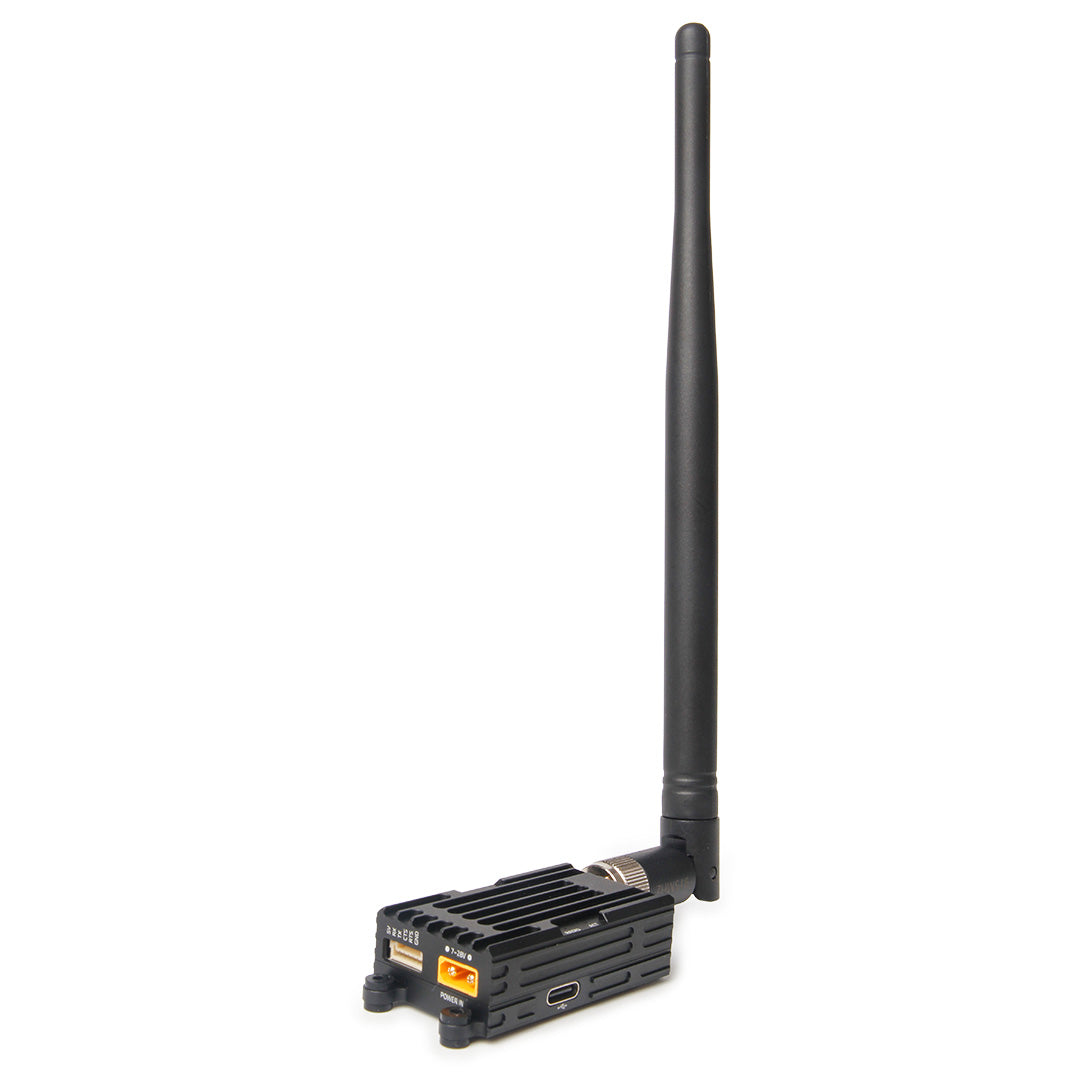

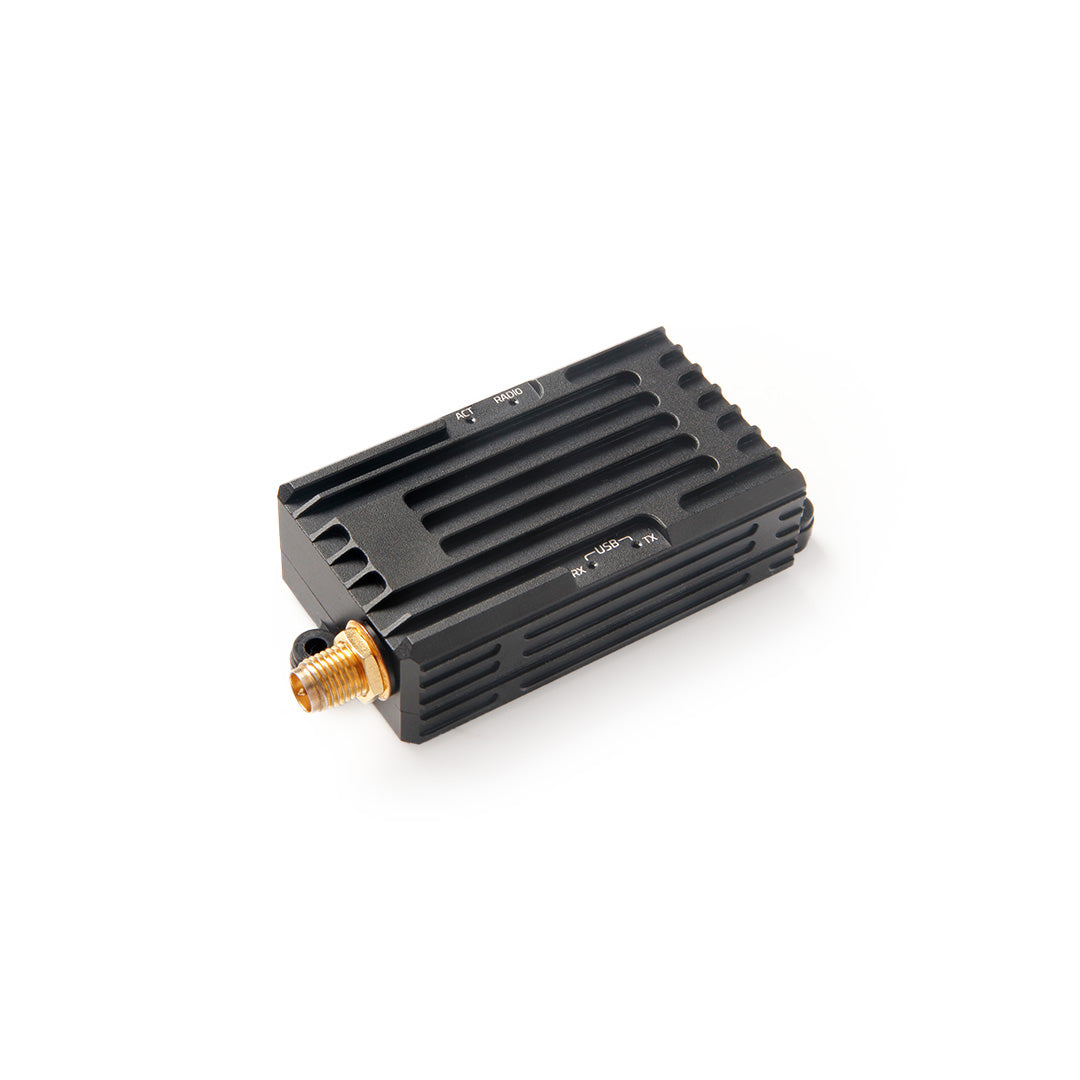

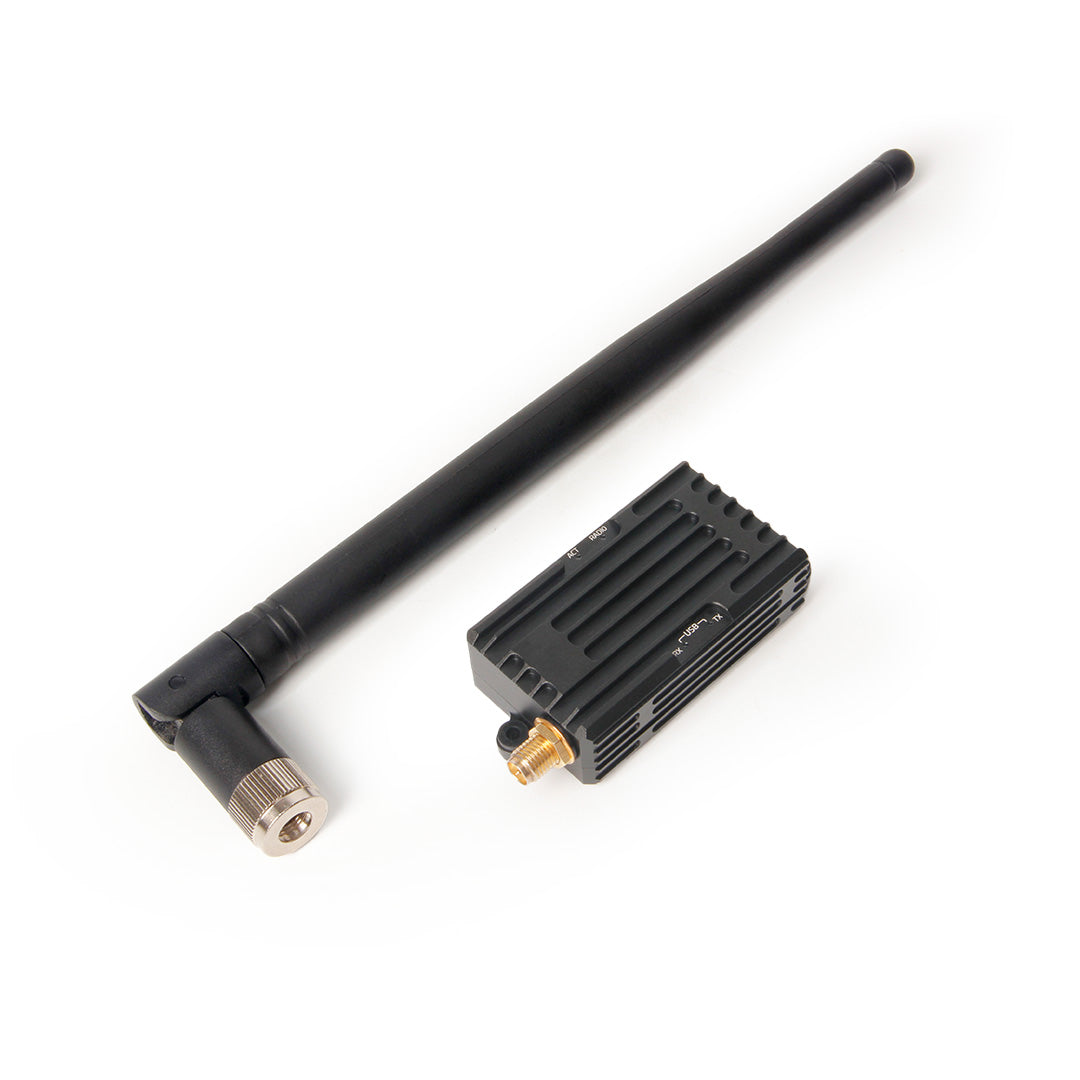

Single 1W
- 1W Radio modules with antennas *1
- High-gain omnidirectional antenna *1
- Male Type-C to male Type-C USB cable *1
- Male XT30 to female XT30 adapter cable *1
- Male XT30 to female XT60 adapter cable *1
- JST-GH-6P to JST-GH-6P cable *1 (for Pixhawk Standard FC)
- Rubber damping grommet *3
-

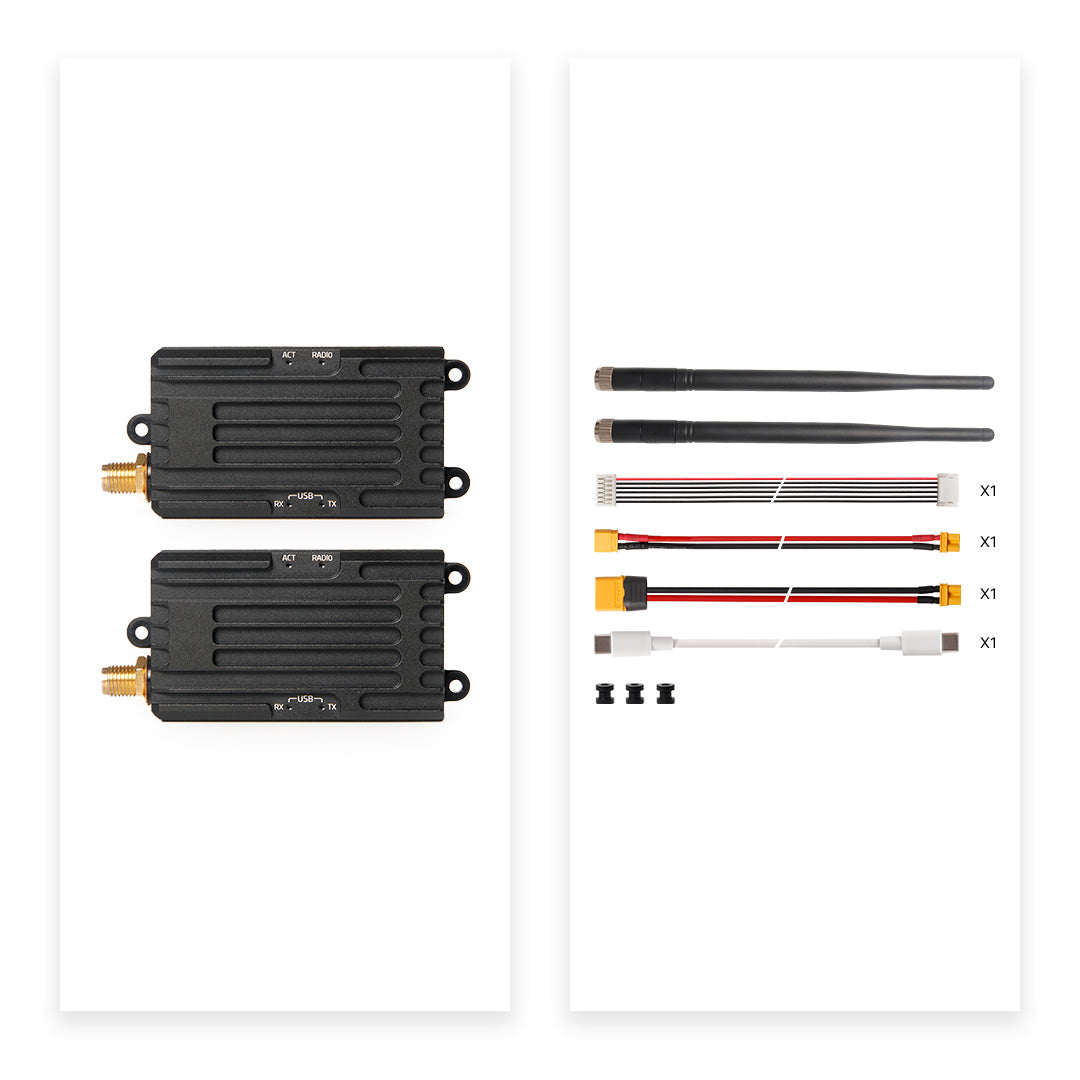

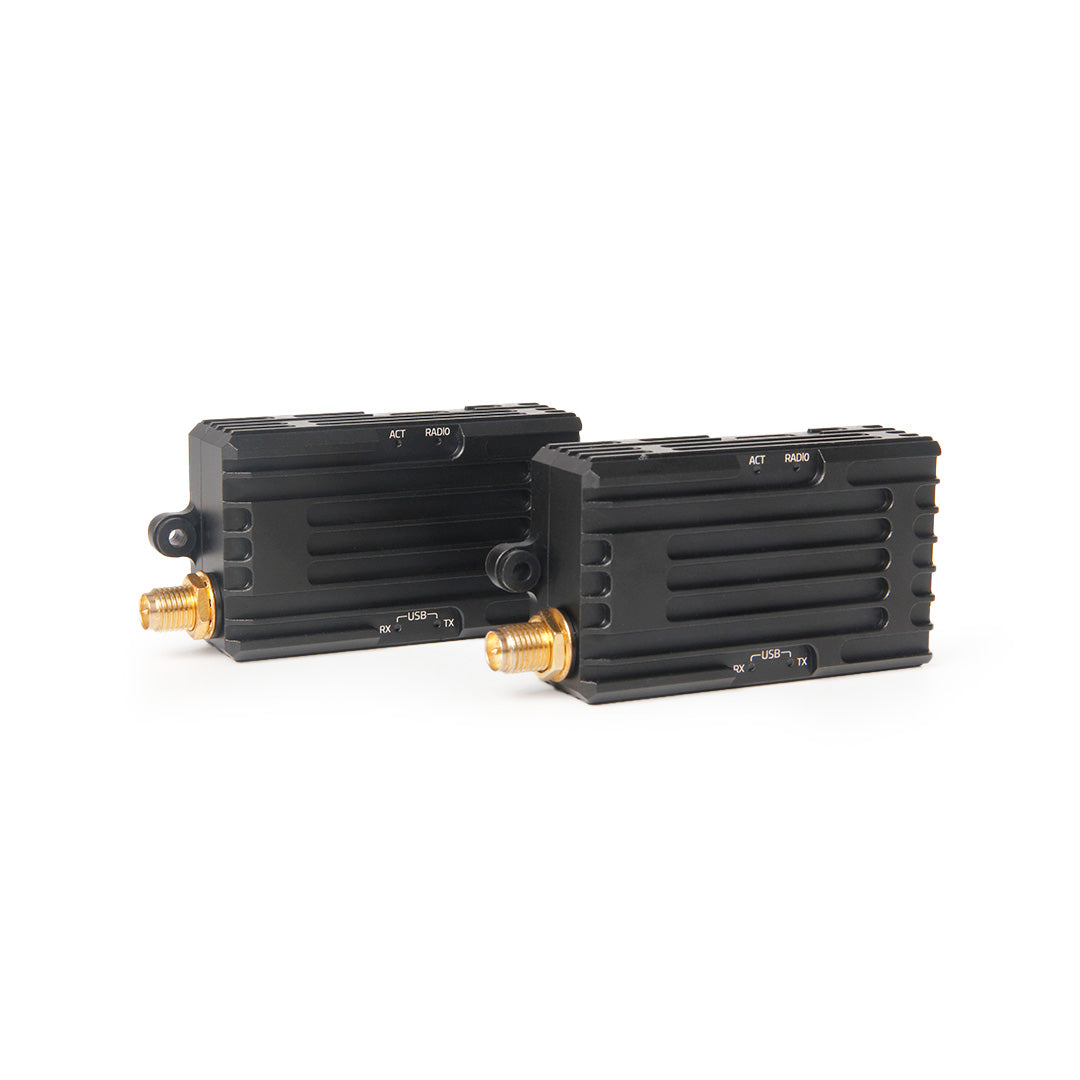

Dual 1W
- 1W Radio modules with antennas *2
- High-gain omnidirectional antenna *2
- Male Type-C to male Type-C USB cable *1
- Male XT30 to female XT30 adapter cable *1
- Male XT30 to female XT60 adapter cable *1
- JST-GH-6P to JST-GH-6P cable *1 (for Pixhawk Standard FC)
-
Rubber damping grommet *3
Manual:
Telemetry-Radio-V3-Quick-Start-Guide
Some Tips:
https://ardupilot.org/copter/docs/common-configuring-a-telemetry-radio-using-mission-planner.html
