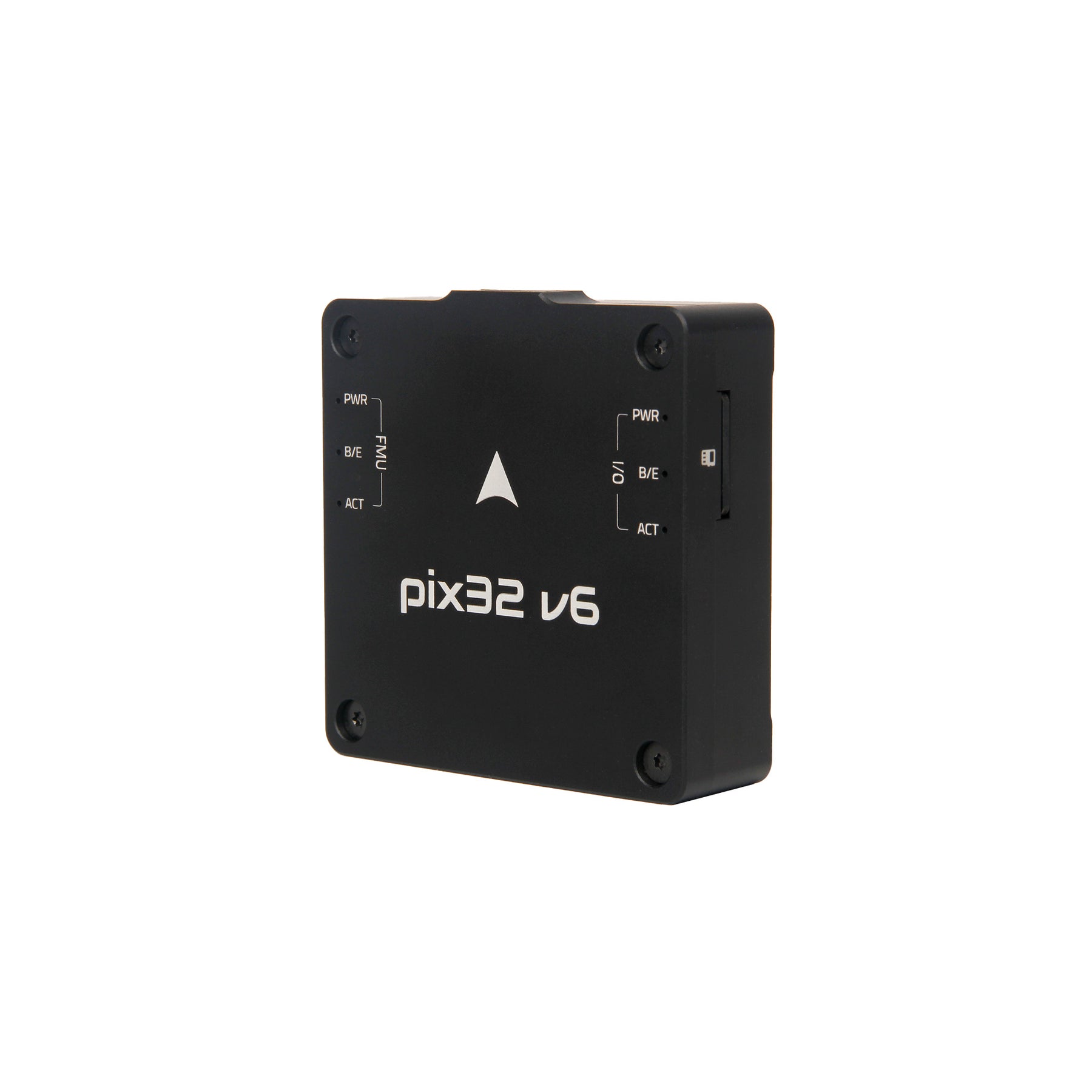

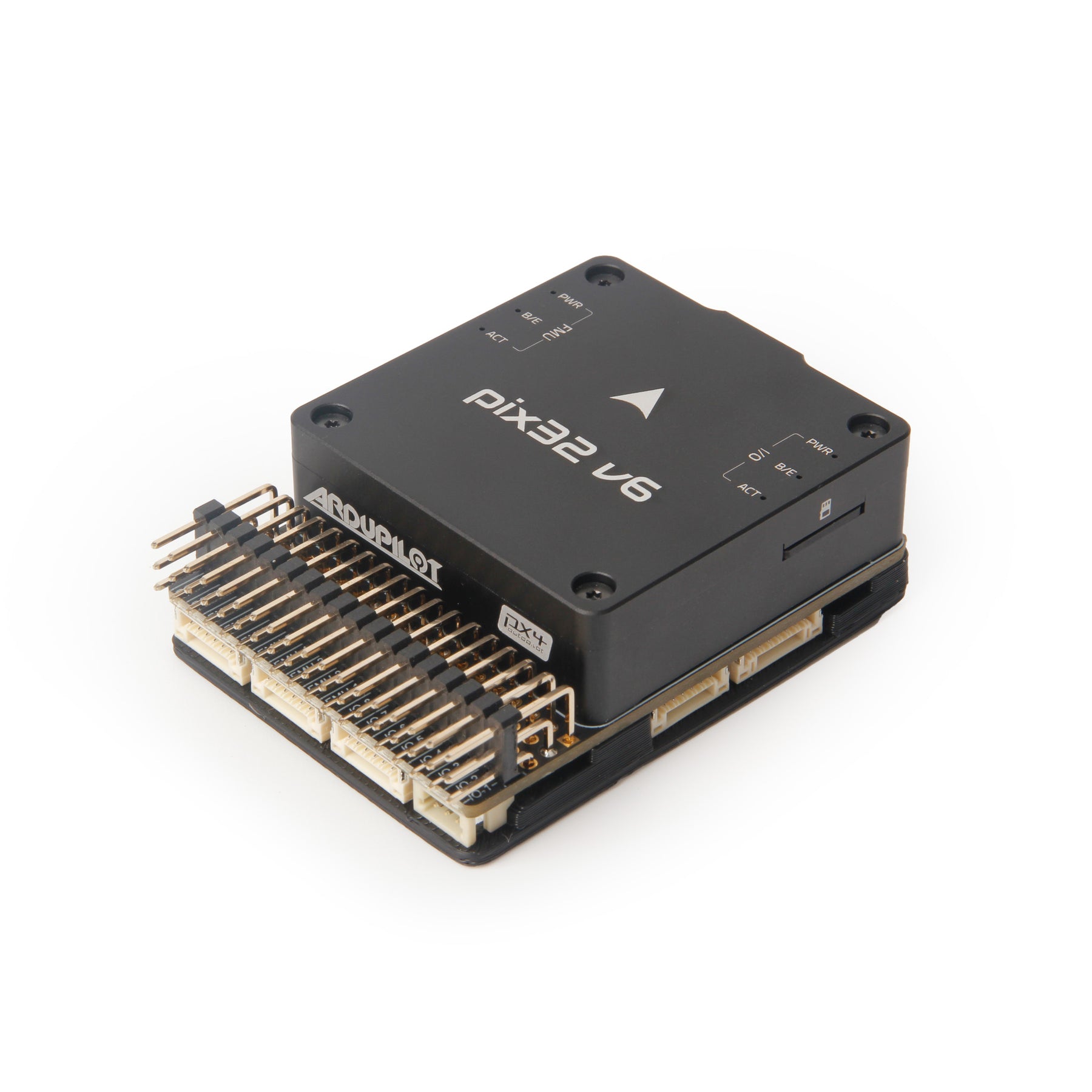

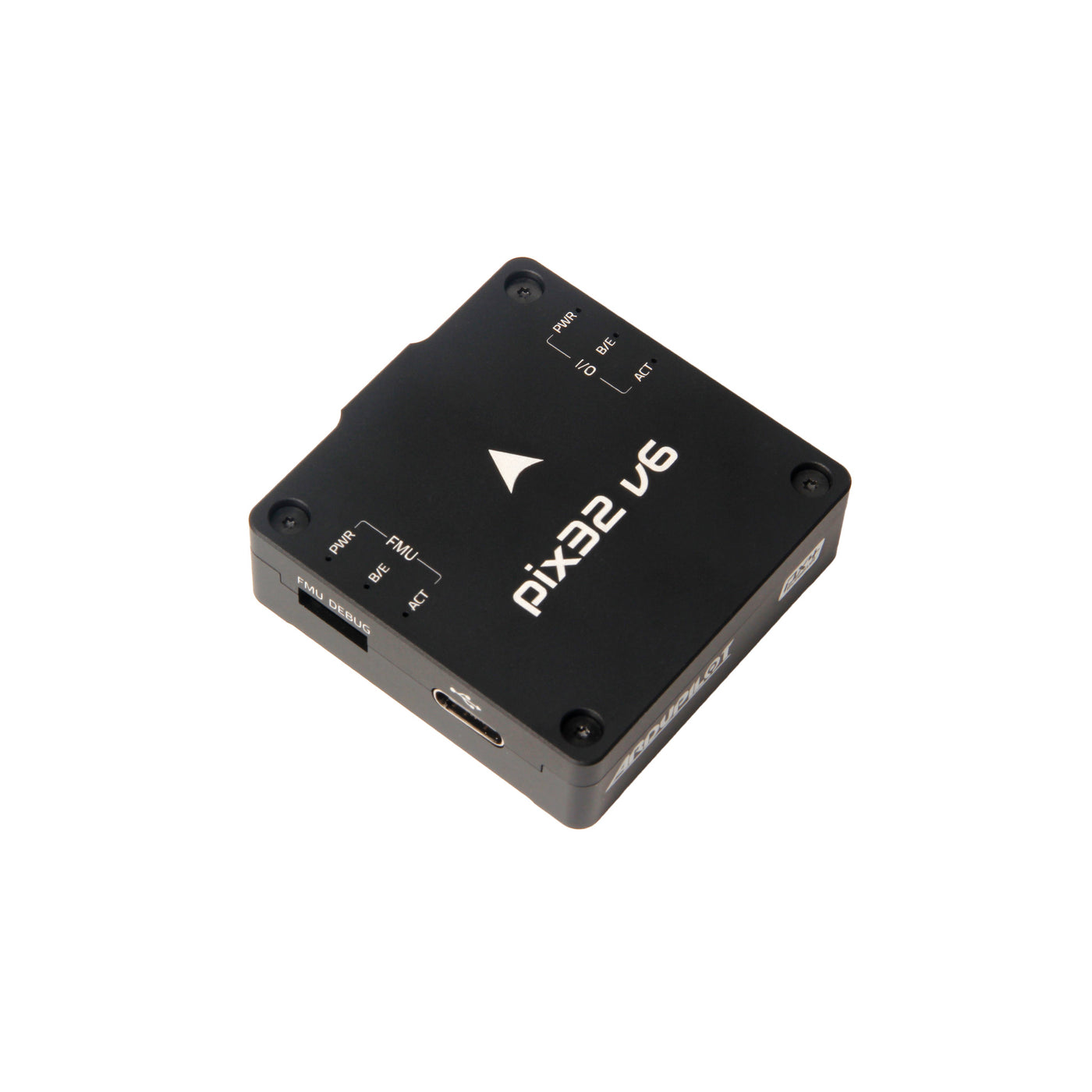

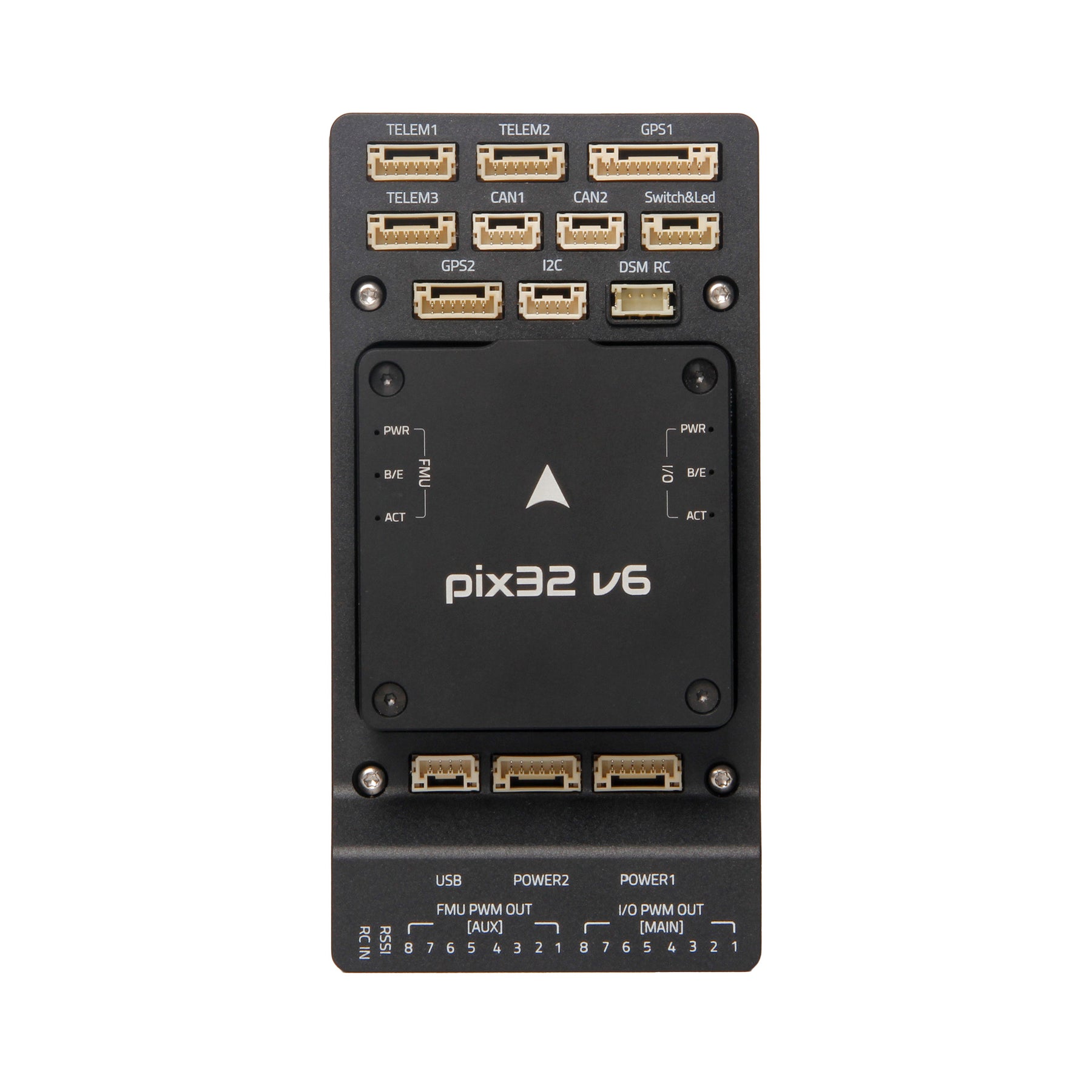

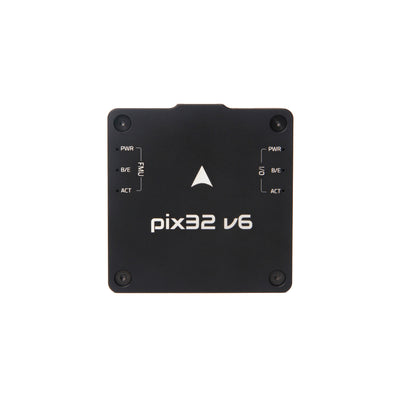

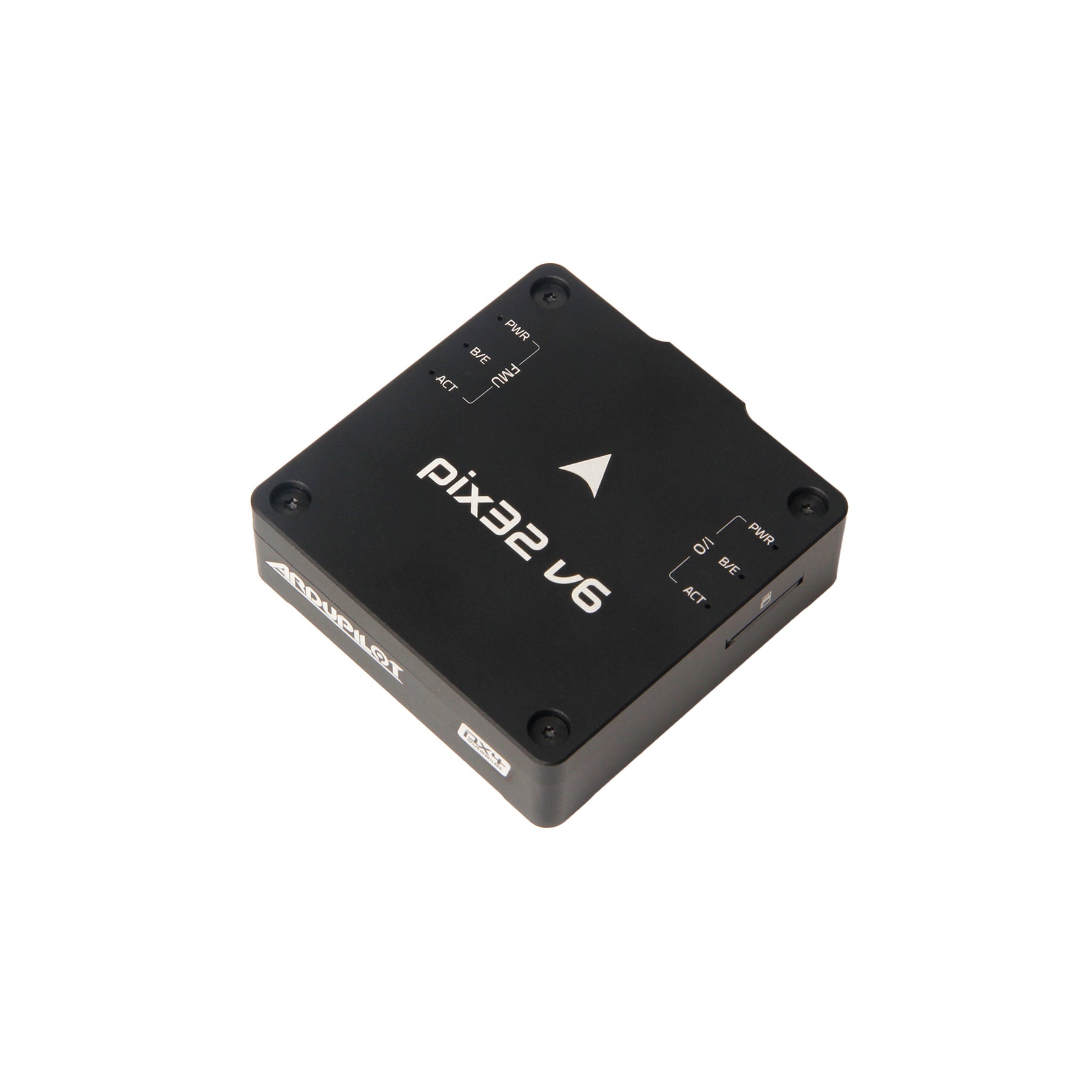

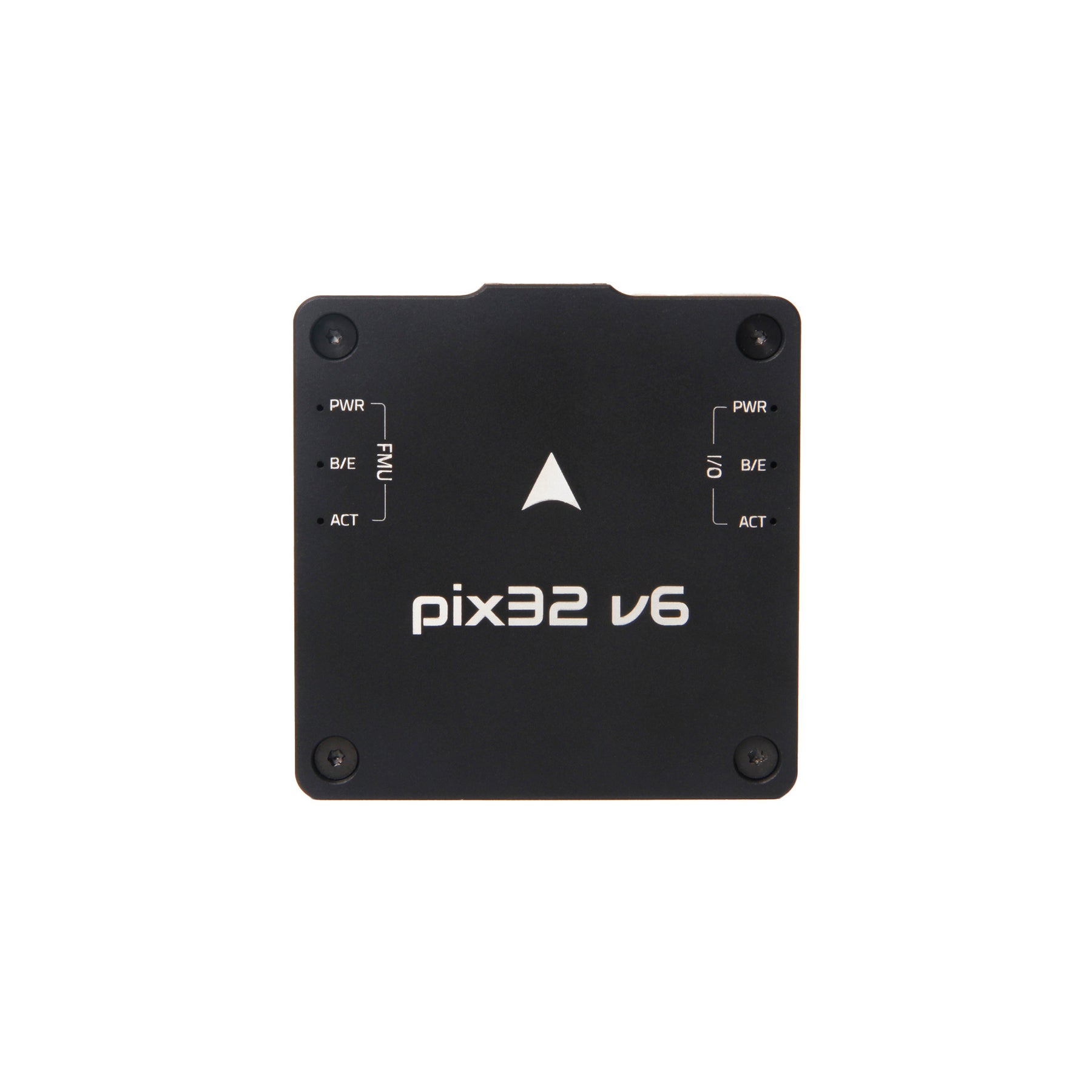

Pix32 v6

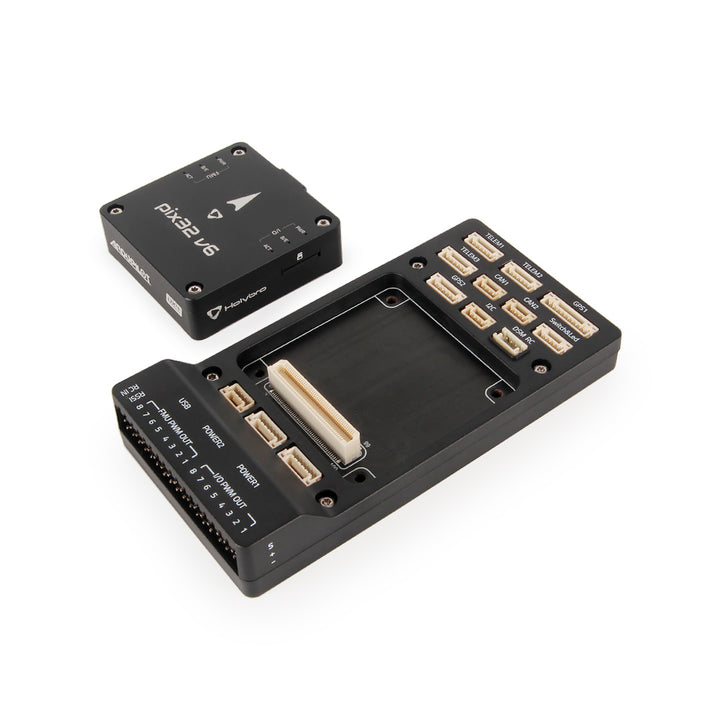

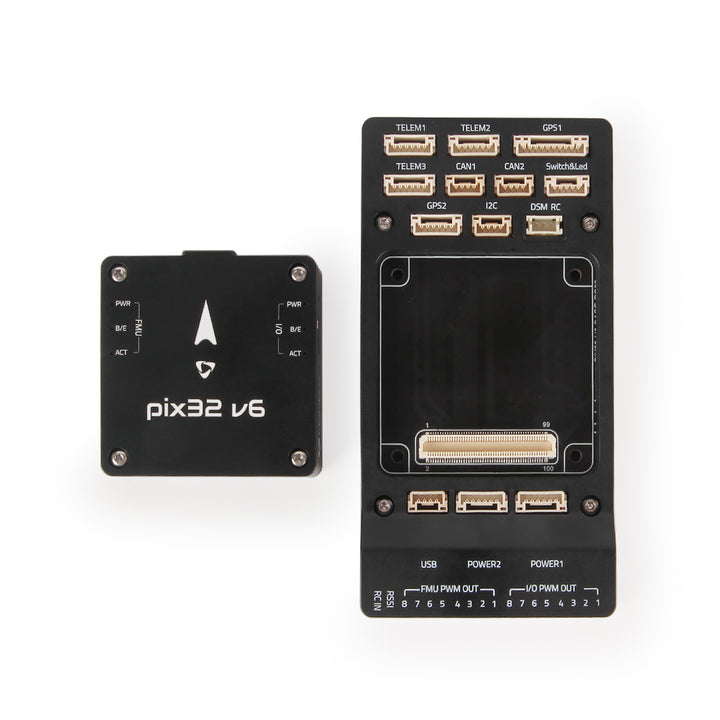

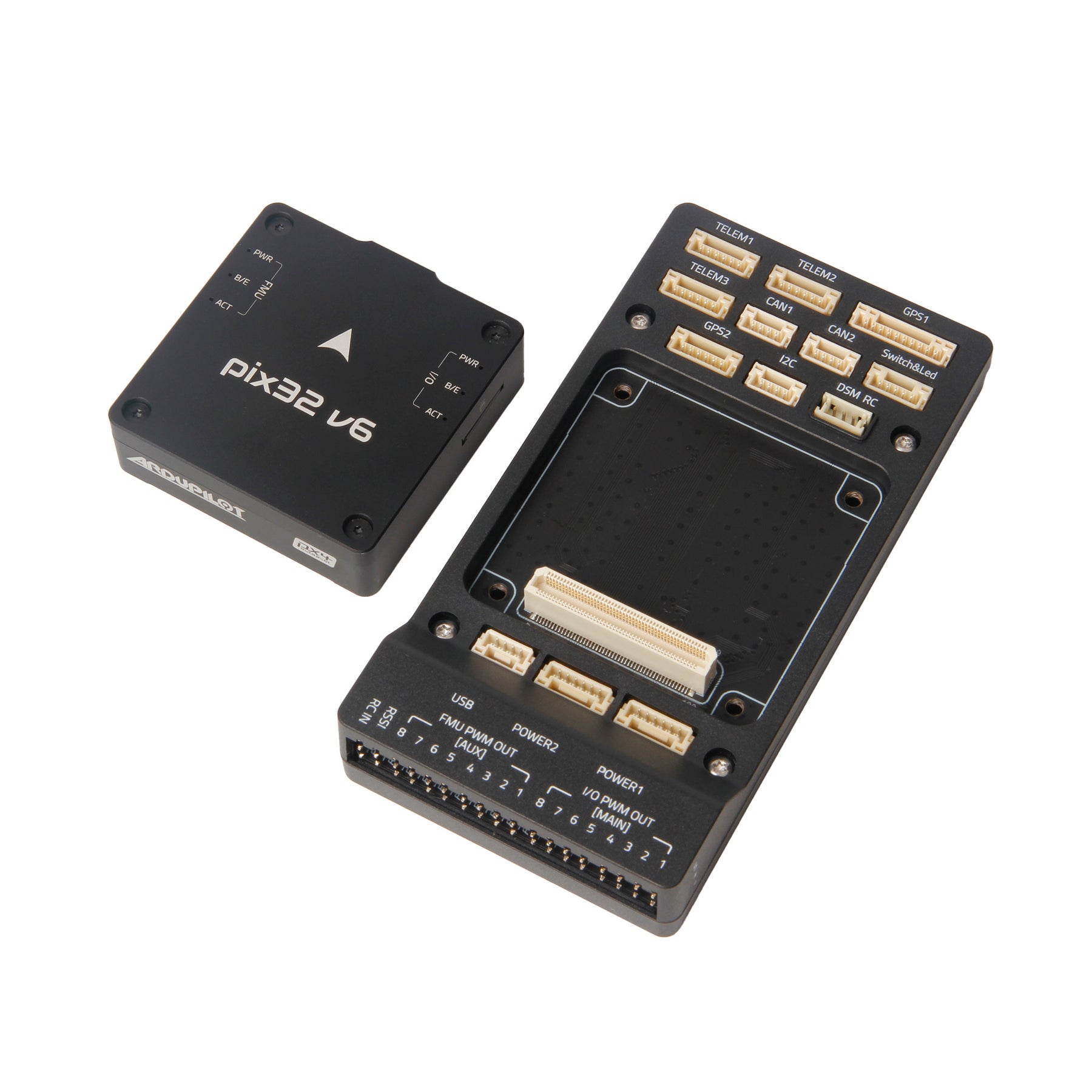

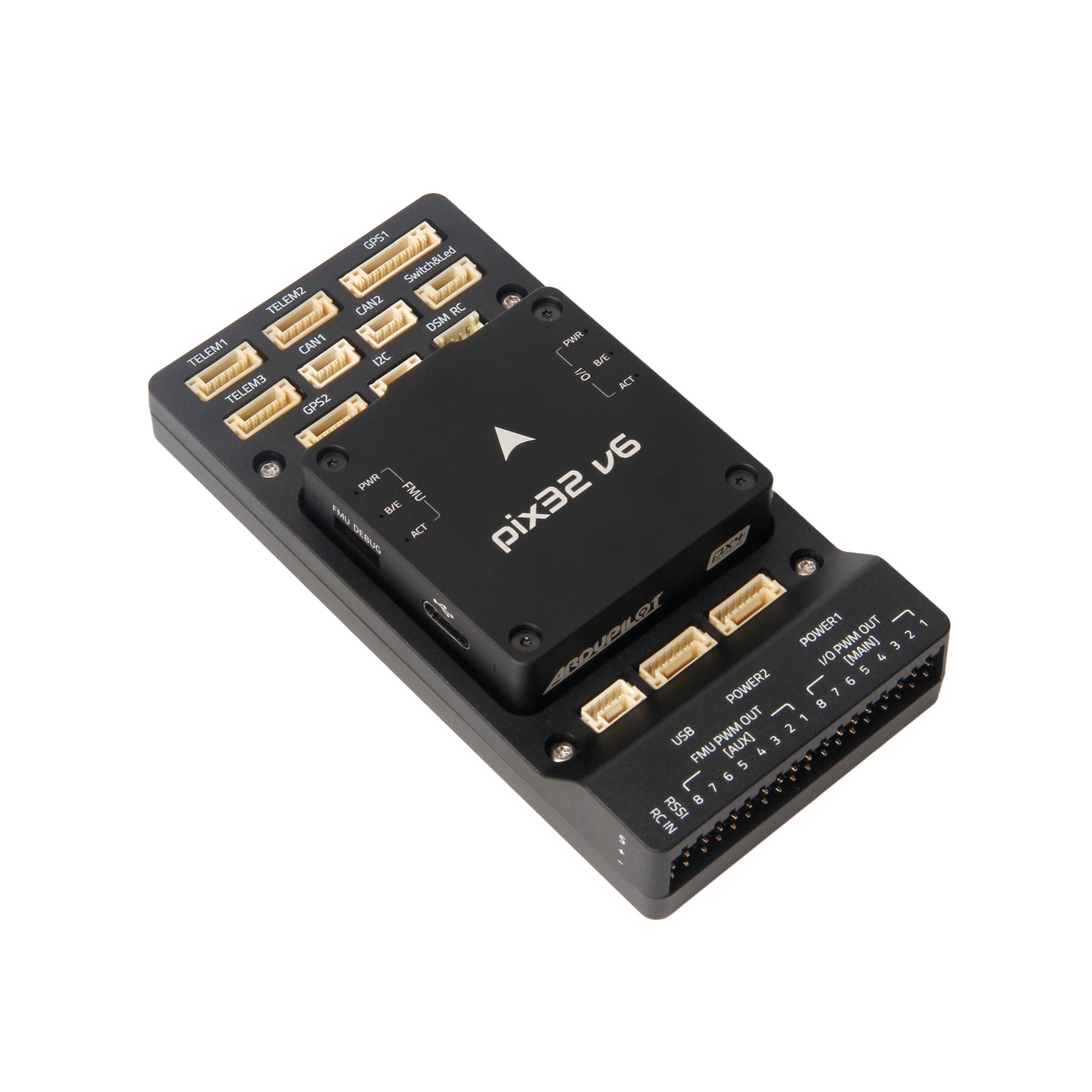

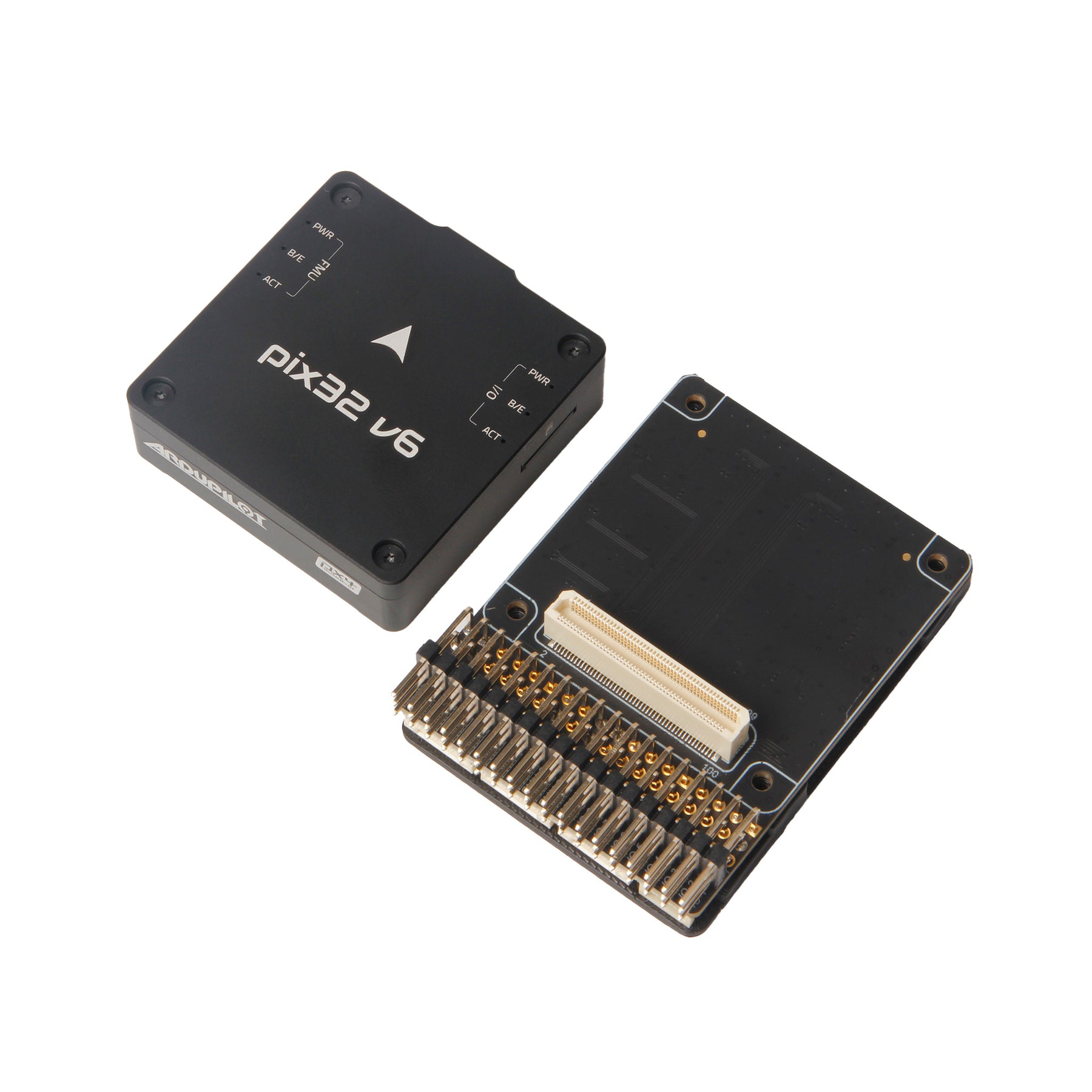

The Pix32 v6 is the latest update to the Pix32 v5 flight controllers. It is a variant of the Pixhawk 6C. It is comprised of a separate flight controller and carrier board, which are connected by a 100 pin connector. It is designed for those pilots who need a high power, flexible, and customizable flight control system.

Inside the Pix32 v6, you can find an STMicroelectronics® based STM32H743, paired with sensor technology from Bosch® & InvenSense®, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.

The Pix32 v6’s H7 microcontroller contains the Arm® Cortex®-M7 core running up to 480 MHz, has 2MB flash memory and 1MB RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models. It includes high-performance, low-noise IMUs on board, designed to be cost effective while having IMU redundancy. A vibration isolation System to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances.

This flight controller is perfect for people that is looking for an affordable and modular flight controller that can use a customized baseboard. We have made the Pix32 v6 base board schematics public. The user can either make a custom carrier board themselves or just let us help them with it. By using a customized baseboard, you can make sure that the physical size, pinouts, and power distribution requirements match your vehicle perfectly, ensuring that you have all the connections you need and none of the expense and bulk of connectors you don’t.

Key Design Points:

• High performance STM32H743 Processor with more computing power & RAM
• New cost-effective design with low-profile form factor
• Newly designed integrated vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings
• IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs

Note:

• Power module comparison chart

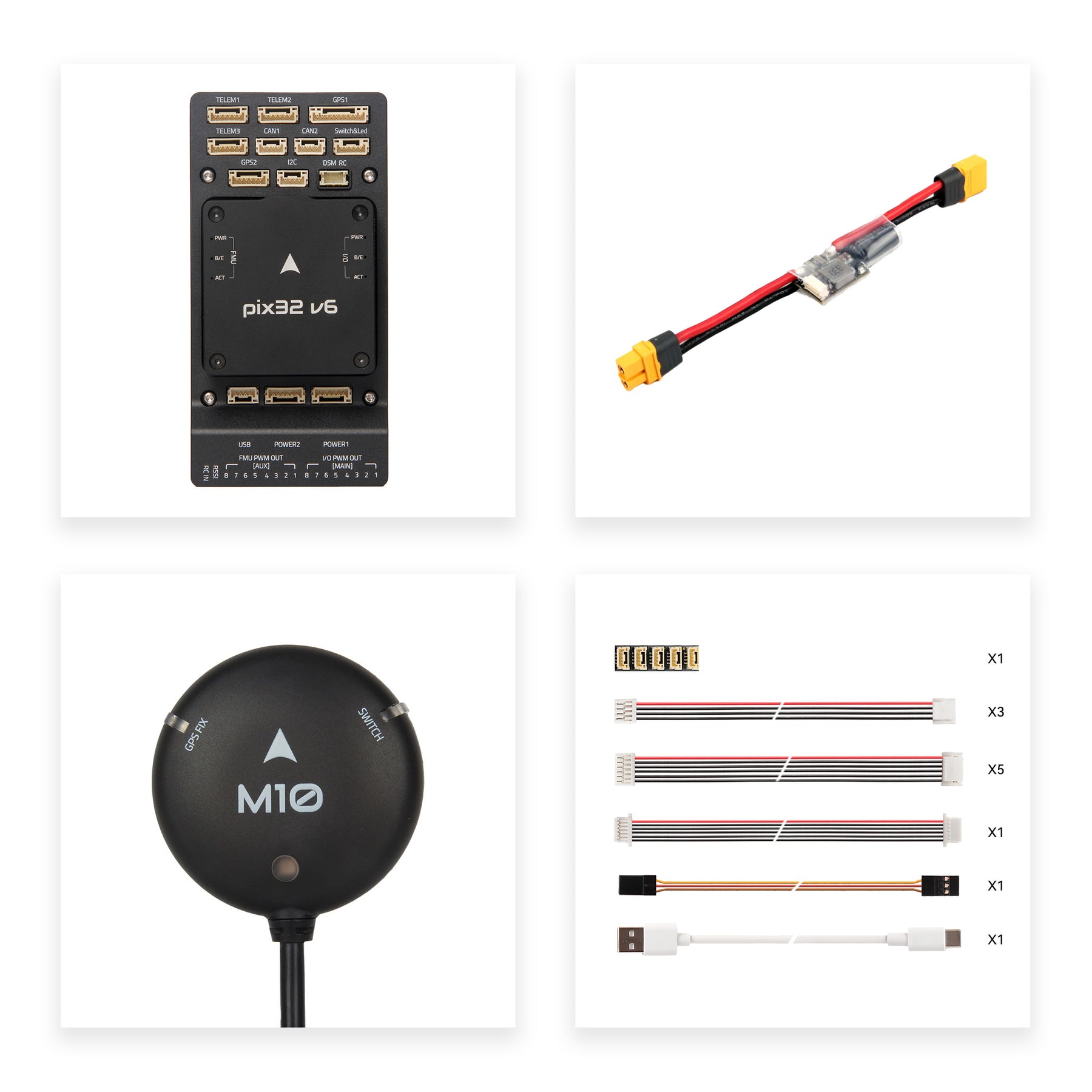

• M10 GPS requires PX4 1.14, ArduPilot 4.3 or newer. (As of Sept 7th 2023, PX4 has released 1.14 RC1 (release candidate). Please check this link for the latest release details. More details on how to flash the RC release can be found here.)

Specifications

• FMU Processor: STM32H743
  • 32 Bit Arm® Cortex®-M7, 480MHz, 2MB memory, 1MB SRAM
• IO Processor: STM32F103
  • 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM
• On-board sensors
  •  Accel/Gyro: ICM-42688-P
  • Accel/Gyro: BMI088 or BMI055
  • Mag: IST8310
  • Barometer: MS5611
• Voltage Ratings:
  • Max input voltage: 6V
  • USB Power Input: 4.75~5.25V
  • Servo Rail Input: 0~36V
• Current Ratings:
  • Telem1 Max output current limiter: 1.5A
  • All other port combined output current limiter: 1.5A

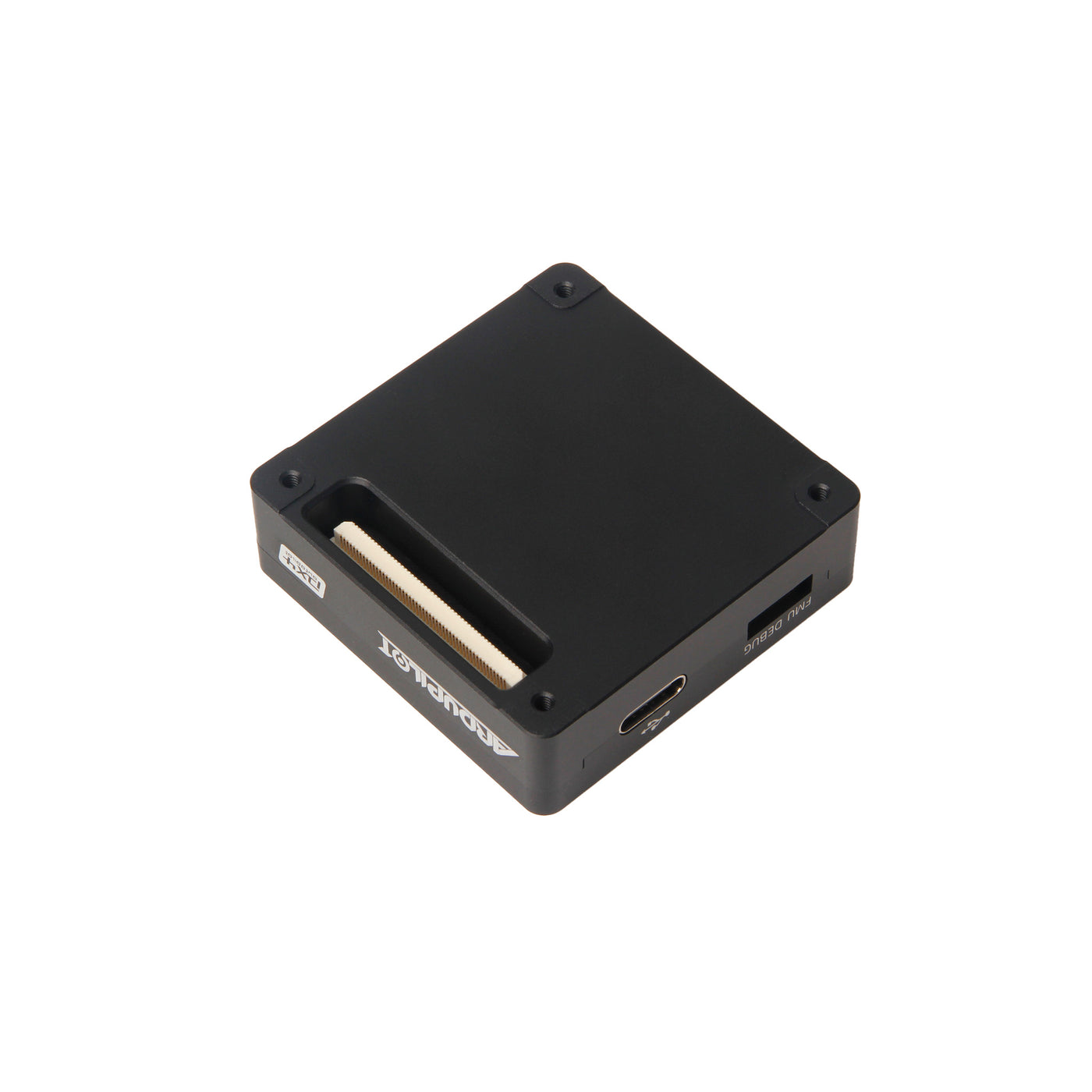

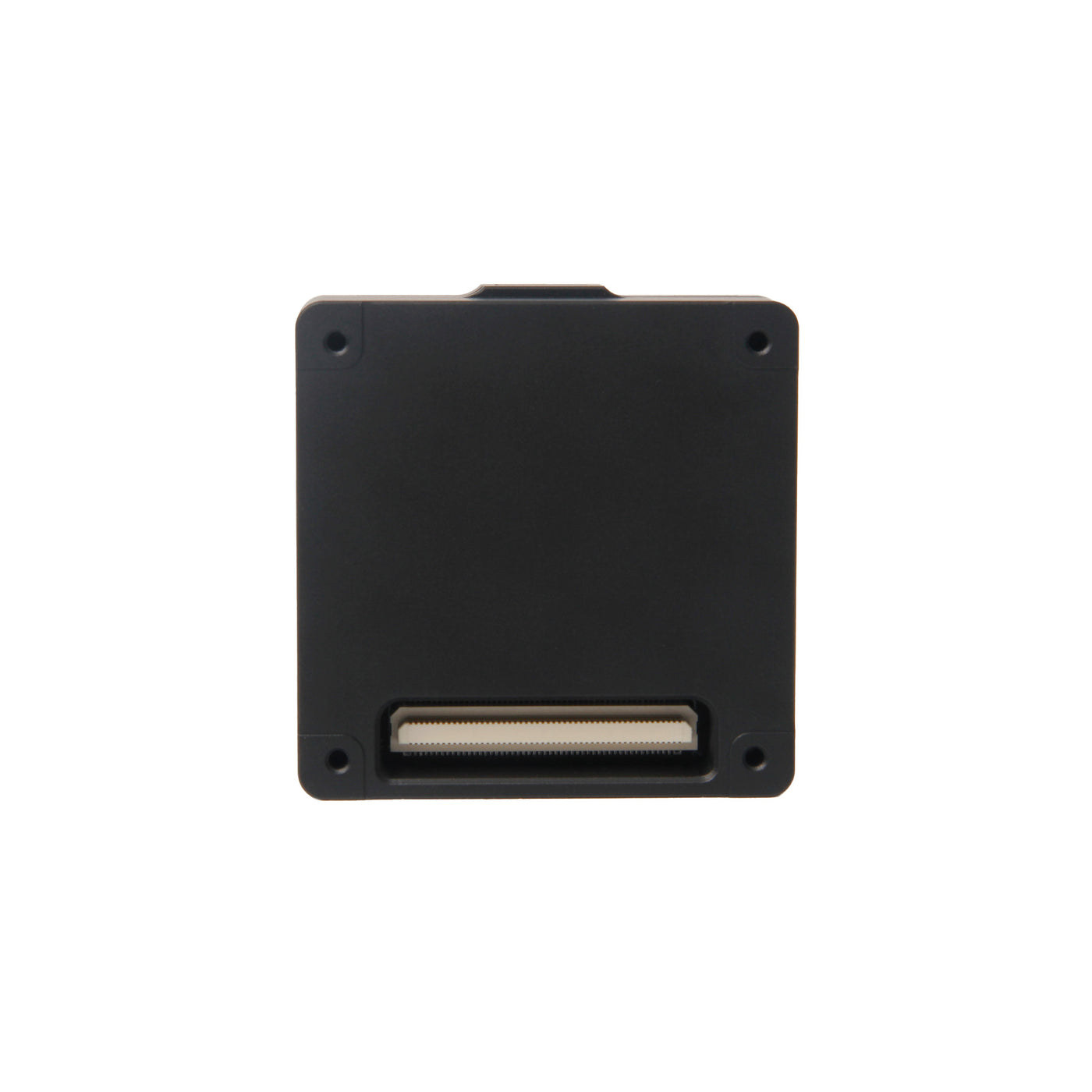

• FC Module Connector Type: Panasonic-AXK5S-6S
• Dimensions: 44.8 * 44.8 * 13.5mm

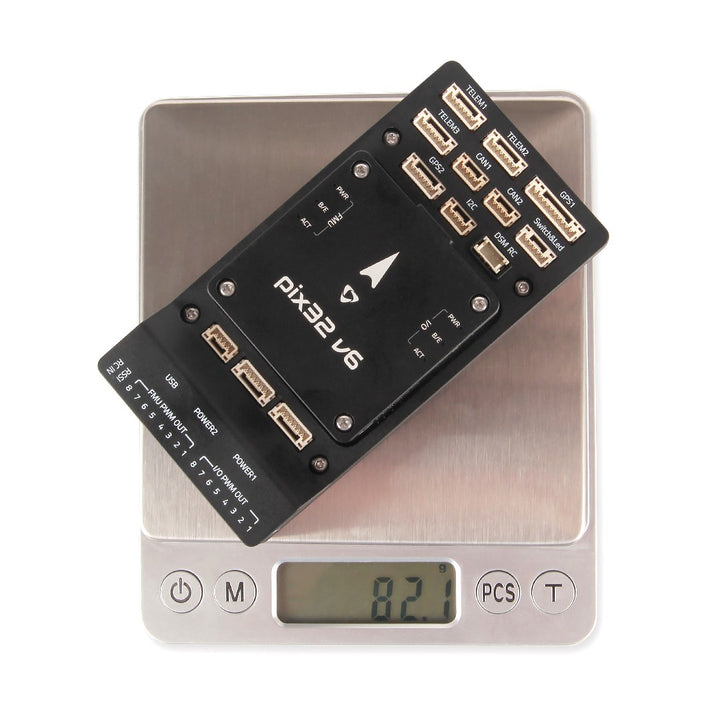

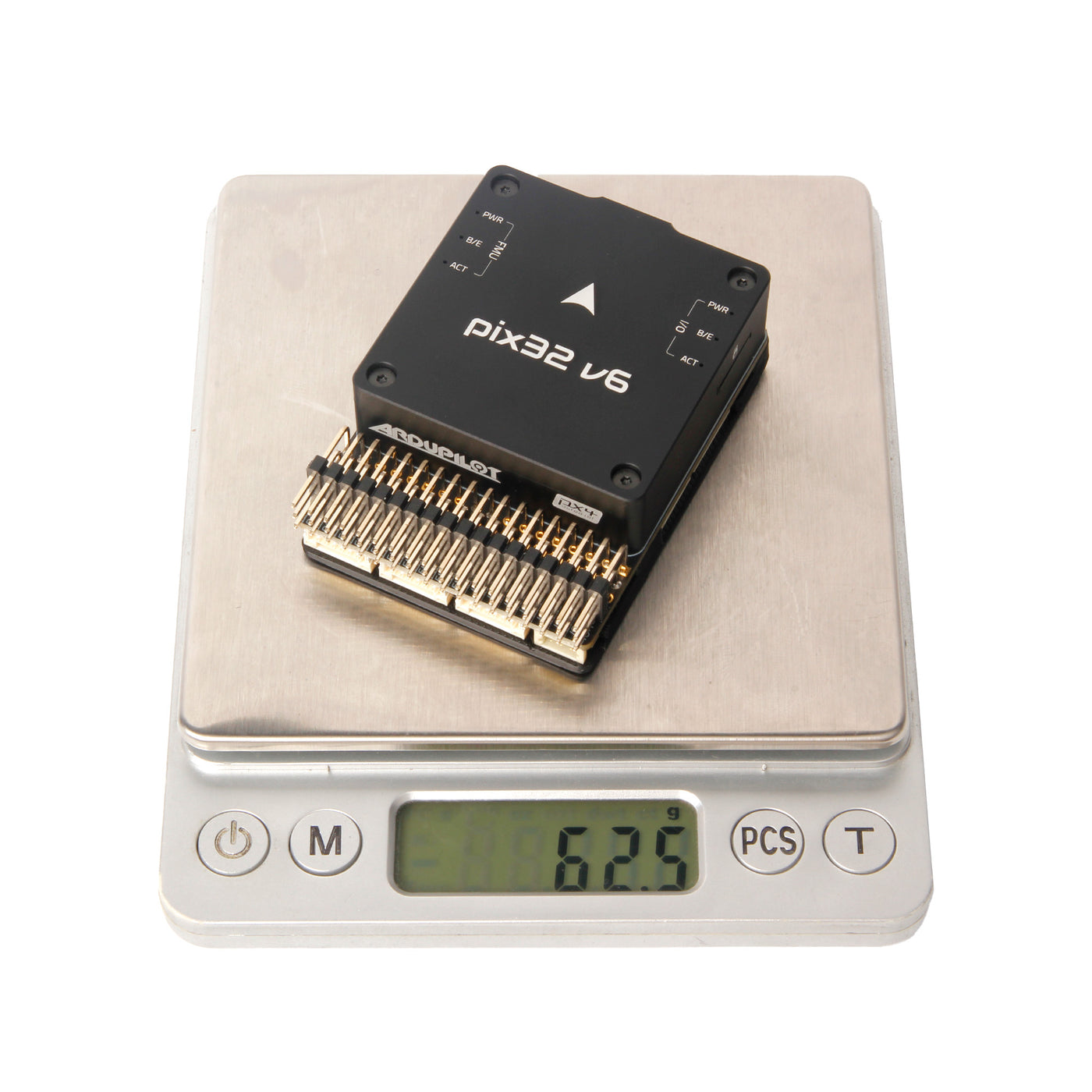

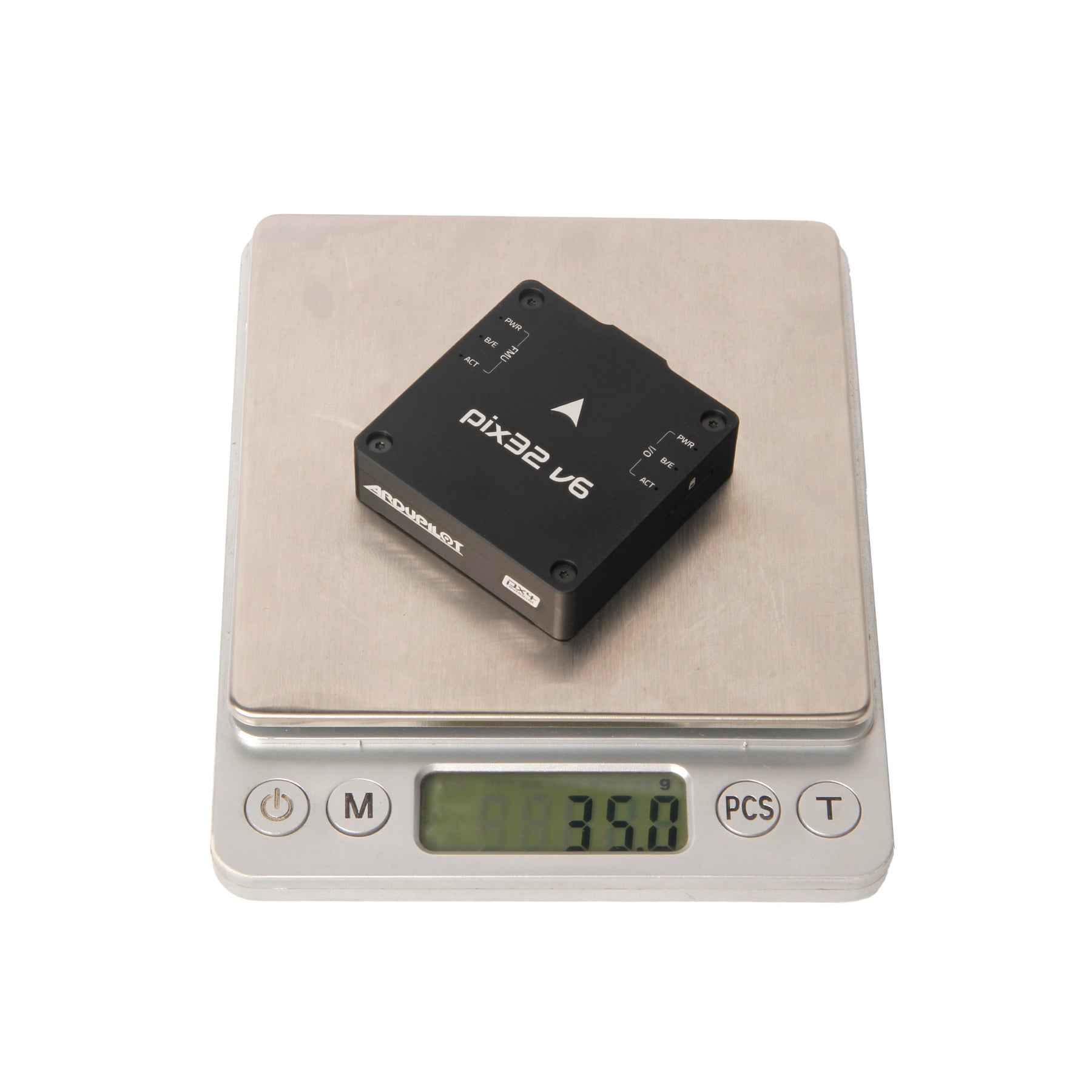

• Weight: 36g

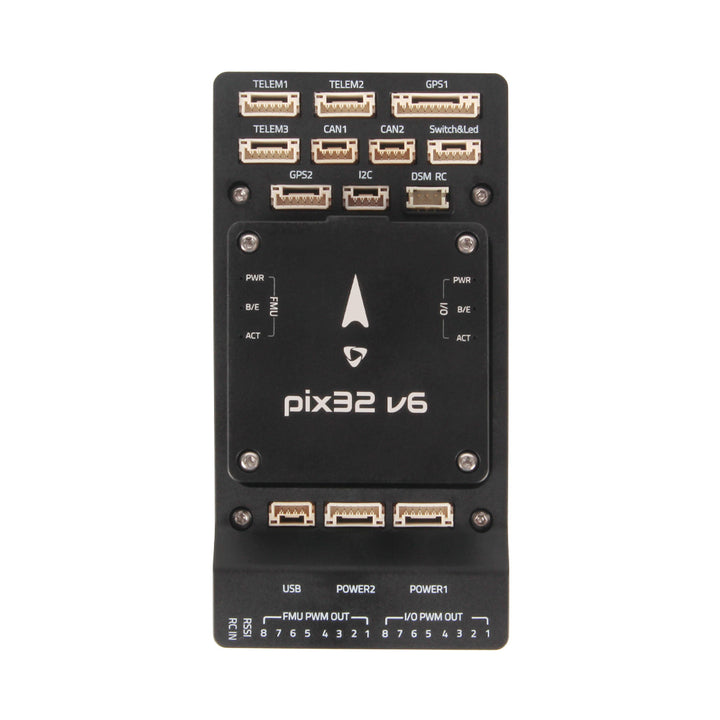

Interfaces

• 16- PWM servo outputs (8 from IO, 8 from FMU)
• 3 general purpose serial ports
• Telem1 - Full flow control, separate 1.5A current limit
• Telem2 - Full flow control
• Telem3
• 2 GPS ports
  • GPS1 - Full GPS port (GPS plus safety switch)
  • GPS2 - Basic GPS port
• 1 I2C port
  • Supports dedicated I2C calibration EEPROM located on sensor module
• 2 CAN Buses
•     2 Debug port
  • FMU Debug
  • I/O Debug
• Dedicated R/C input for Spektrum / DSM and S.BUS, CPPM, analog / PWM RSSI
• Dedicated S.BUS output
• 2 Power input ports (Analog)

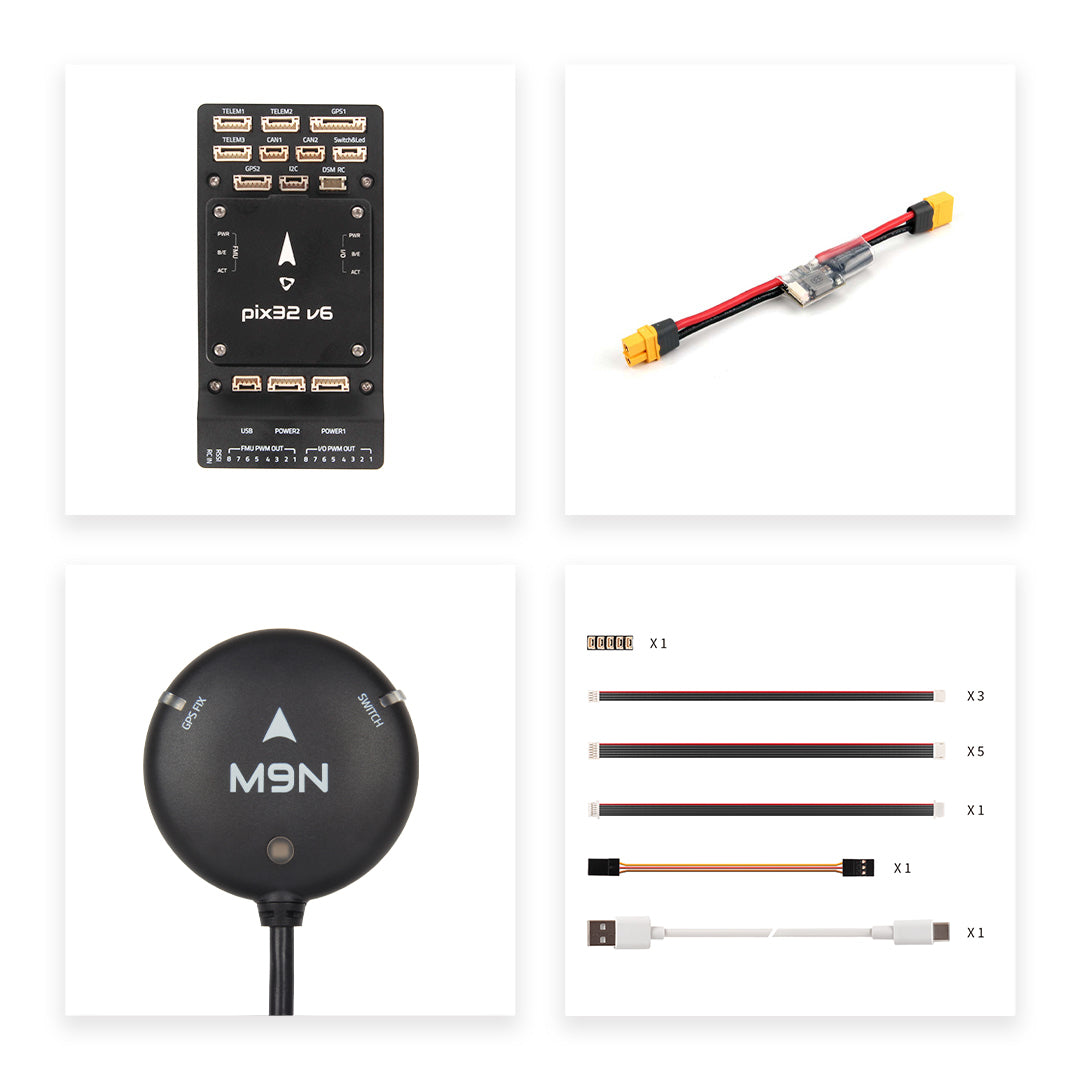

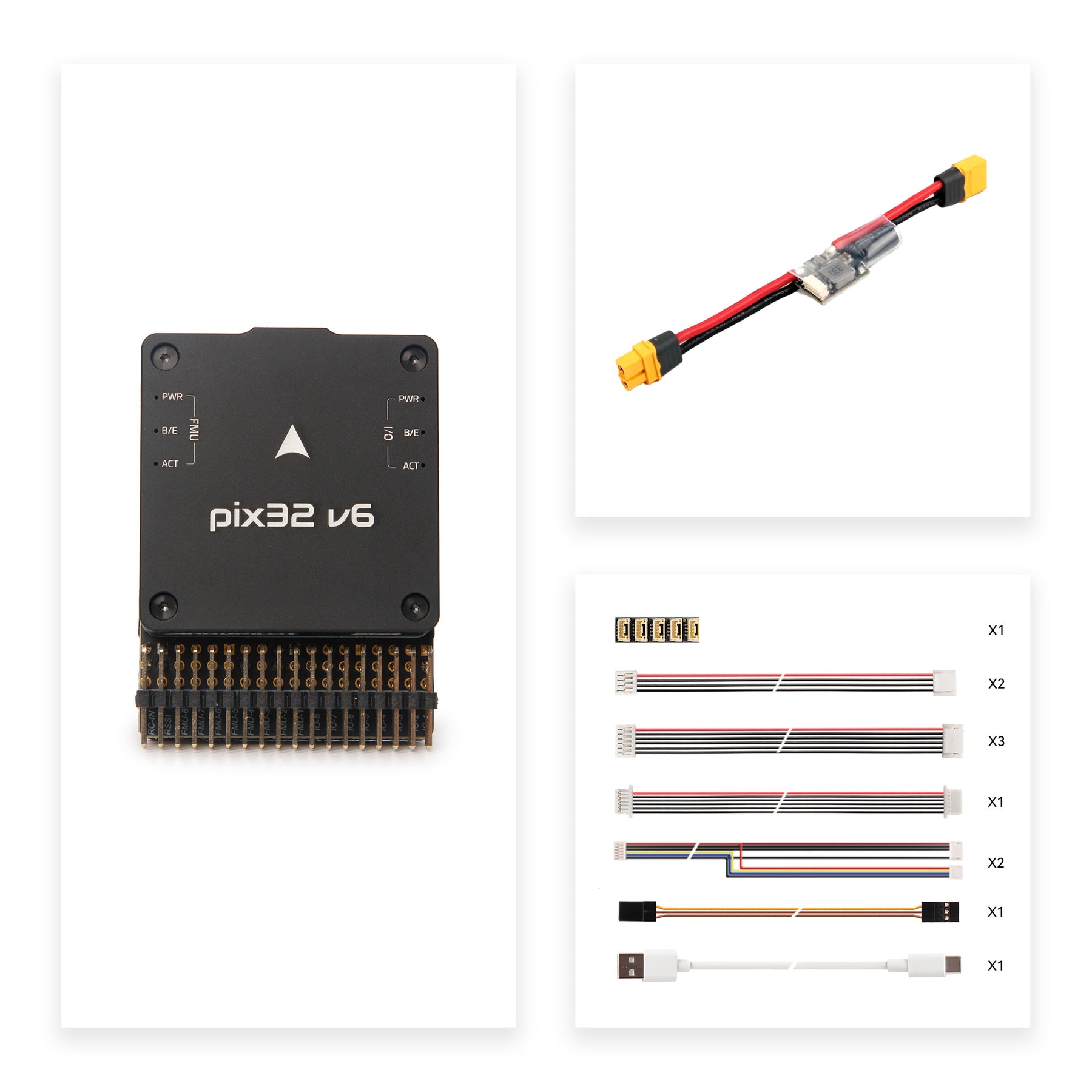

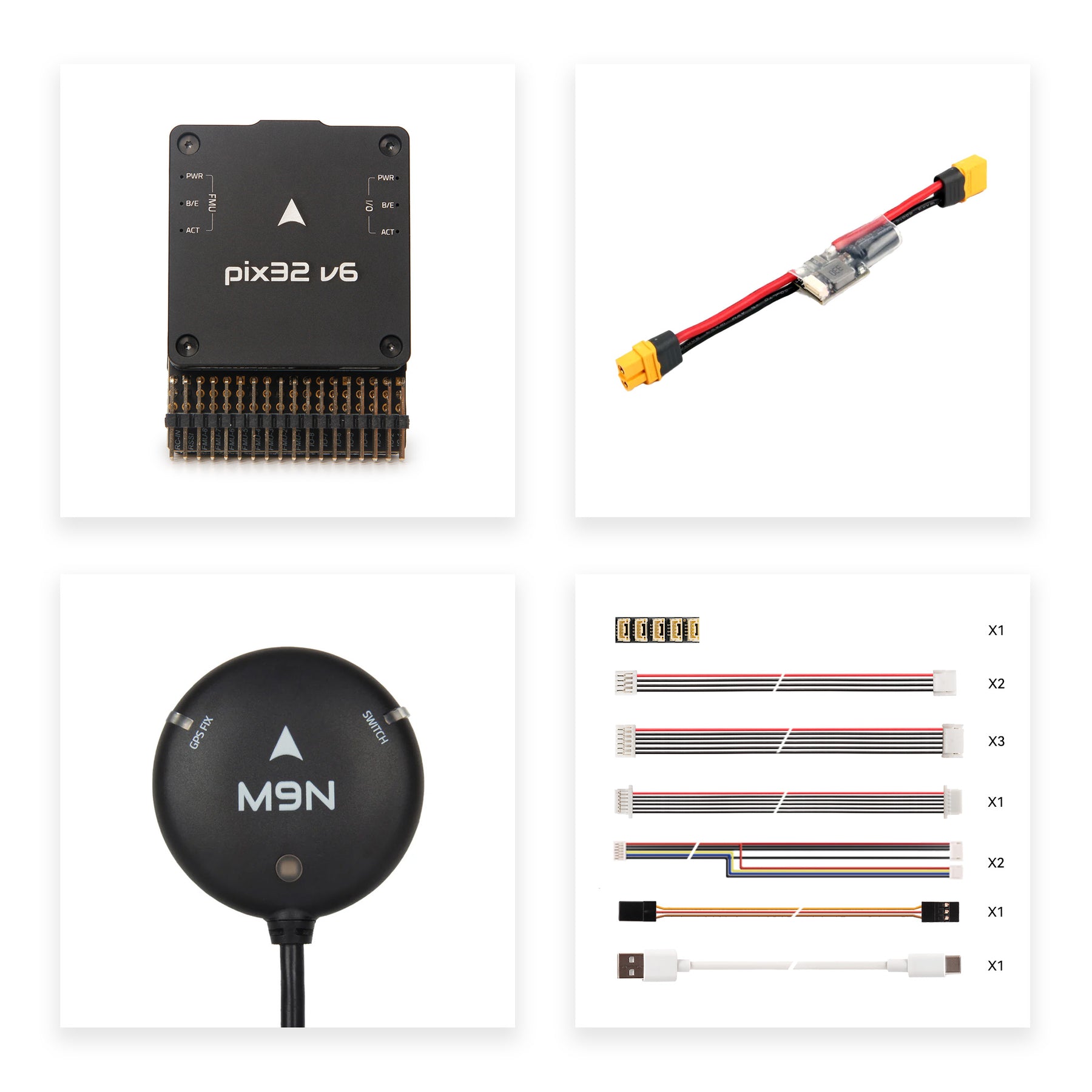

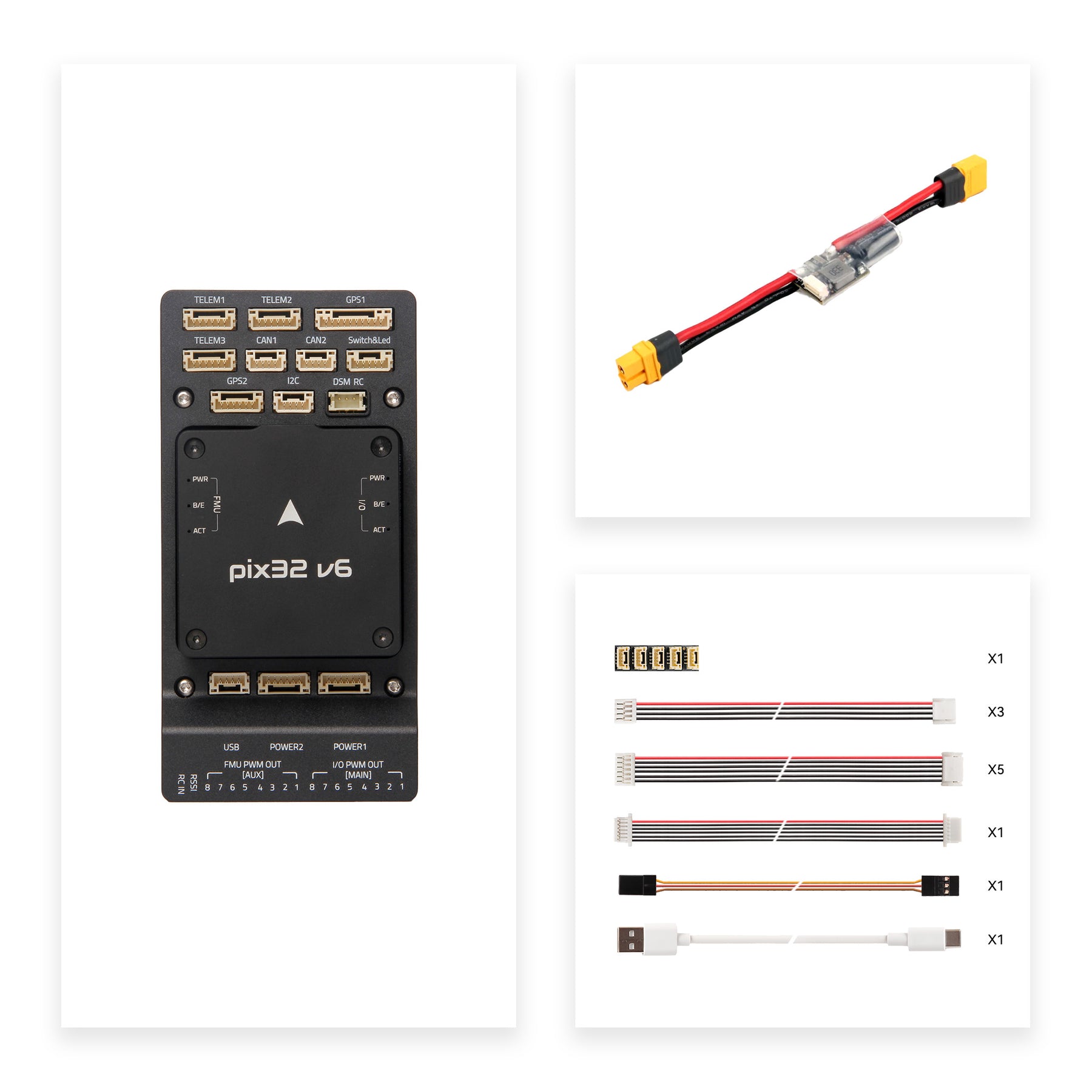

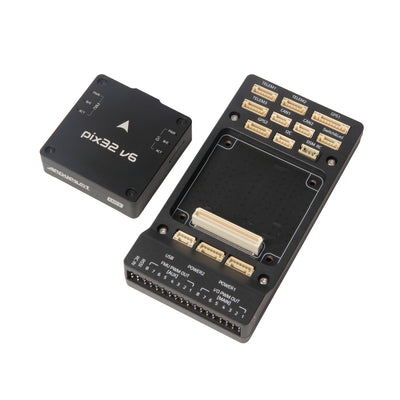

Controller + Power Module + Baseboard Set Includes:

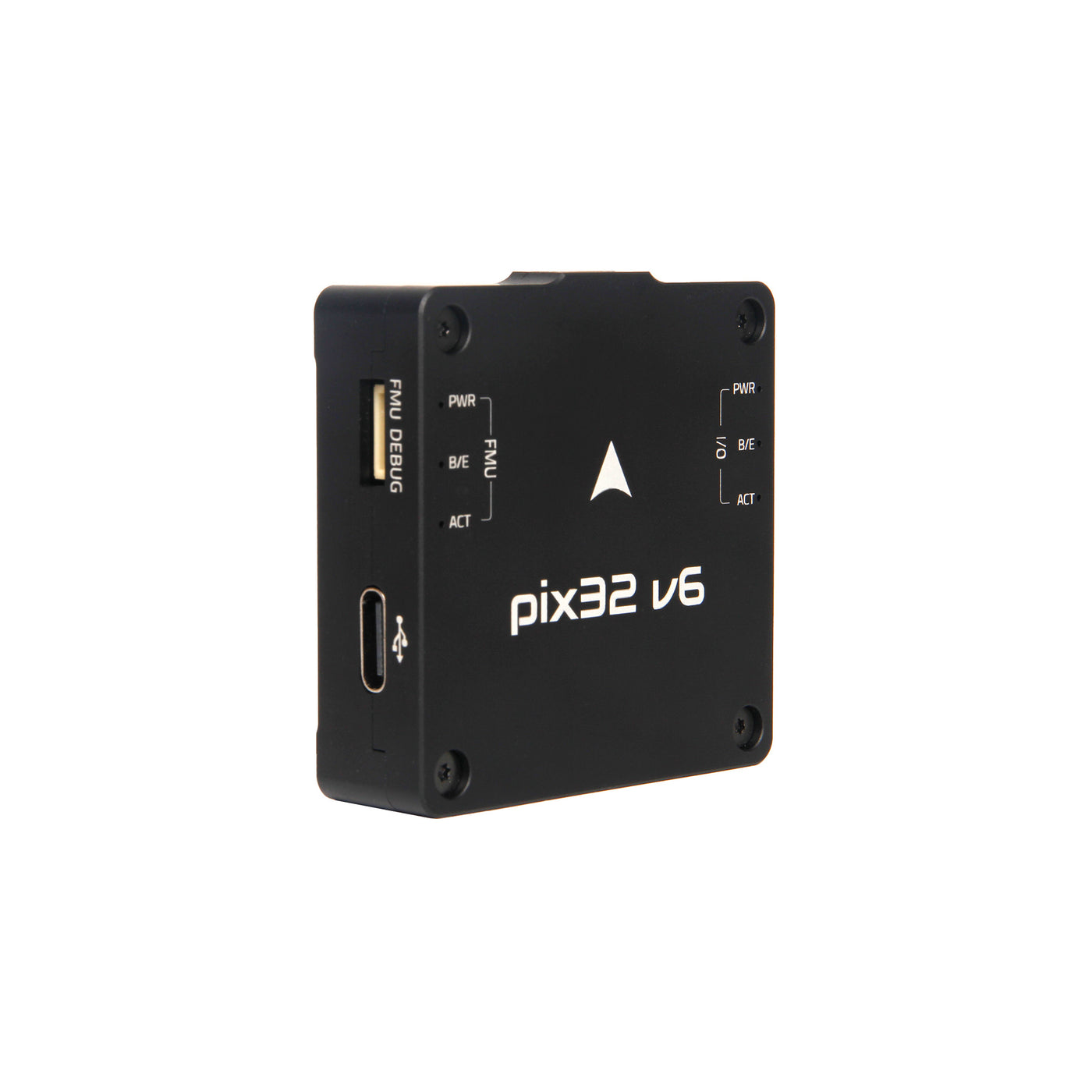

• Pix32 v6 Flight Controller Module

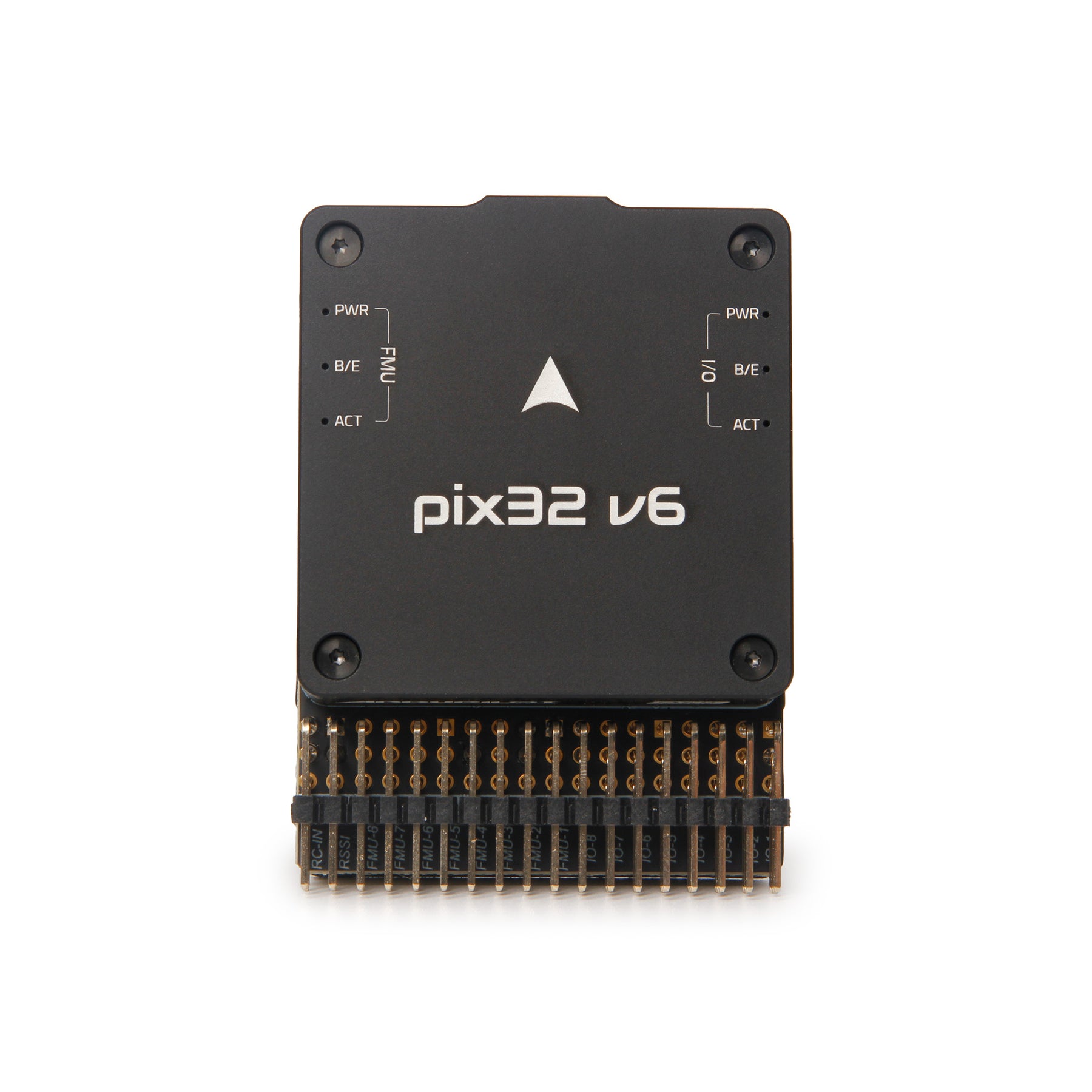

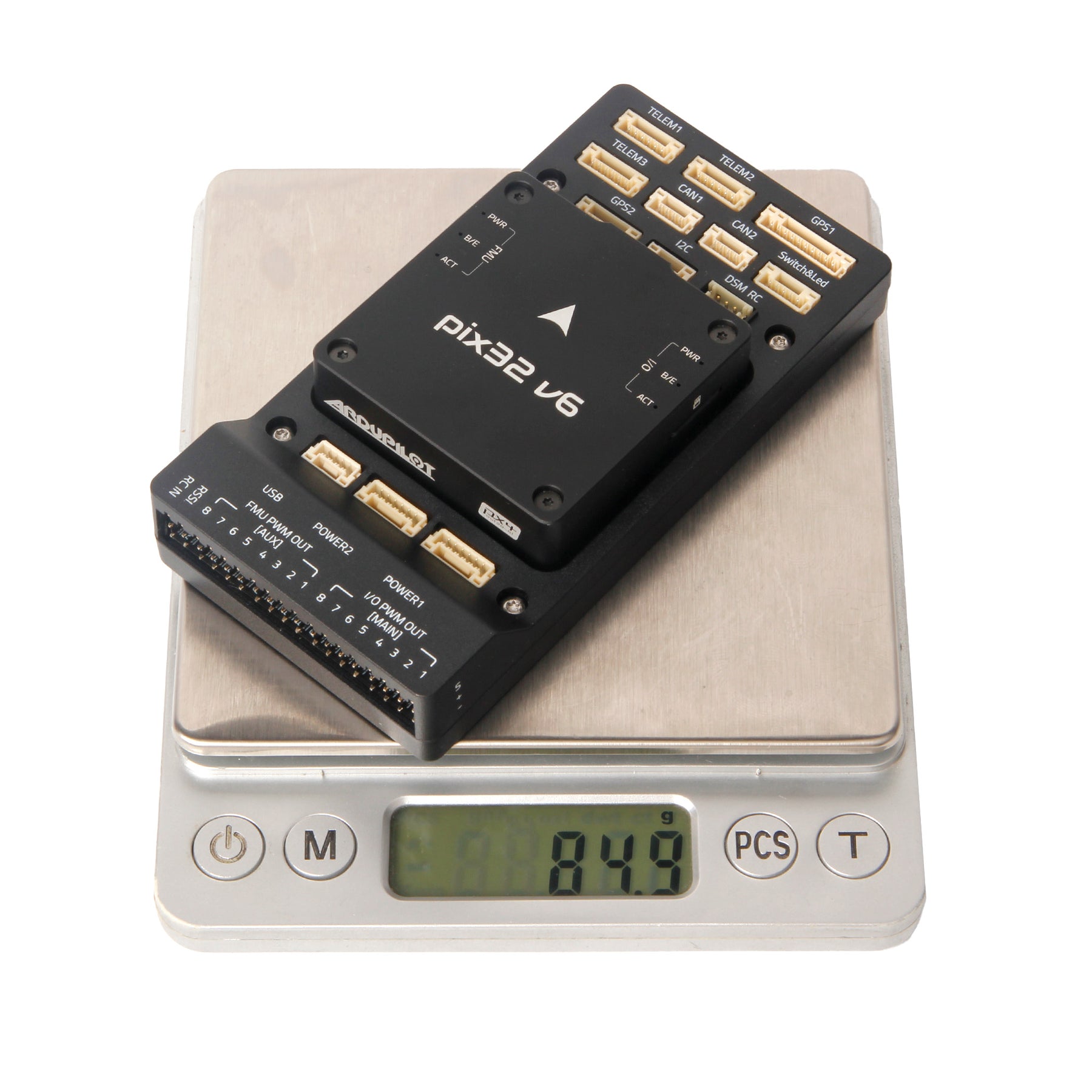

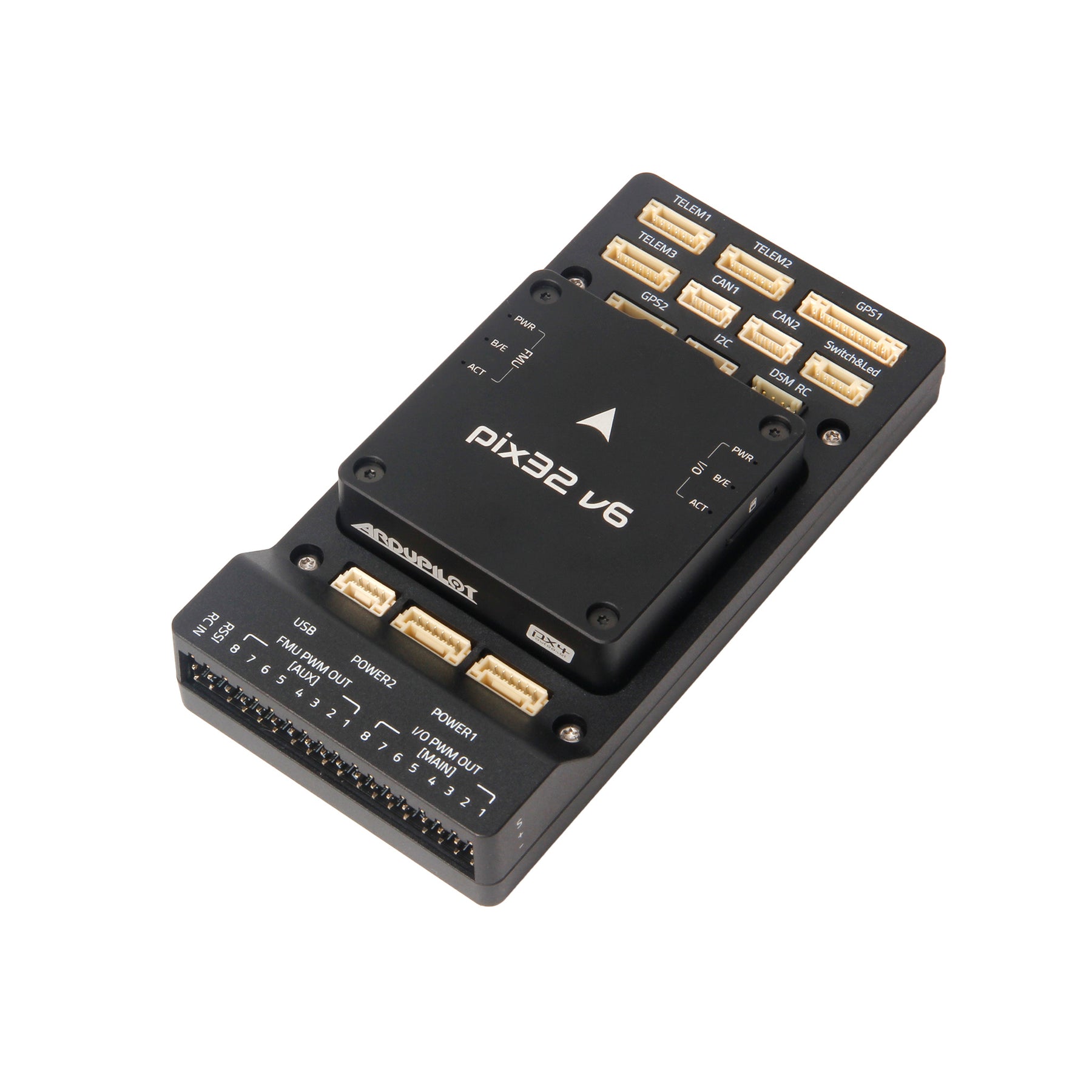

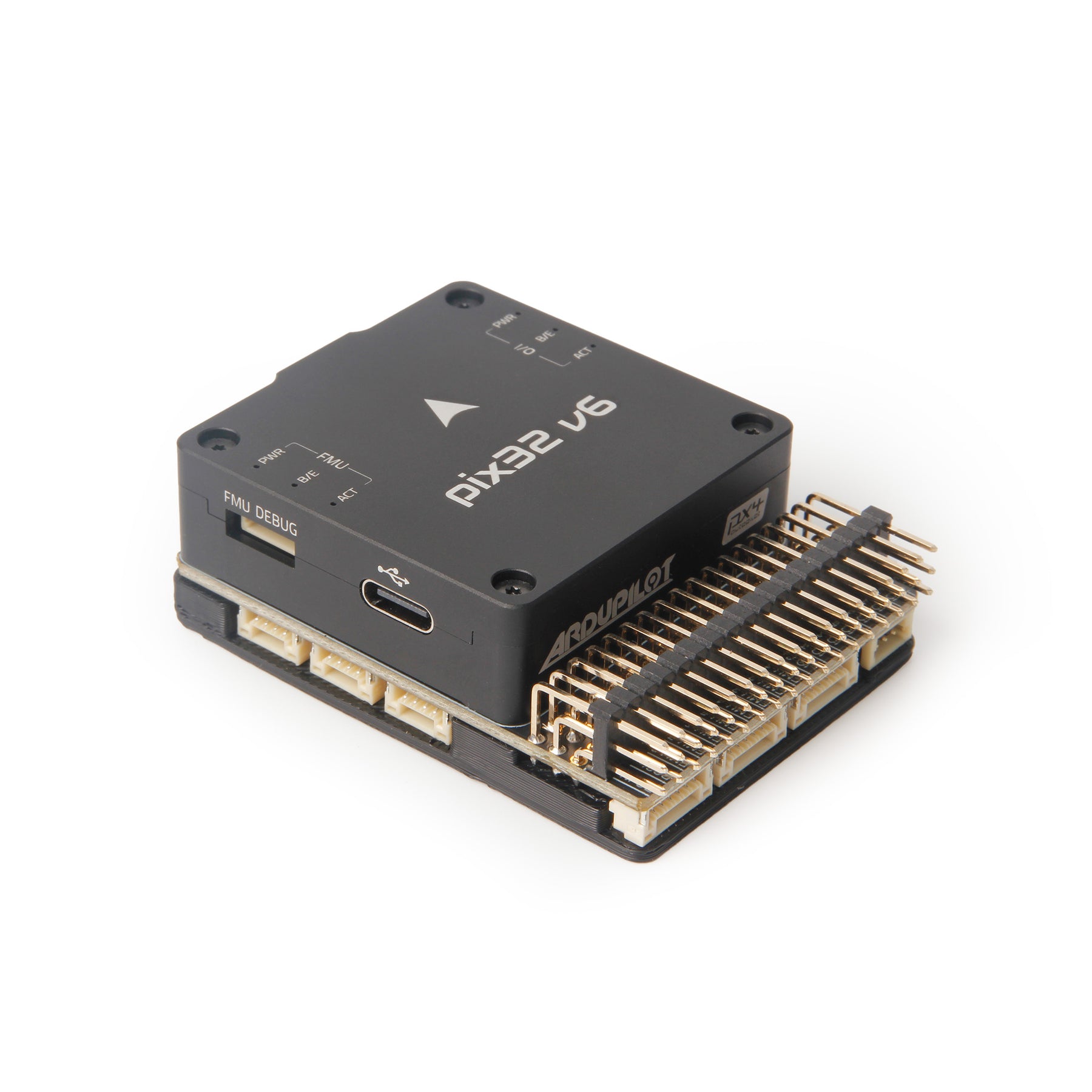

• Standard baseboard / Mini Baseboard
• PM02 V3 12S Power Module
• Standard Cable Set

Note: Pix32v6 Standard set will ship with the Pix32v5 Baseboard until further notice. For additional information regarding the baseboard, please see here.

For full technical Information and downloads, please visit https://docs.holybro.com/.
Latest info on Supported Firmware.
