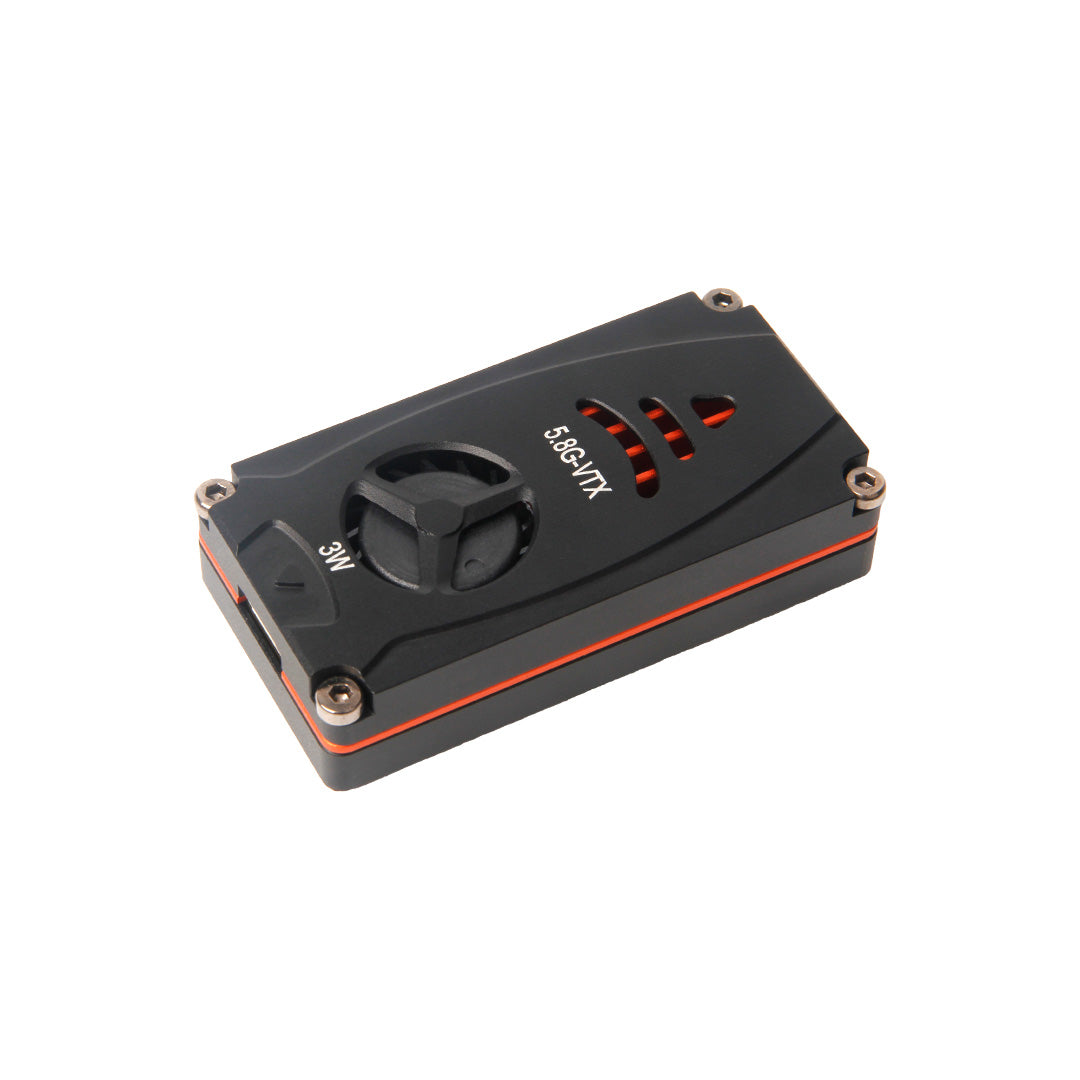

Specifications
|
Frequency |
5.8G |
|
Operating mode |
Key button, Smart Audio |
|
Transmission power |
Switchable: PIT, 25mW, 3000mW |
|

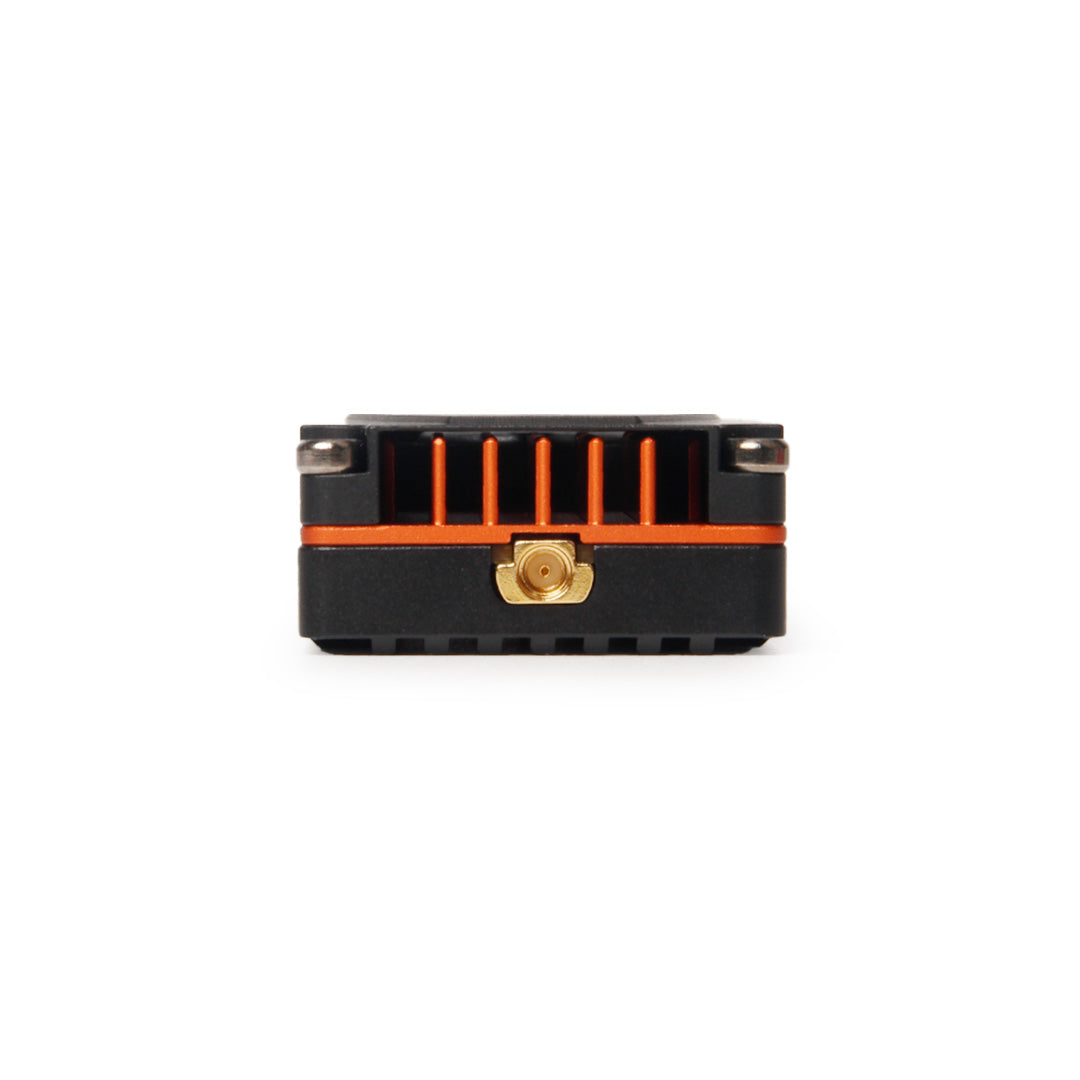

Antenna connector |
MMCX |
|

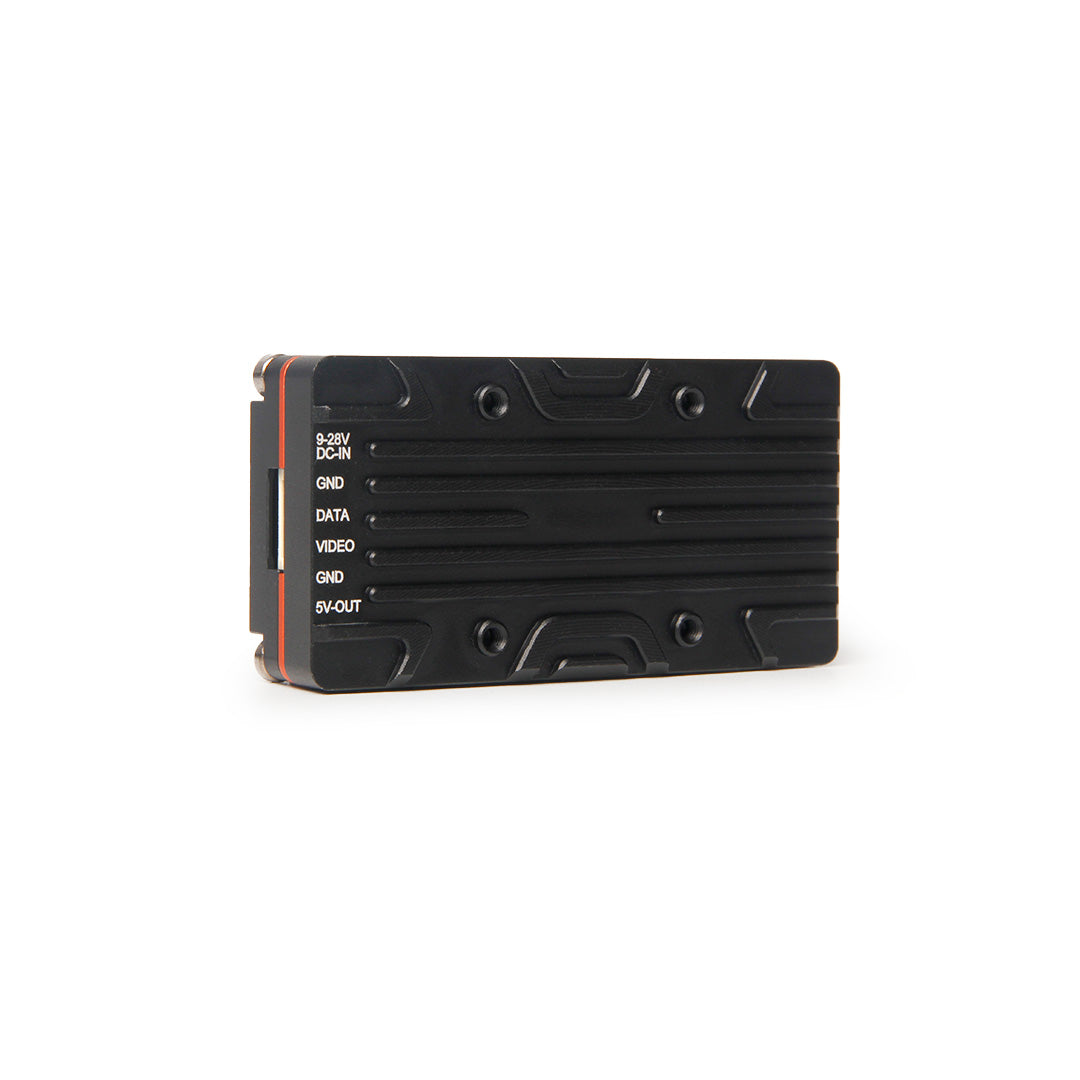

Power input |
7-36VDC |
|
Current consumption |
1.3A/12VDC @ 3000mW |
|
RF impedance |
50Ω |
|
Inputvideo impedance |
75Ω |
|
Input video amplitude |
CVBS 0.8~1.2VP-P |
|
Video format |
NTSC/PAL |
|

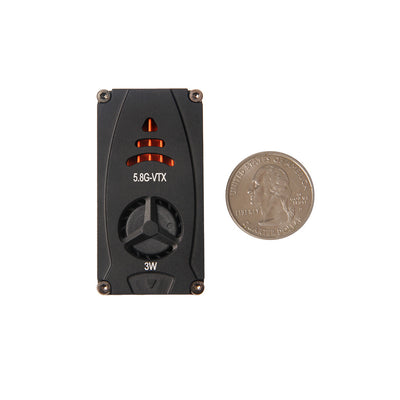

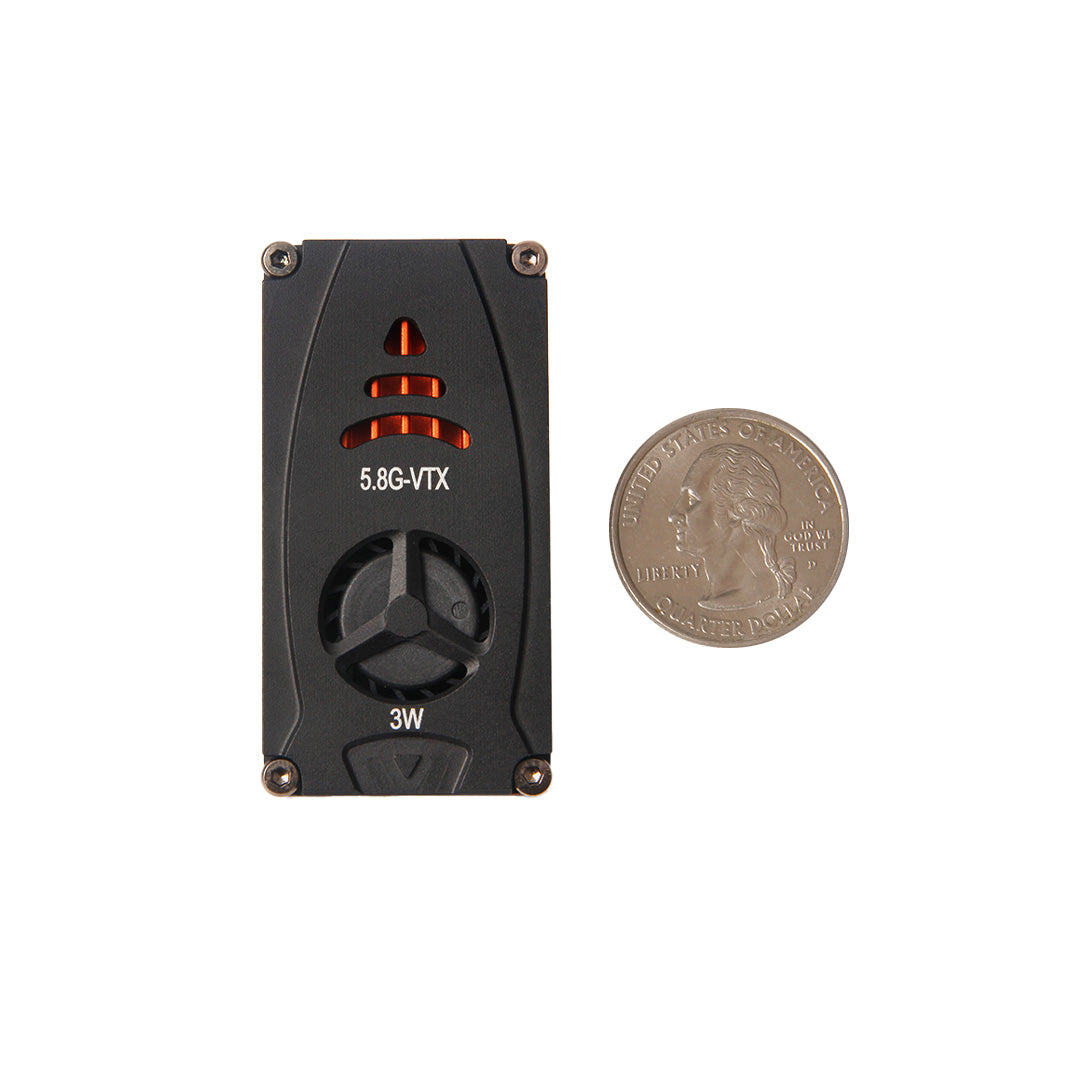

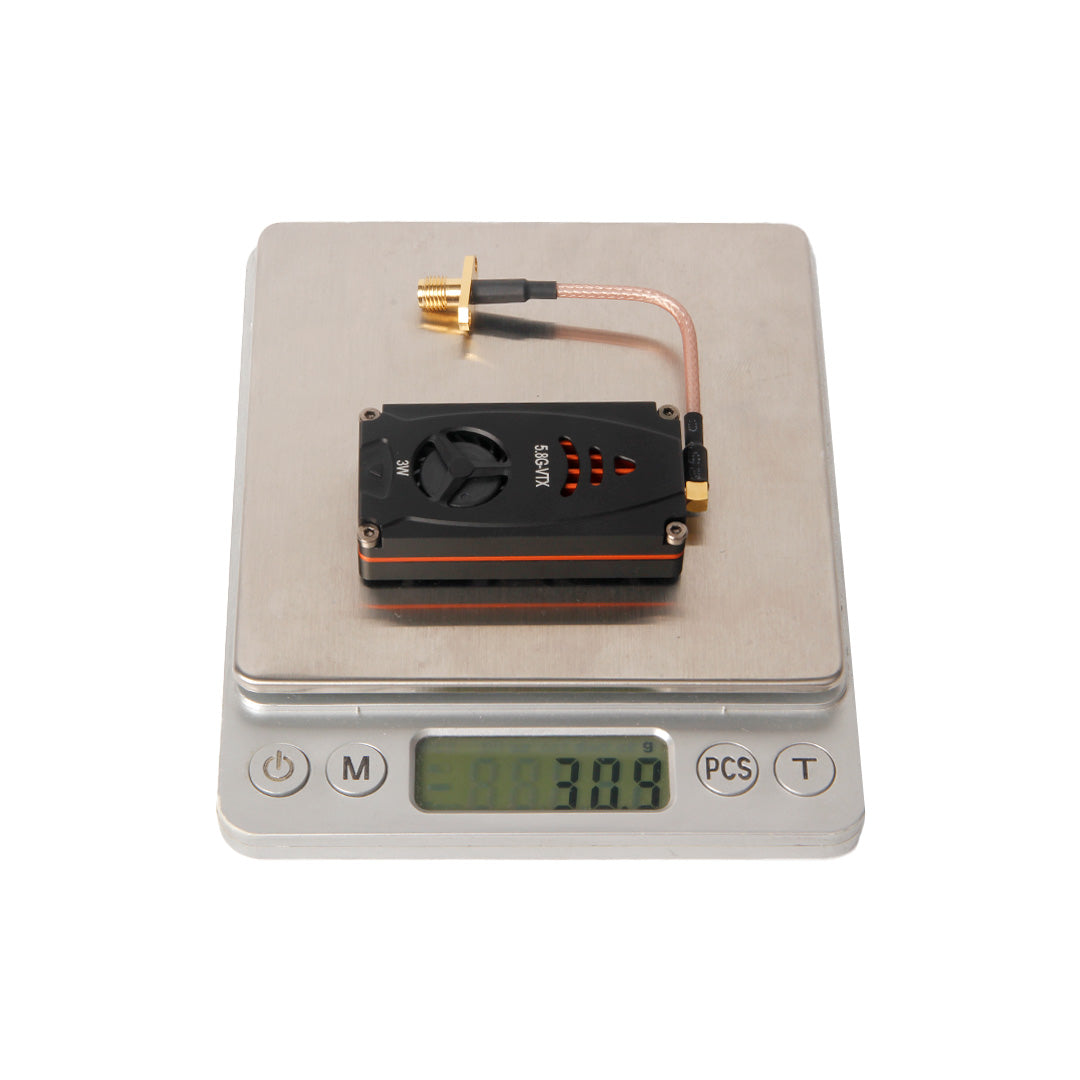

Dimension(L*W*H) |
40.8mm*24.8mm*13.3mm |
WARNING: Make sure to install the antenna before turning on this video transmitter

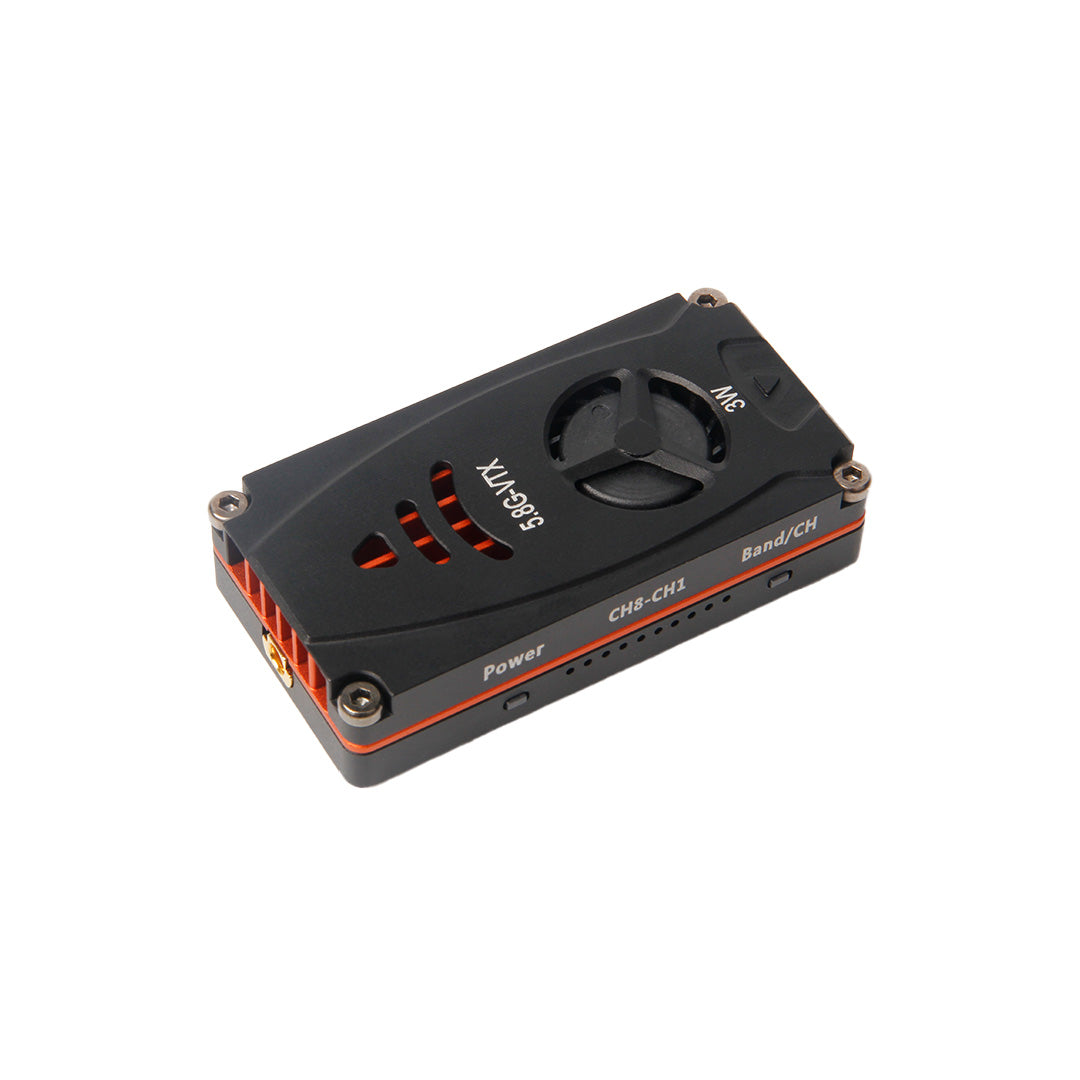

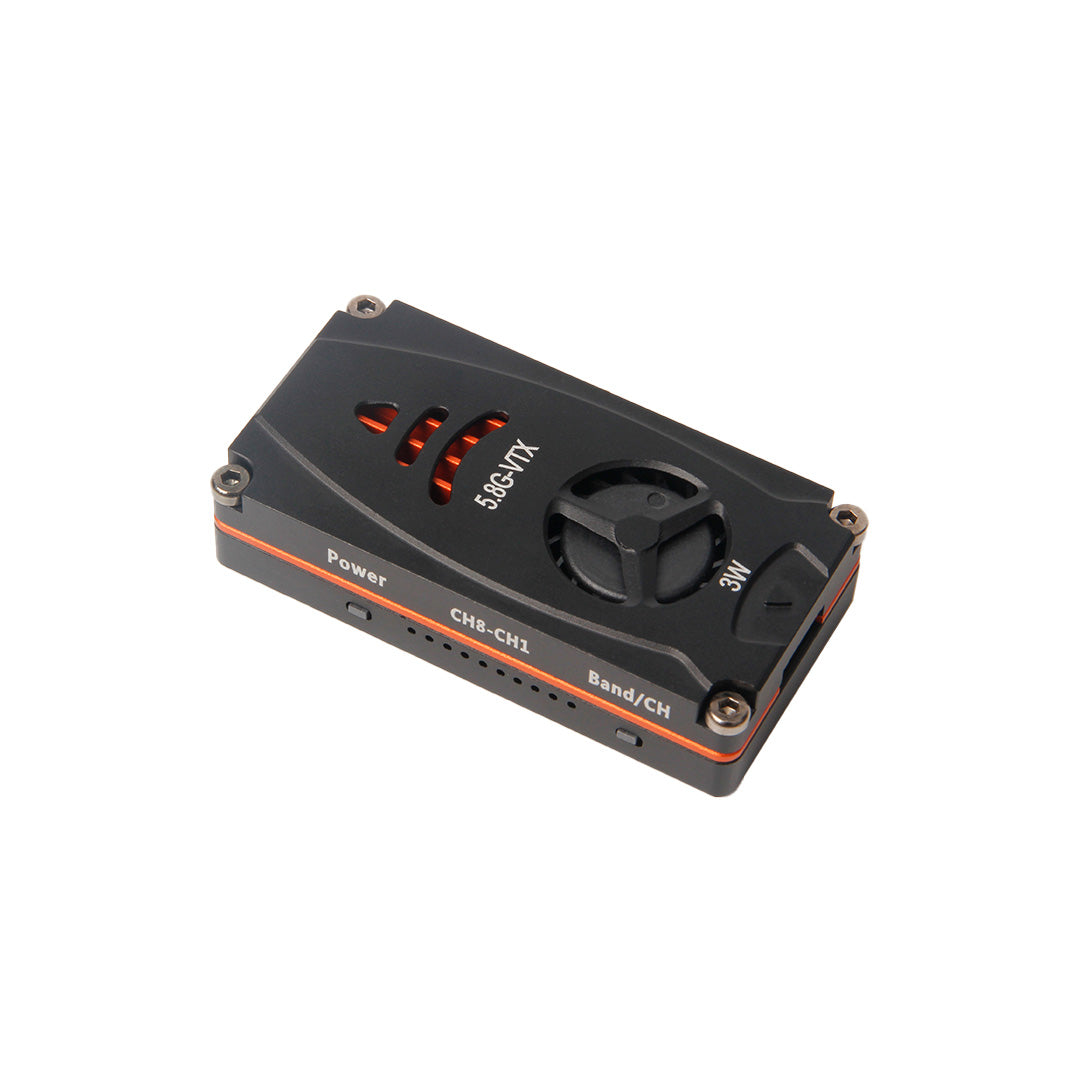

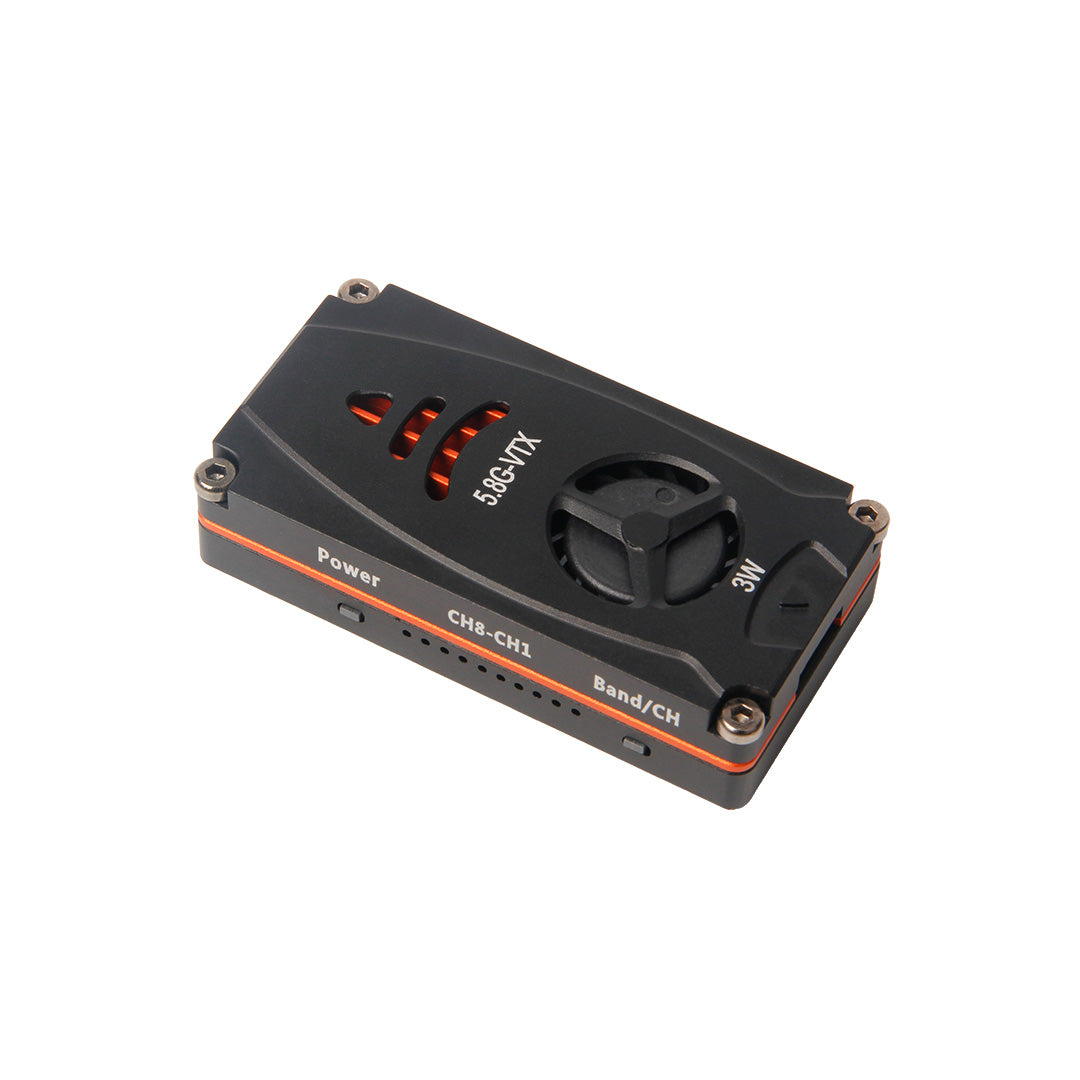

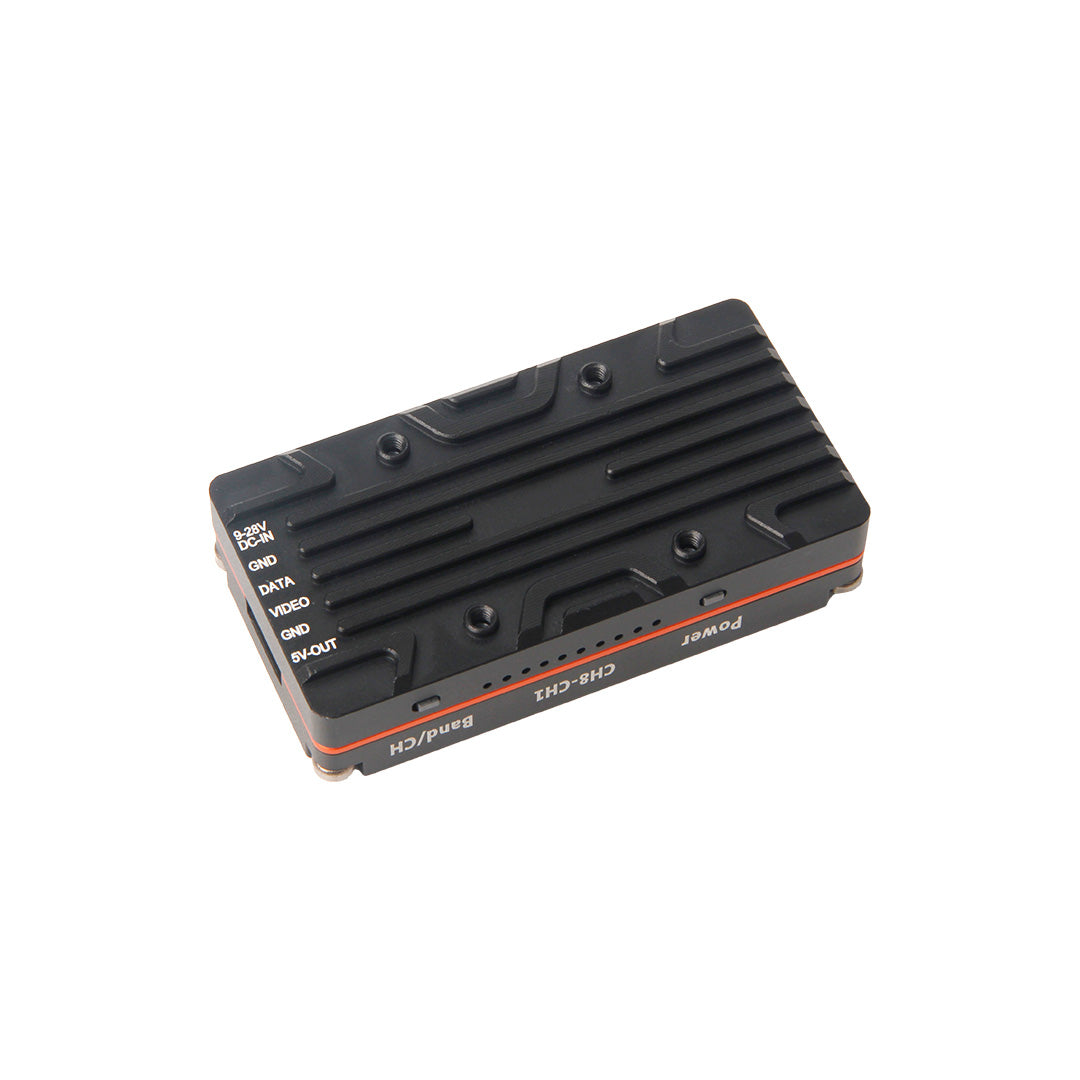

Indicator Light Description
- Power light (Green)
- Blink once per sequence - 25mW
- 2 per sequence - 1.6W
- 3 per sequence - 2W
- 4 per sequence - 2.5W
- 5 per sequence - 3W
- Frequency indicator light (Blue)
- Binary indicator. No lights means CH1, all lights means CH7
- Binary indicator. No lights means CH1, all lights means CH7
- Frequency band lights (Red)
- Blink once per sequence - Band A
- 2 per sequence - Band B
- 3 per sequence - Band E
- 4 per sequence - Band F
- 5 per sequence - Band R
- Blink once per sequence - Band A
Function Button Operation Instructions
- To switch frequency - Short press the button to switch channel.
- To switch the frequency band - Press and hold the button for 2 seconds to enter band changing mode. Short press the button to change the frequency band once enter the band changing mode.
-
To switch power - Press and hold the button for 6 seconds to enter power changing mode. Short press the button to switch the power level. Green LED blinking times for each blinking sequence indicate the power level (25mW/1.6W/2W/2.5W/3W).
- Once finish configuration, wait 8 seconds for it to save the settings.
Frequency Table
Betaflight VTX table .jason file.

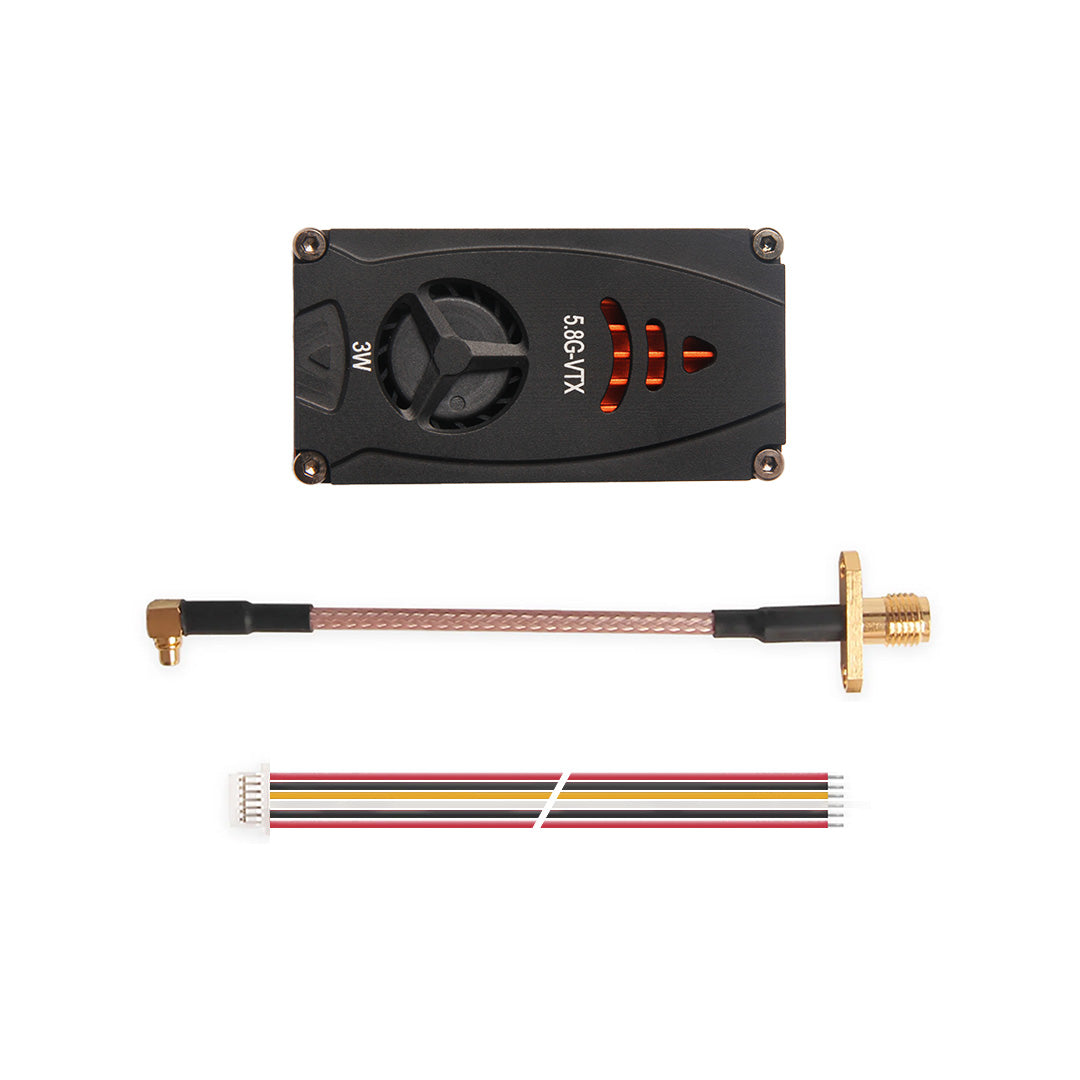

Package Includes:

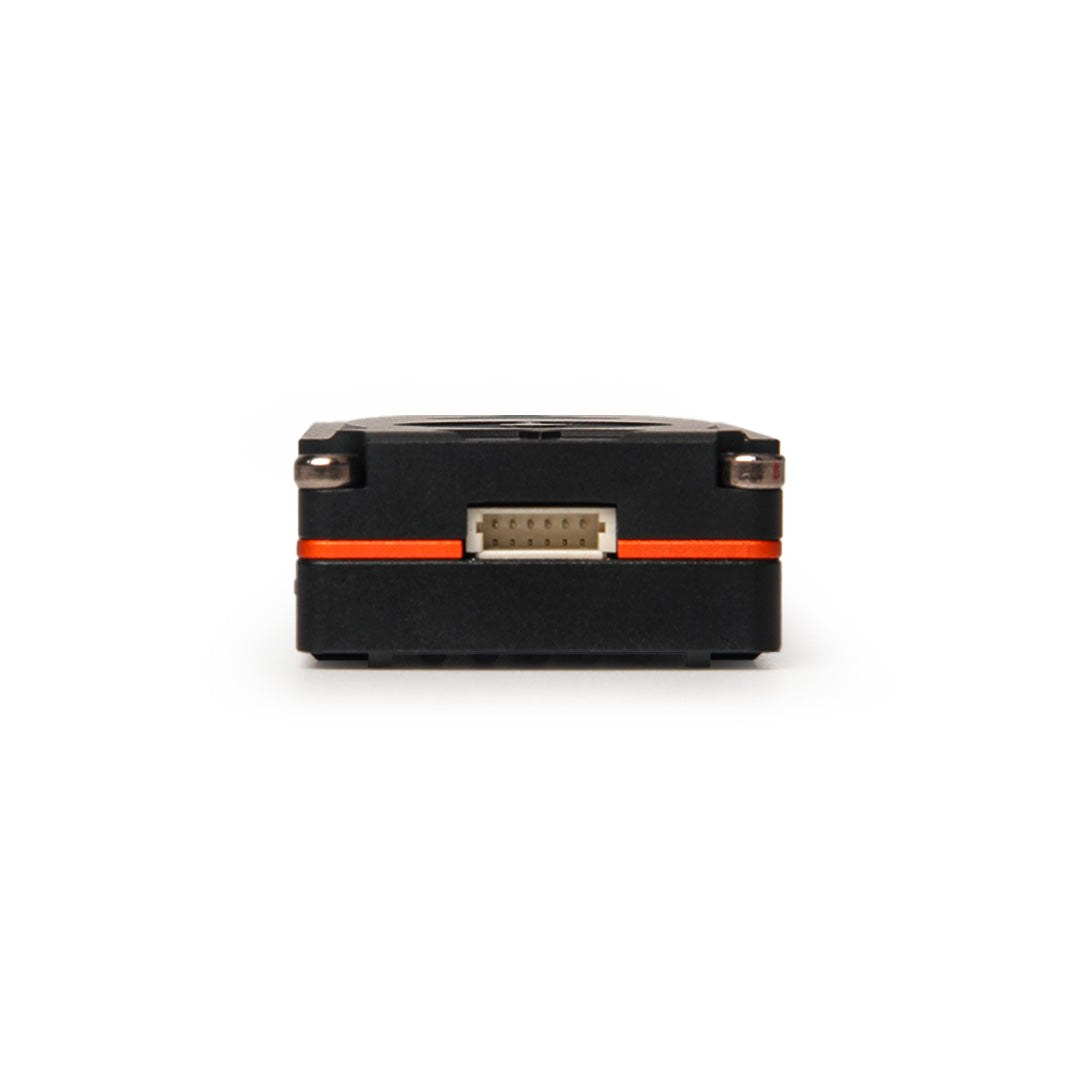

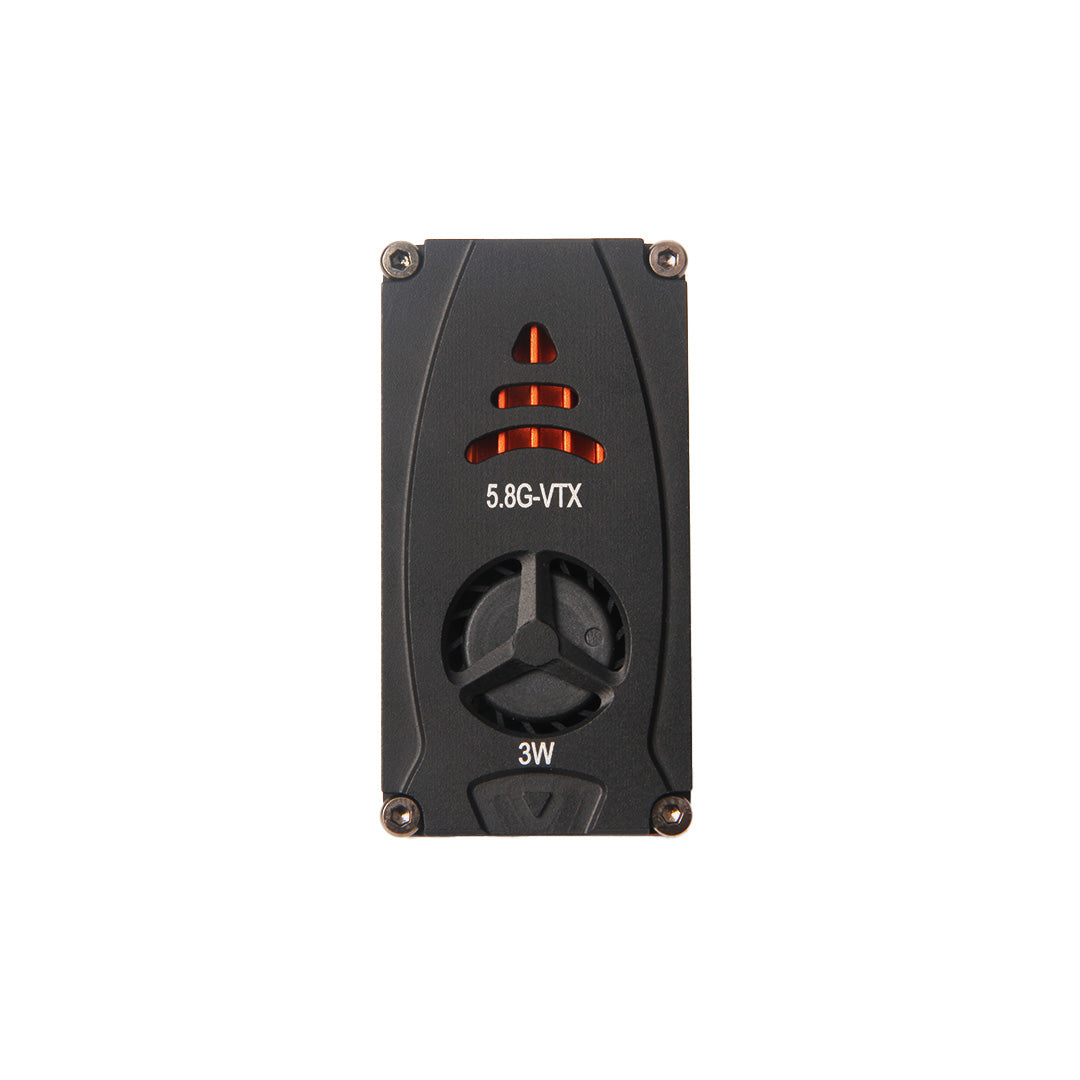

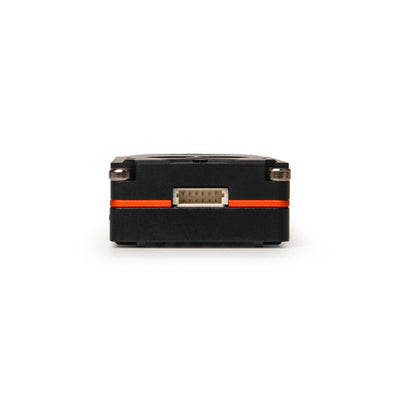

- Atlatl HV 5.8G 3000mW VTx *1

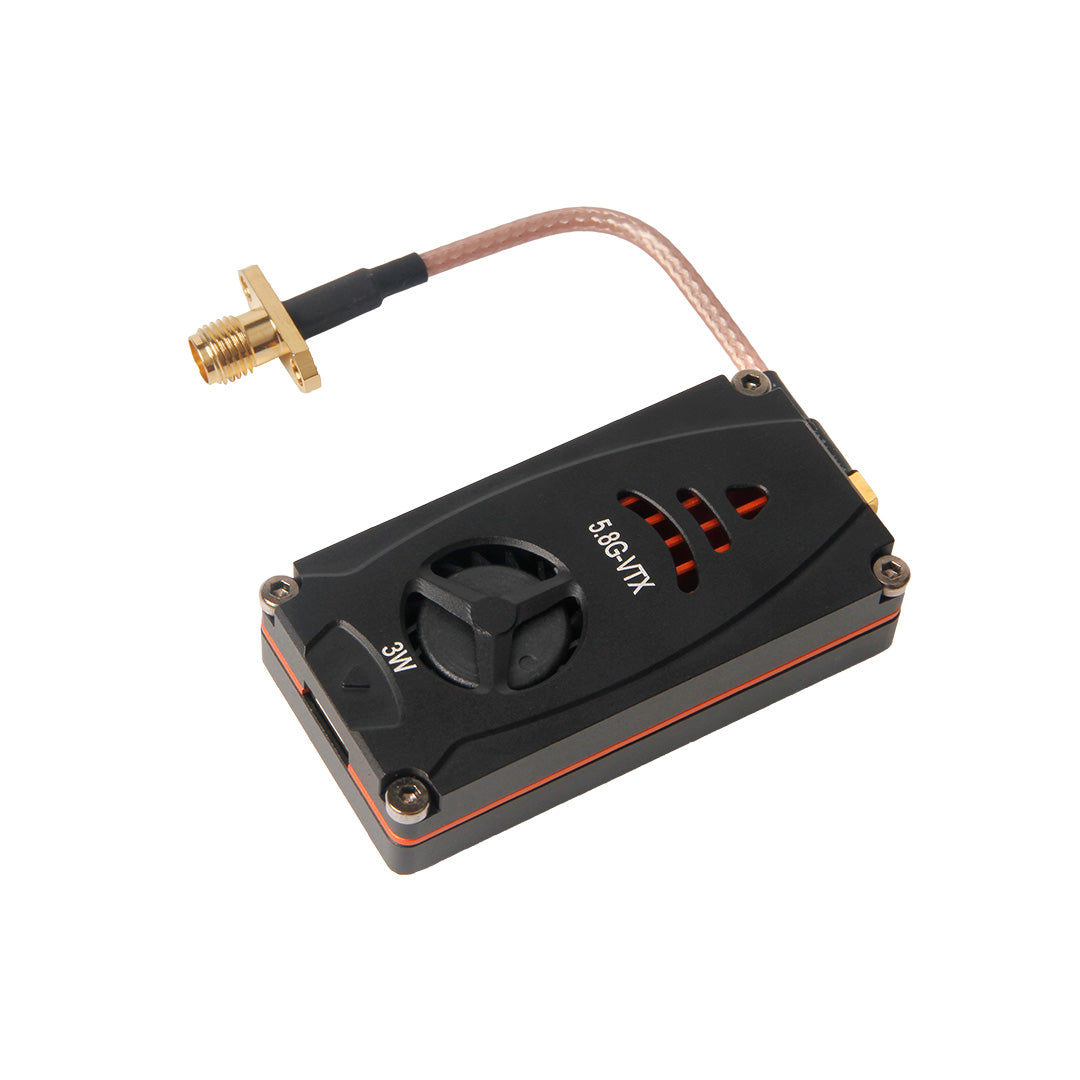

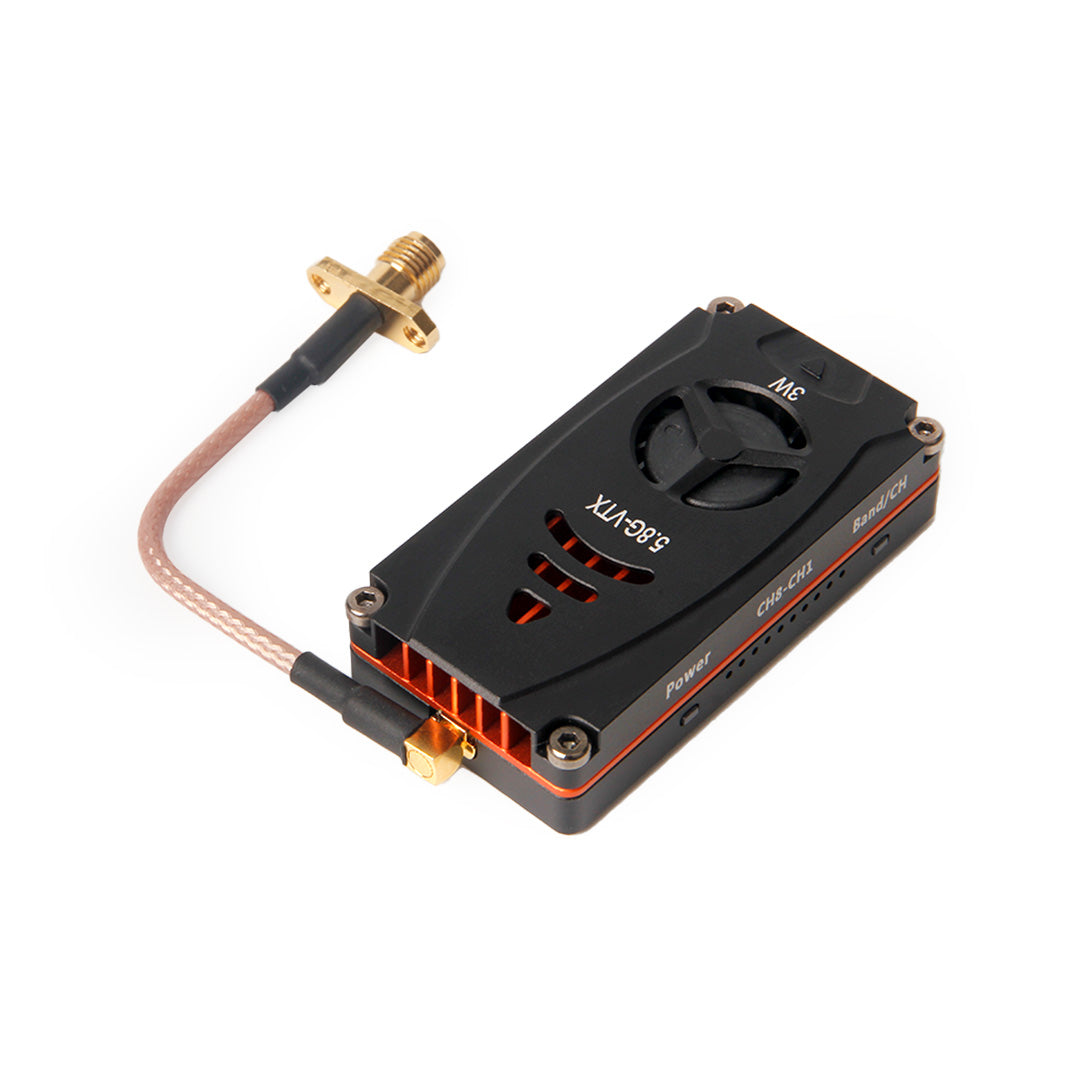

- 80mm SMA--MMCX Cable *1
- 70mm 6pin JST SH wire *1
