Name: PM08-CAN Power Module 14S, 200A
Brand: PCBA
SKU: 15028
Price: 85.0 USD
Availability: InStock

PM08-CAN Power Module 14S, 200A - Holybro Store

$85.00

Shipping calculated at checkout.

Connector type

XT90 Connectors

Tinned Wires

XT90 & Ring Terminal

Quantity

Volume discount is available if meet the following quantity (some exclusions apply). Please Contact us via email for invoice.

Quantity	Discount
10-99	10%
100-249	20%
250-499	25%
500-999	30%
1000+	Contact us

[{"id":44052276609213,"title":"XT90 Connectors","option1":"XT90 Connectors","option2":null,"option3":null,"sku":"15028","requires_shipping":true,"taxable":false,"featured_image":{"id":34985135898813,"product_id":7781523259581,"position":6,"created_at":"2024-06-28T19:33:35+08:00","updated_at":"2024-06-28T19:33:37+08:00","alt":"PM08-CAN Power Module 14S, 200A - Holybro Store","width":2048,"height":2048,"src":"\/\/holybro.com\/cdn\/shop\/files\/15028_7.jpg?v=1719574417","variant_ids":[44052276609213]},"available":true,"name":"PM08-CAN Power Module 14S, 200A - XT90 Connectors","public_title":"XT90 Connectors","options":["XT90 Connectors"],"price":8500,"weight":80,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":"PM08-CAN Power Module 14S, 200A - Holybro Store","id":27362531868861,"position":6,"preview_image":{"aspect_ratio":1.0,"height":2048,"width":2048,"src":"\/\/holybro.com\/cdn\/shop\/files\/15028_7.jpg?v=1719574417"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":44052276641981,"title":"Tinned Wires","option1":"Tinned Wires","option2":null,"option3":null,"sku":"15029","requires_shipping":true,"taxable":false,"featured_image":{"id":34985135964349,"product_id":7781523259581,"position":7,"created_at":"2024-06-28T19:33:54+08:00","updated_at":"2024-06-28T19:33:56+08:00","alt":"PM08-CAN Power Module 14S, 200A - Holybro Store","width":2048,"height":2048,"src":"\/\/holybro.com\/cdn\/shop\/files\/15029_7.jpg?v=1719574436","variant_ids":[44052276641981]},"available":true,"name":"PM08-CAN Power Module 14S, 200A - Tinned Wires","public_title":"Tinned Wires","options":["Tinned Wires"],"price":8300,"weight":80,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":"PM08-CAN Power Module 14S, 200A - Holybro Store","id":27362537865405,"position":7,"preview_image":{"aspect_ratio":1.0,"height":2048,"width":2048,"src":"\/\/holybro.com\/cdn\/shop\/files\/15029_7.jpg?v=1719574436"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":44052276674749,"title":"XT90 \u0026 Ring Terminal","option1":"XT90 \u0026 Ring Terminal","option2":null,"option3":null,"sku":"15030","requires_shipping":true,"taxable":false,"featured_image":{"id":34985136062653,"product_id":7781523259581,"position":8,"created_at":"2024-06-28T19:34:09+08:00","updated_at":"2024-06-28T19:34:11+08:00","alt":"PM08-CAN Power Module 14S, 200A - Holybro Store","width":2048,"height":2048,"src":"\/\/holybro.com\/cdn\/shop\/files\/15030_7.jpg?v=1719574451","variant_ids":[44052276674749]},"available":true,"name":"PM08-CAN Power Module 14S, 200A - XT90 \u0026 Ring Terminal","public_title":"XT90 \u0026 Ring Terminal","options":["XT90 \u0026 Ring Terminal"],"price":8500,"weight":80,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":"PM08-CAN Power Module 14S, 200A - Holybro Store","id":27362542813373,"position":8,"preview_image":{"aspect_ratio":1.0,"height":2048,"width":2048,"src":"\/\/holybro.com\/cdn\/shop\/files\/15030_7.jpg?v=1719574451"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Feature

Supports 2-14S & 200A Cont, 400A Burst
DroneCAN Communication Protocol
Small & Compact Design
Two 5V Output with Independent BEC IC and Circuitry
Separated Sensor and BEC Board to Minimize Electrical Noise Interference
Galvanically Isolated Current Sensor IC (AEC-Q100 Grade 1 qualified)
High Accuracy Temperature Sensor for Temperature Monitor
High-Efficiency Aluminum Heat Dissipation Shell

Specifications

Processor：STM32F405RG 168MHz 1024KB Flash 196KB RAM
Voltage input: 7~60.9V (2S~14S)
Continuous current:200A
Burst current
- 400A @ 25℃ 1 sec
- 1000A @ 25℃ < 1 sec
Max current sensing: 376A
Voltage accuracy: ±0.1V
Current accuracy: ±5%
Temperature accuracy:±1℃
Power port output: 5.3V/3A each port
Protocol: DroneCAN
Operating temperature :-25℃~105℃
Firmware upgrade: Support
Calibration: Support

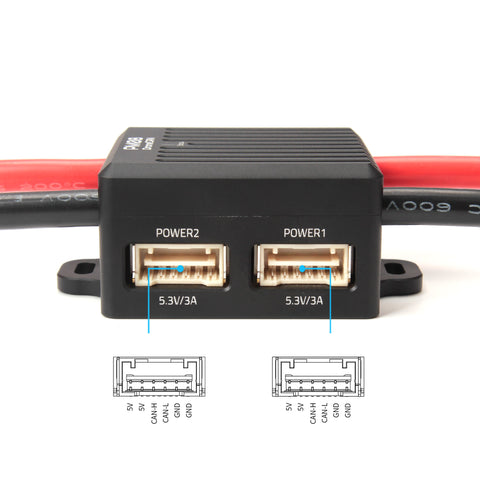

Pinout

Interface Type

Power & CAN Port: Molex CLIK-Mate 2mm 6Pin
Battery IN/OUT Options:
- XT90 Connectors
- Tinned Wires
- XT90 & Ring Terminals

Status LED

Flashing quickly continuously: MCU is in the bootloader stage, waiting for firmware to be flash
Flashing quickly for 3 seconds, and then on for 1 second: Waiting for CAN connection
Flashing slowly (one-second intervals): CAN is successfully connected

Mechanical Spec

Size: 45mm×41mm×26mm (Not Include Cable)
Weight: 185g (Include Cable)
