Kopis Cinewhoop 2.5"

SKU:

30097


Regular price$150.99
/
Shipping calculated at checkout.
Optional items:


Updated:

1.Flight Controller: Kakute H7 Mini
2.Digital HD Camera:Caddx Nebula Pro Vista Kit Digital HD FPV system
3.ESC:Tekko32 F4 4in1 mini 45A ESC


Features:

  • Frame:3mm 3k carbon fiber
  • Flight Controller: Kakute H7 Mini
  • ESC: Tekko32 F4 4in1 45A mini ESC
  • VTx:Caddx Nebula Pro Vista Kit starlight Digital HD FPV system
  • Motor: F1404 KV3800
  • Propeller: D63-5B
  • Buzzer included.
  • Battery plug: XT30
  • Wheelbase: 105.5mm
  • Weight:159g(Without Battery)
  • Take-off Weight:250g (4s 850mah Lipo )
  • Recommend battery (Not Included): 550~850mah 4s

Specifications:

FC:Kakute H7 Mini


ESC:Tekko32 F4 4in1 45A mini ESC

  • F4 MCU with BLHELI32 firmware
  • Maximum PWM output upto 96K (default 48K)
  • Amperage meter scale ratio has been adjusted to 168.
  • PWM input, TLM supported
  • Voltage output (VBAT)
  • NO output BEC
  • Supports oneshot / Multishot / Dshot PWM
  • Supports damped light
  • Supports 3-6S lipo input
  • Ext. cap needed for 6s (1000uf 35v for 6s usage.)
  • Mounting holes: 20x20mm(M3)
  • Size:30 x 39 mm
  • Weight: 7.2g

Includes:

  • 1x Kopis cinewhoop2.5” FPV racing drone
  • Caddx Nebula Pro Vista Kit starlight Digital HD FPV system (Optional)
  • 1x Naked GoPro camera mount
  • 4x D63-5B Propeller
  • 2x Propeller guard
  • 1x Carying case
(Package doesn’t include Insta360 GO, the Insta360 GO on the pictures for reference only.)

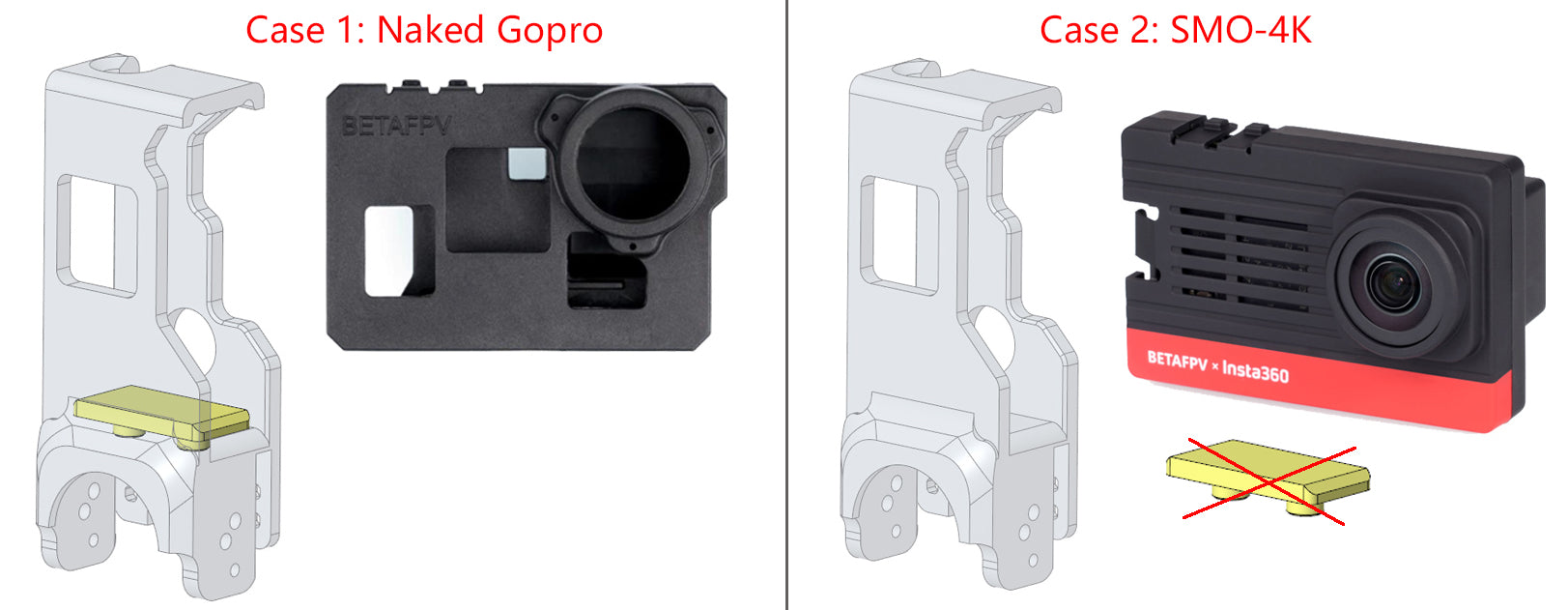

NOTE: Naked Gopro & SMO-4K


Manual:

Kopis CineWhoop2.5inch Manual

3D Print:

Kopis_Cinewhoop2.5“3D_Print_STL_Files V1.1

Setting:

Kopis_Cinewhoop2.5_Factory_CLI_Dump

Kopis_Cinewhoop2.5-TBS_Crossfire_Nano_Dump
