H-RTK F9P GNSS Series (IST8310 Compass)

SKU:

12017


Regular price$296.99
/
Shipping calculated at checkout.
Version

A new and improved H-RTK F9P rover is now available here.

Volume discount is available if meet the following quantity (some exclusions apply). Please Contact us via email for invoice.

Quantity Discount
10-99 10%
100-249 20%
250-499 25%
500-999 30%
1000+ Contact us

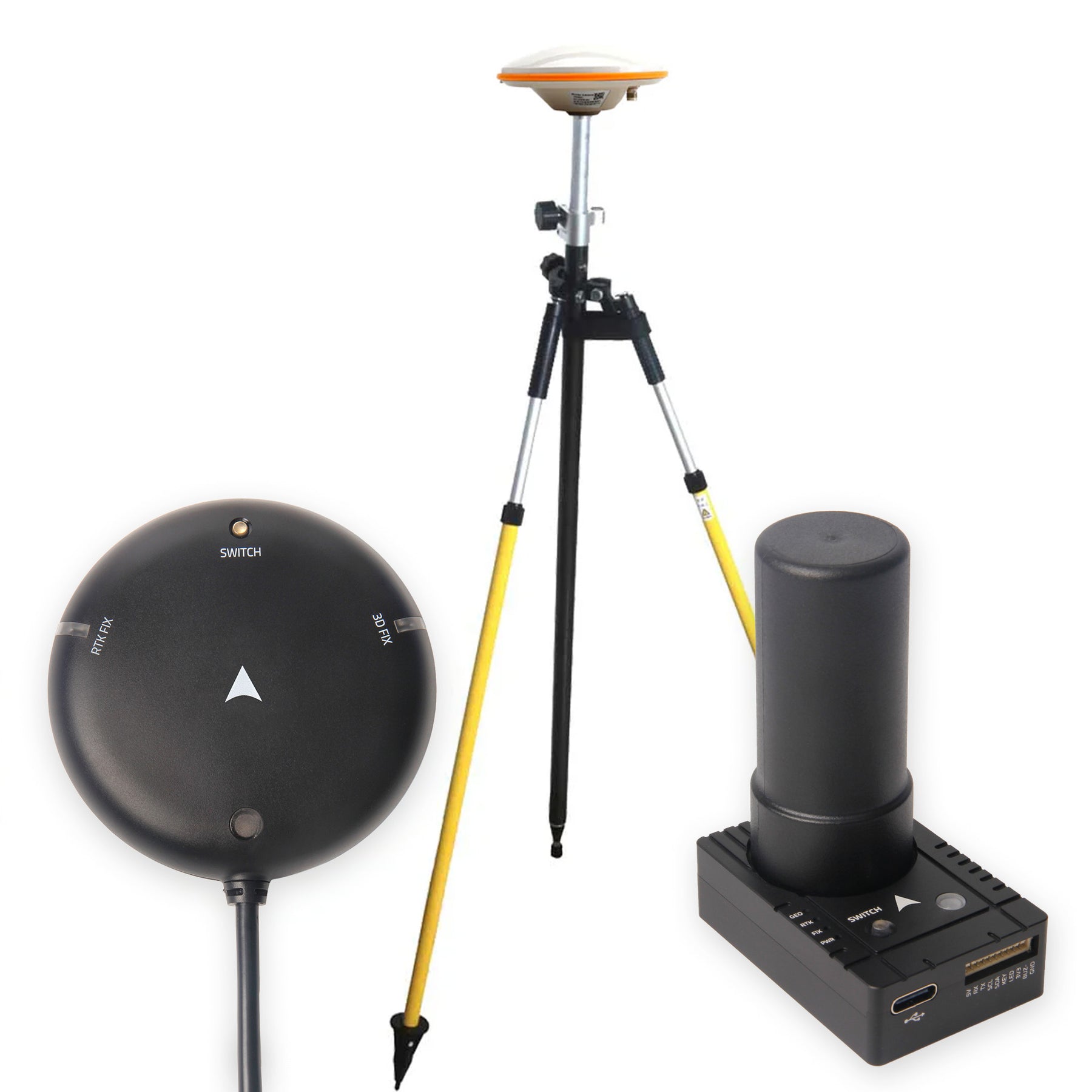

H-RTK F9P is the latest differential high-precision GNSS positioning system series from Holybro. This system provides multi-band RTK with fast convergence times and reliable performance, concurrent reception of GPS, GLONASS, Galileo and BeiDou, and fast update rate for highly dynamic and high volume applications with centimeter-accuracy. It uses a UBLOX ZED-F9P module, a IST8310 compass, and a tri-colored LED indicator. It also has a integrated safety switch for a simple and convenient operation.

We have designed different models of for you to choose, each with different size and antenna design to meet different customer needs.

RTK Testing & Comparison: Big GPS Round Up by Andrew Tridgell (Ardupilot)

Note: The Status LED driver has changed. This LED is support in PX4 1.14, ArduPilot 4.4.0 & later. (More info)

Specification:

Product Model
H-RTK F9P Rover
H-RTK F9P Helical
H-RTK F9P Base
SKU
SKU12017 & SKU12025
SKU12018
SKU12022
Application
Rover (aircraft) only
Rover (aircraft) or base station
Base station only
GNSS
GPS L1C/A
GPS L2C GLONASS L1Oz
GLONASS L2OFz) BeiDou B1
BeiDou B2Hz)
Galileo E1-B/CH
Galileo E5b
GPS L1C/A
GPS L2C GLONASS L1Oz
GLONASS L2OFz) BeiDou B1
BeiDou B2Hz)
Galileo E1-B/CH
Galileo E5b
GPS L1C/A
GPS L2C GLONASS L1Oz
GLONASS L2OFz) BeiDou B1
BeiDou B2Hz)
Galileo E1-B/CH
Galileo E5b
Antennas Peak Gain (MAX)
L1: 4.0dBi L2:1.0 dBi
2dBi
5.5dBi
LNA Gain
(typical)
20.5±1dB
33±2dB
40±2dB
Time-TO-First Fix
Cold start:≤29s Hot start:≤1s
Cold start:≤25s Hot start:≤1s
Cold start:≤24s Hot start:≤1s
RTK-SurveyIn-Time
N/A
≤5 minute @2.0mCEP
≤5 minute @1.5mCEP
Data and Update Rate
RAW: 20Hz Max RTK: 8Hz Max
RAW: 20Hz Max RTK: 8Hz Max
Moving Base RTK: 5Hz Max
RAW: 20Hz Max RTK: 8Hz Max
Moving Base RTK: 5Hz Max
Port
GH1.25 10pin cable
or GH1.25 6pin cable
Port 1: GH1.25 10-pin
Port 2: USB Type-c Port 3: UART 2 (GH1.25 6pin)
Port 1: GH1.25 10-pin
Port 2: USB Type-c Port 3: UART 2 (GH1.25 6pin)
Cable Length
26cm
GH 10P: 150mm
GH 10P: 400mm
GH 10P to 6P: 300mm
SMA-TNC: 5m
Antenna Connection Type
N/A
Board: SMA female
Antenna: SMA male
Board: SMA female
Antenna: TNC female
Male-male SMA-TNC cable length: 5m (included)
Baud rate:
115200 5Hz (default) can be set
115200 5Hz (default) can be set
115200 5Hz (default) can be set
Working voltage:
4.75V~5.25V
4.75V~5.25V
4.75V~5.25V
Current Consumption
~250mA
~250mA
~250mA
Dimensions
Diameter: 76mm Height: 20mm
Board: 34.8*52.7*12.9mm
Antenna Diameter: 27.5mm
Antenna height: 59mm
Board: 34.8*52.7*12.9mm
Antenna Diameter: 152mm
Antenna height: 62.2mm
IP Rating IPX6  N/A N/A

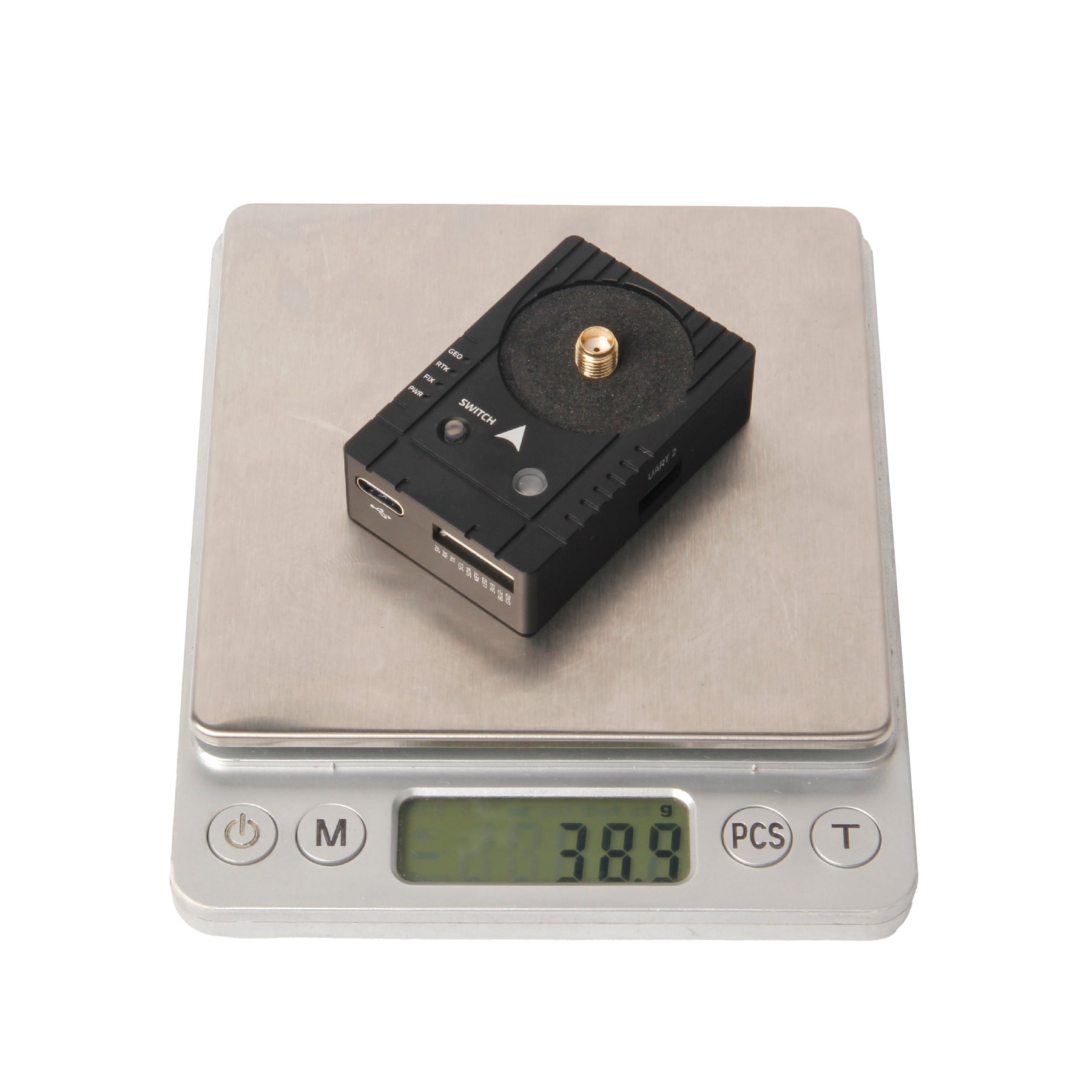

Weight
106g
49g
469g



Reference Links

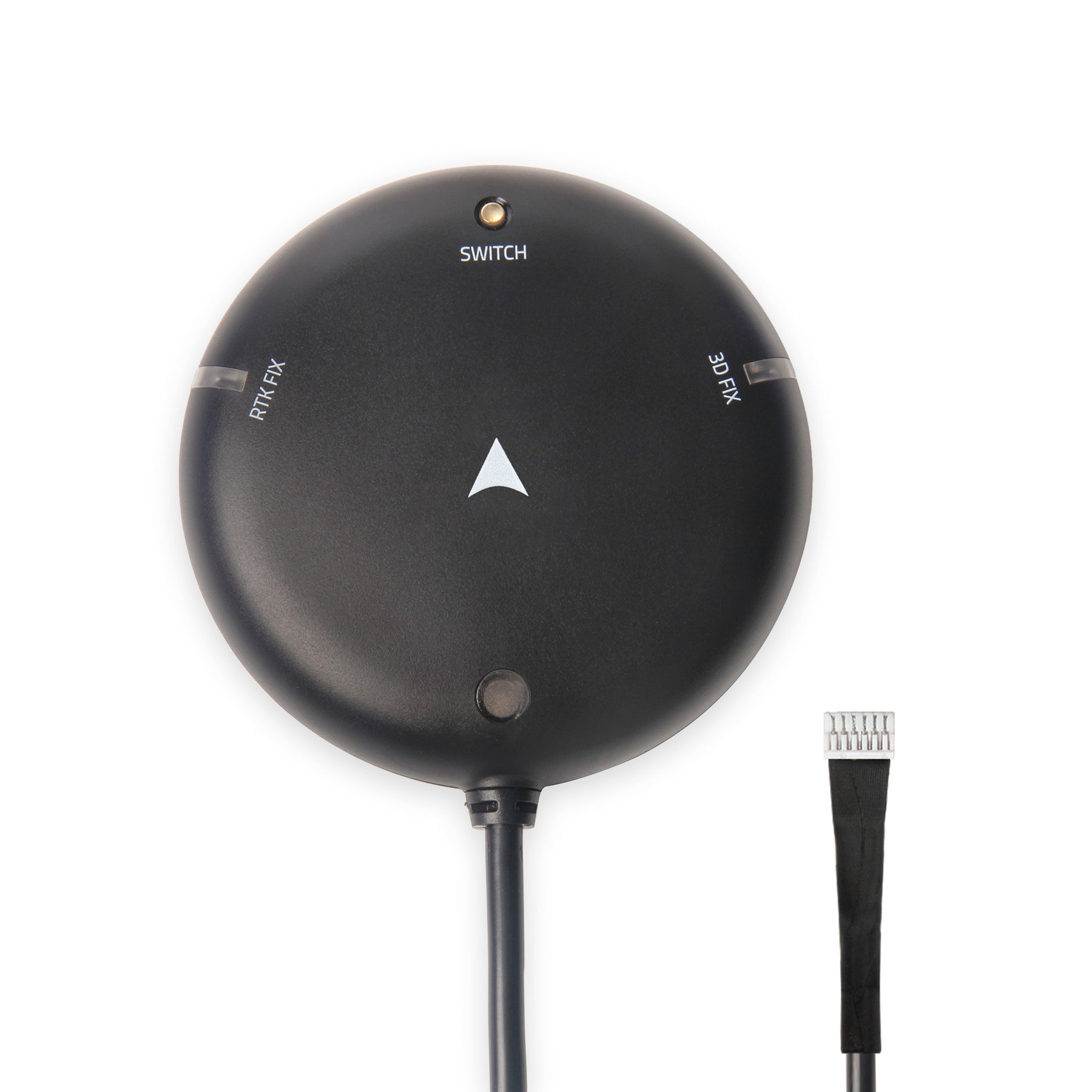

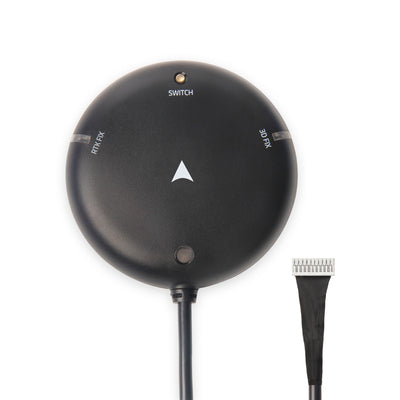

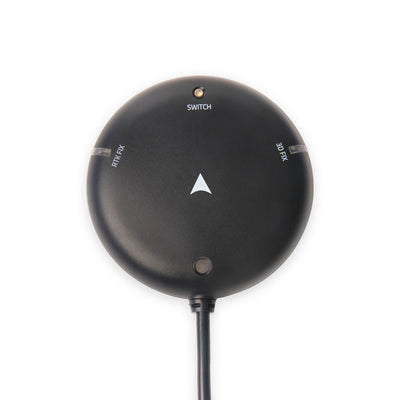

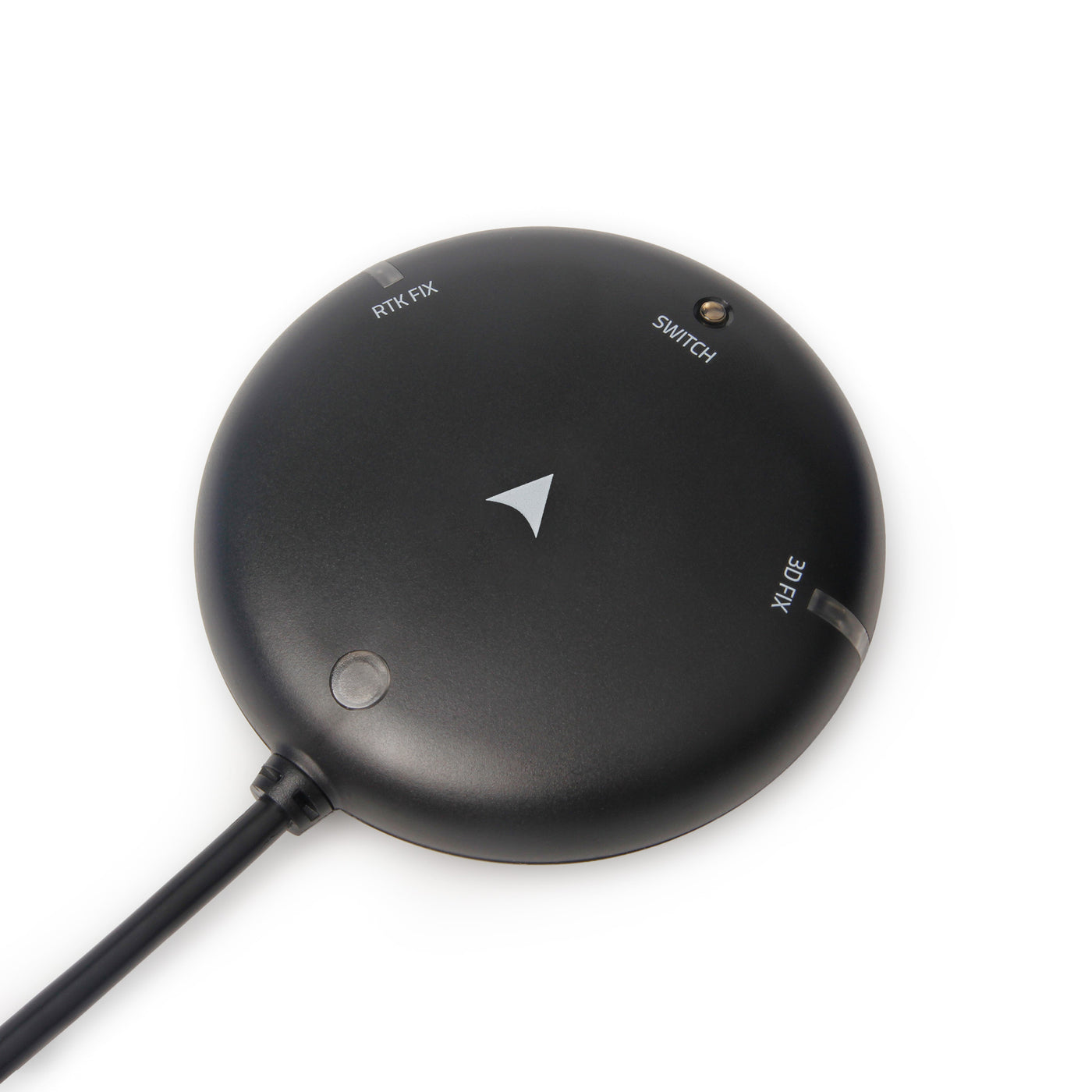

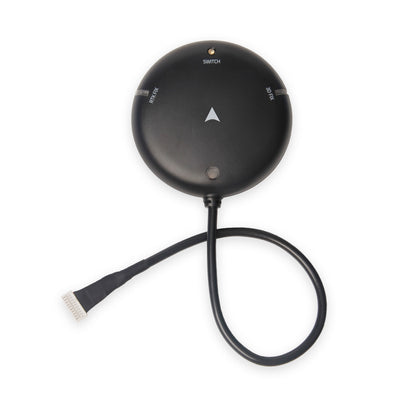

H-RTK F9P Rover lite (SKU12017) & H-RTK F9P Rover lite 2nd GPS (SKU12025)

This model is lower cost, light weight, and has high performance, It can meet the needs of general DIY users. Due to the lower cost, this model can also greatly minimize the cost of large swarm drone projects such as swarm light shows. It has a integrated safety switch and a tri-colored LED indicator, and it is compatible with the open source Pixhawk series flight controller.

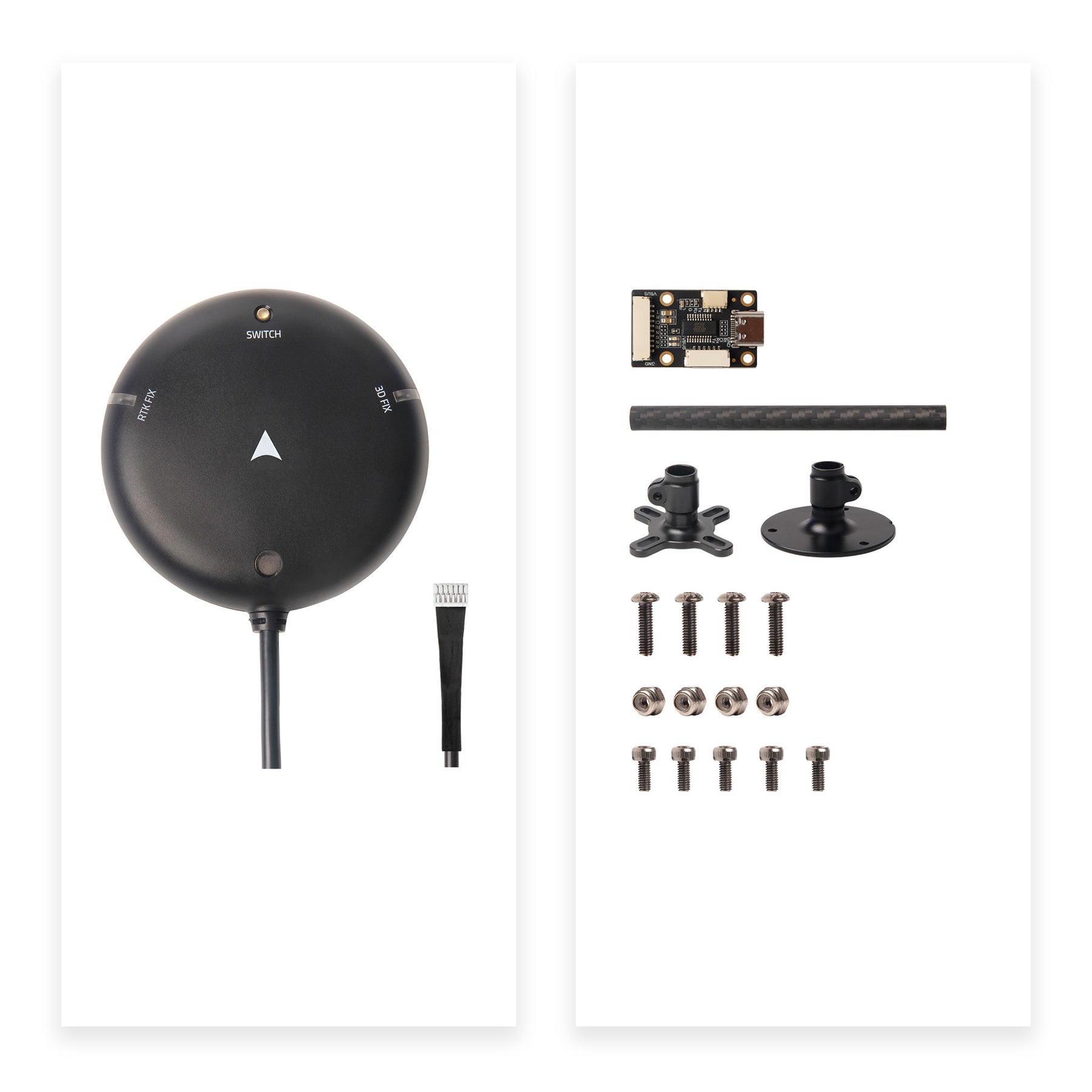

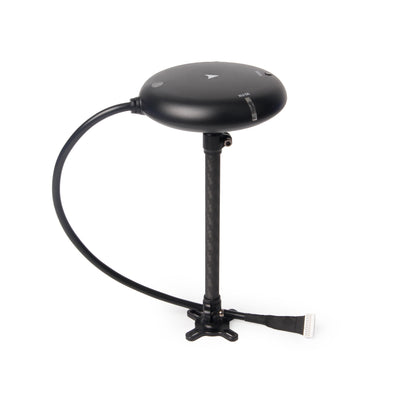

 Package Included:

  • H-RTK F9P Rover Lite *1 (Optional )

  • H-RTK F9P Rover Lite 2nd GPS *1(Optional)

  • Fixed Carbon Fiber GPS mount(40mm) *1

  • GPS UART to USB Converter *1(For SKU12017)

  • USB (type-c)cable *1

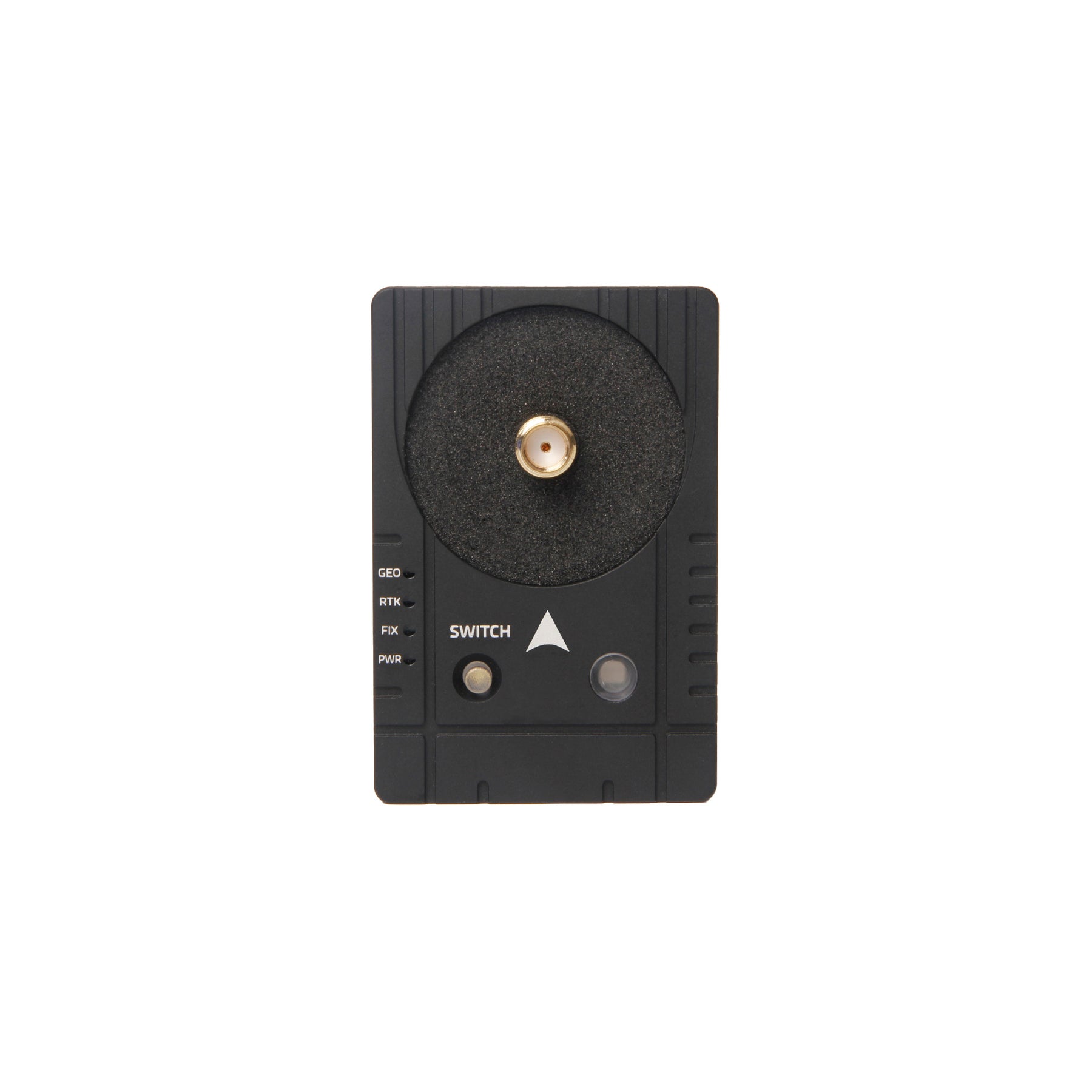

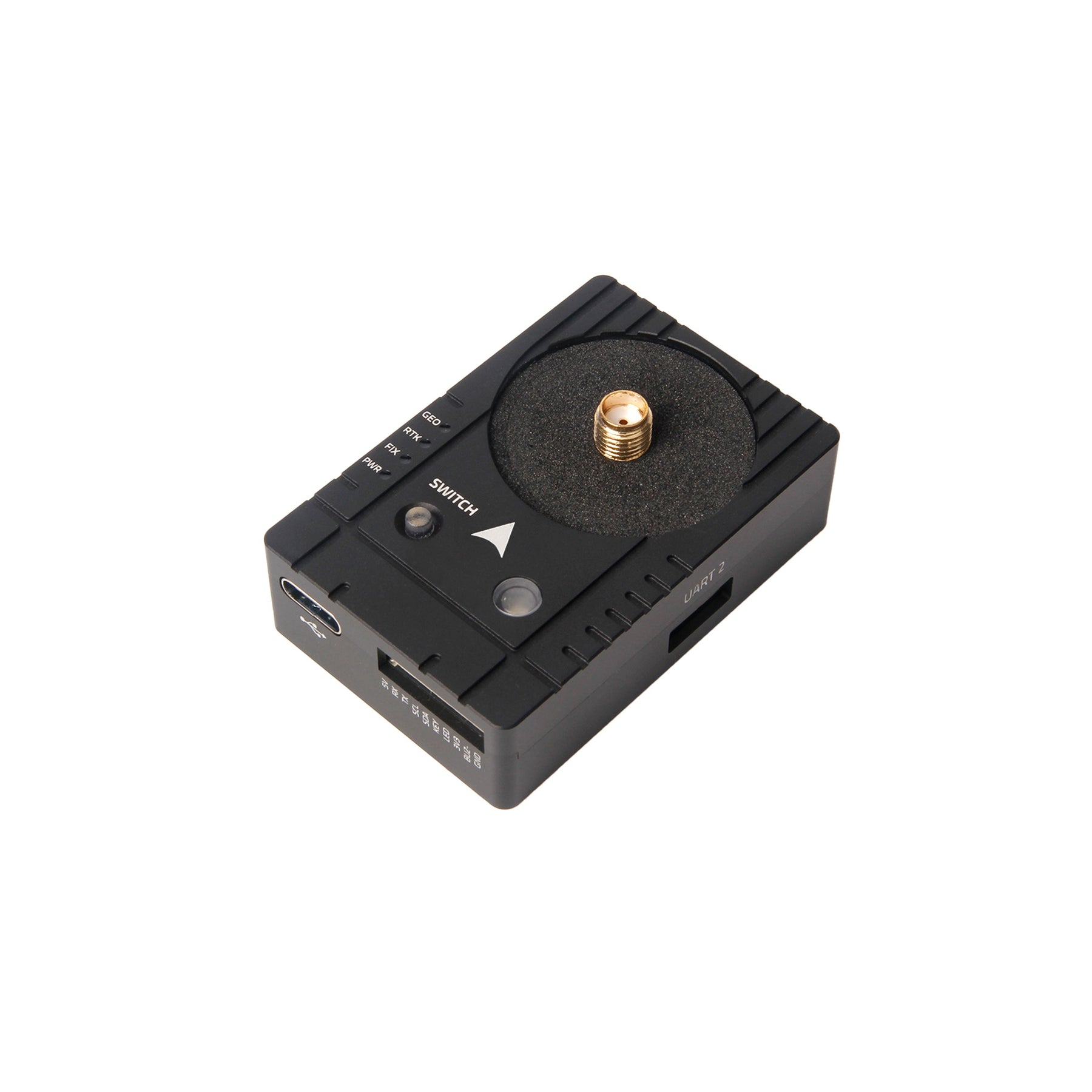

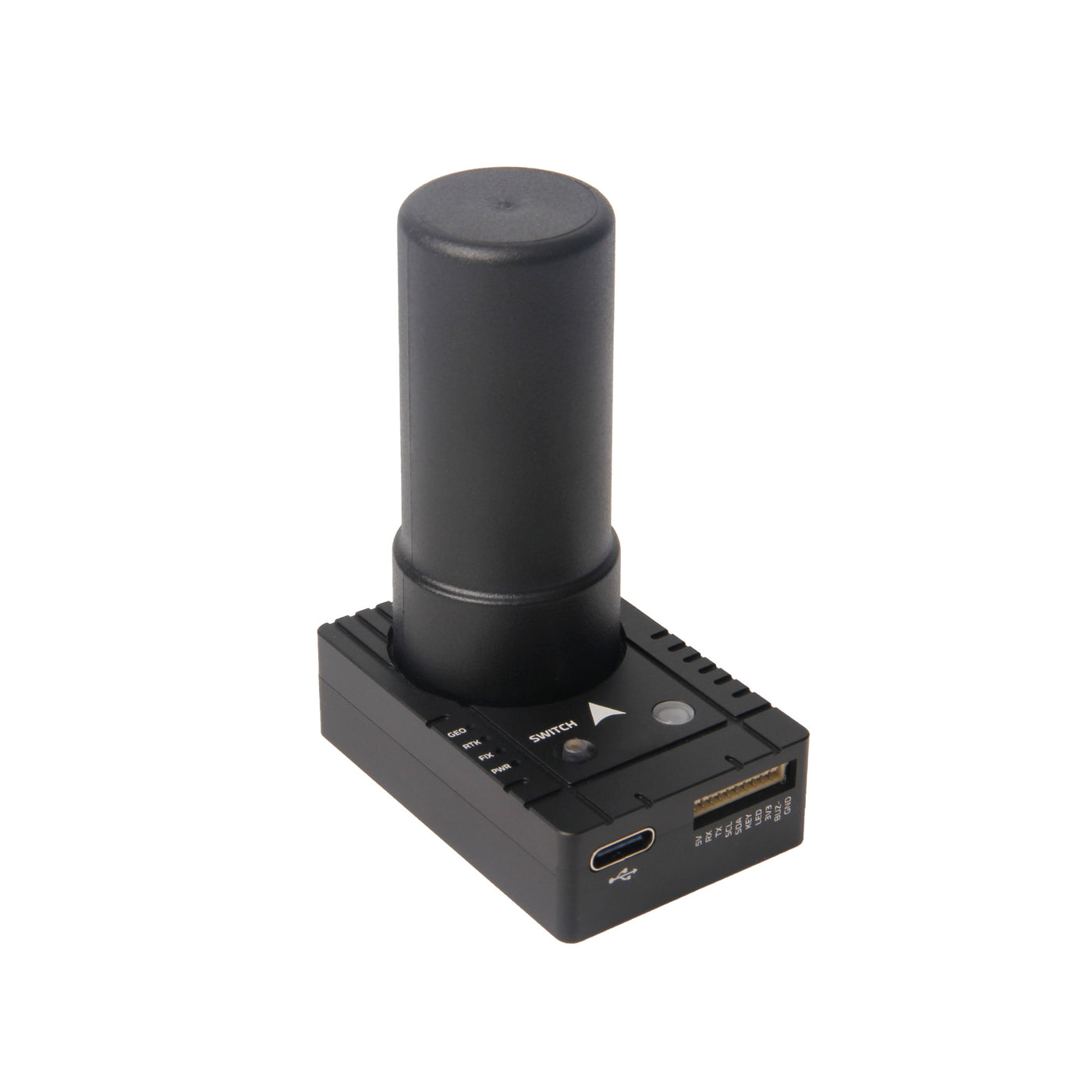

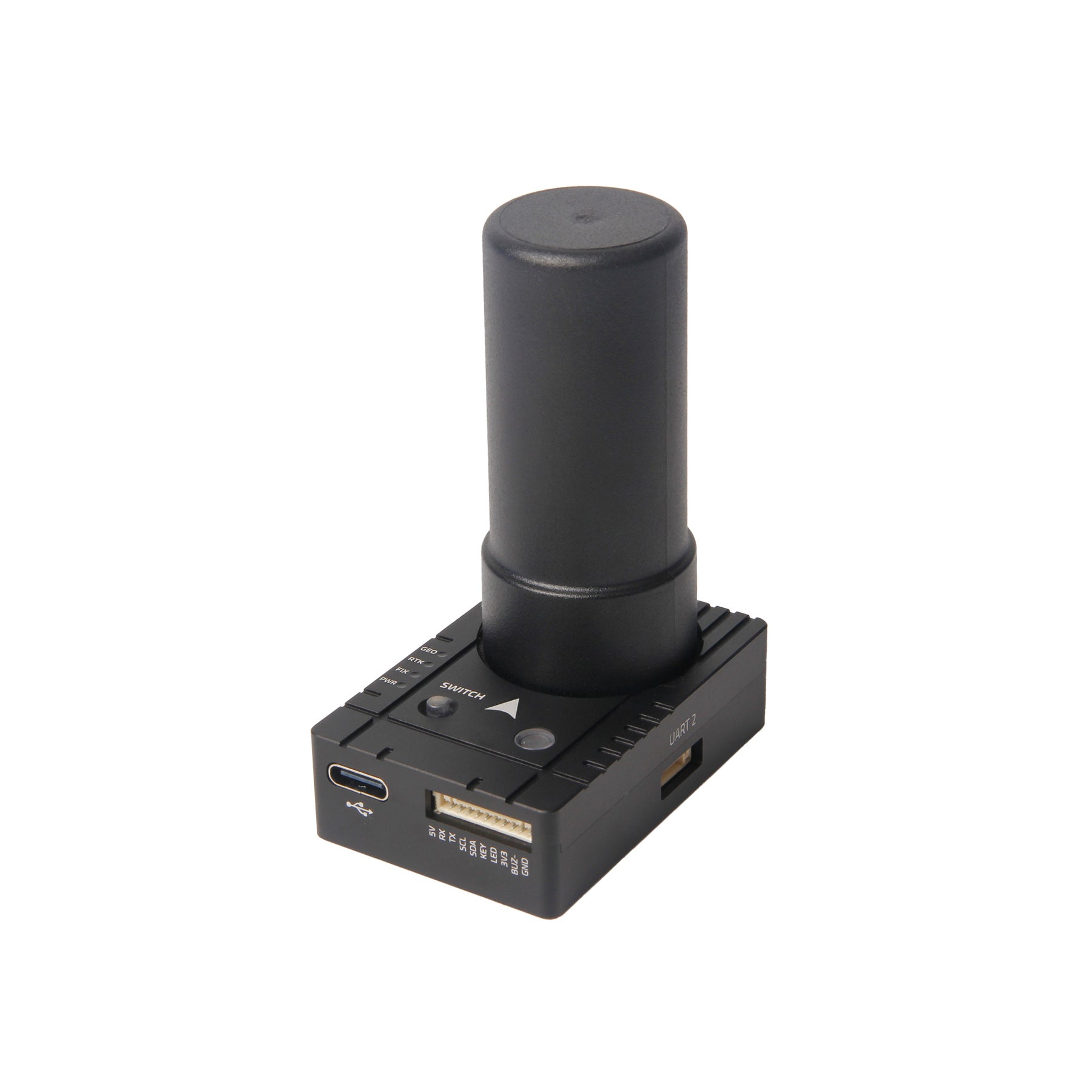

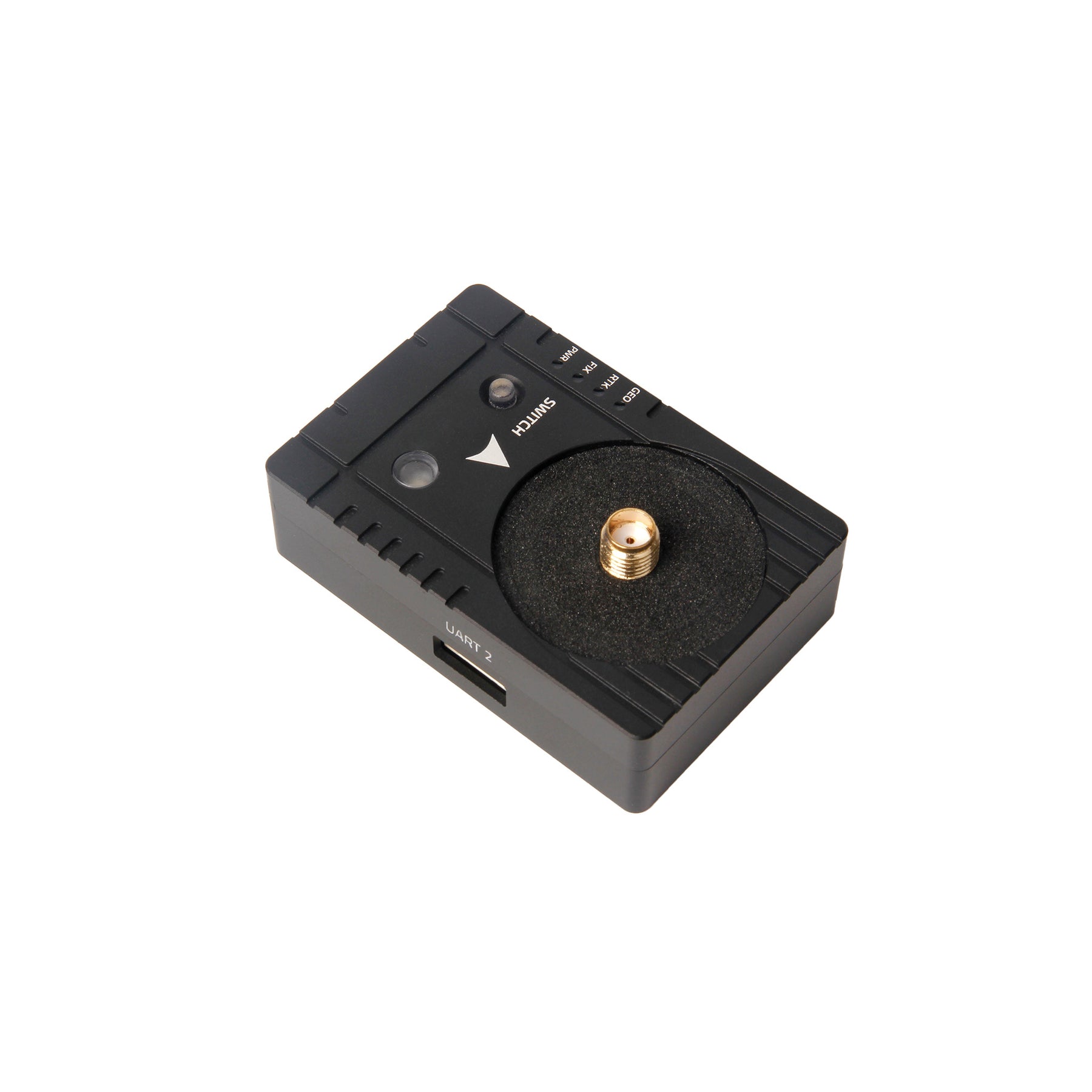

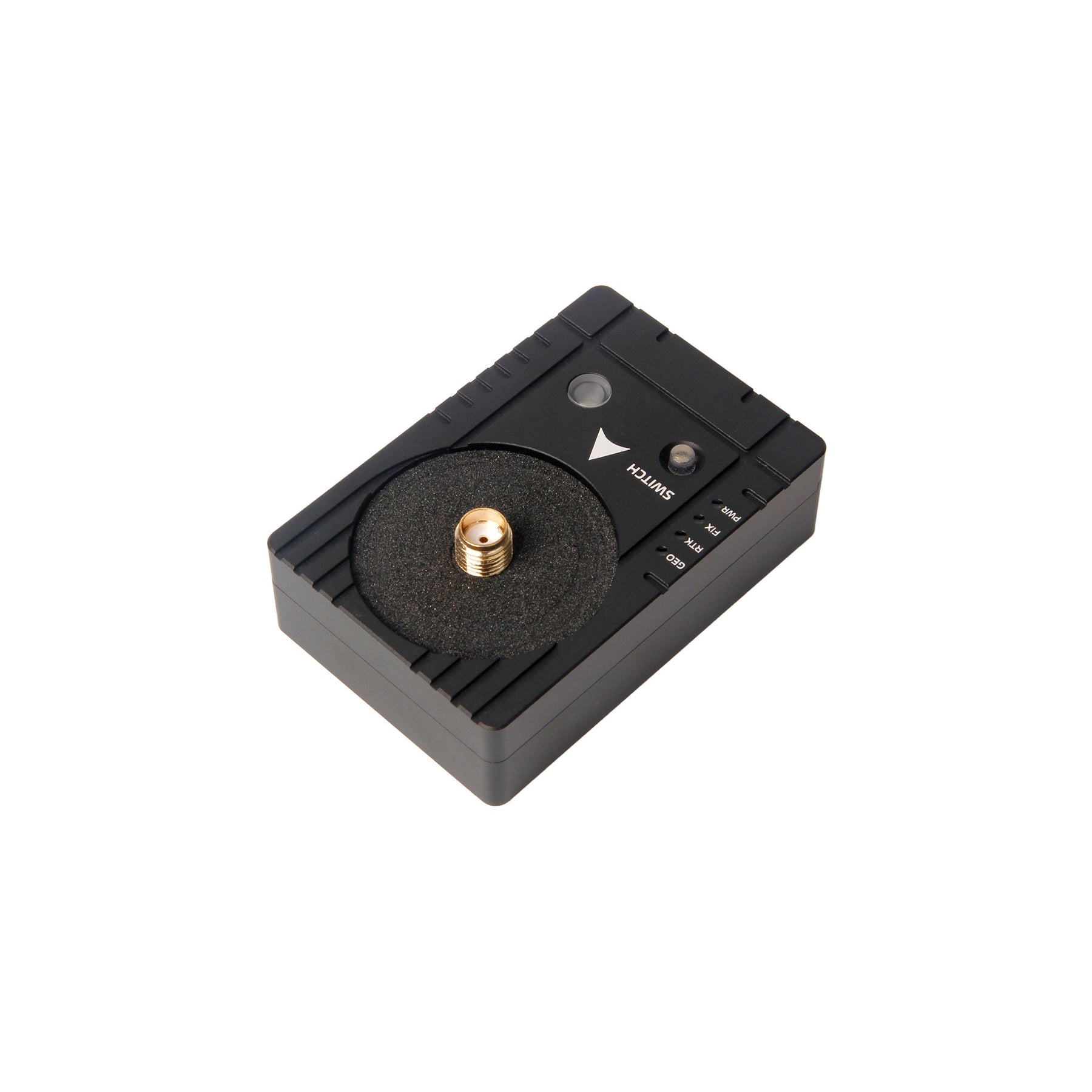

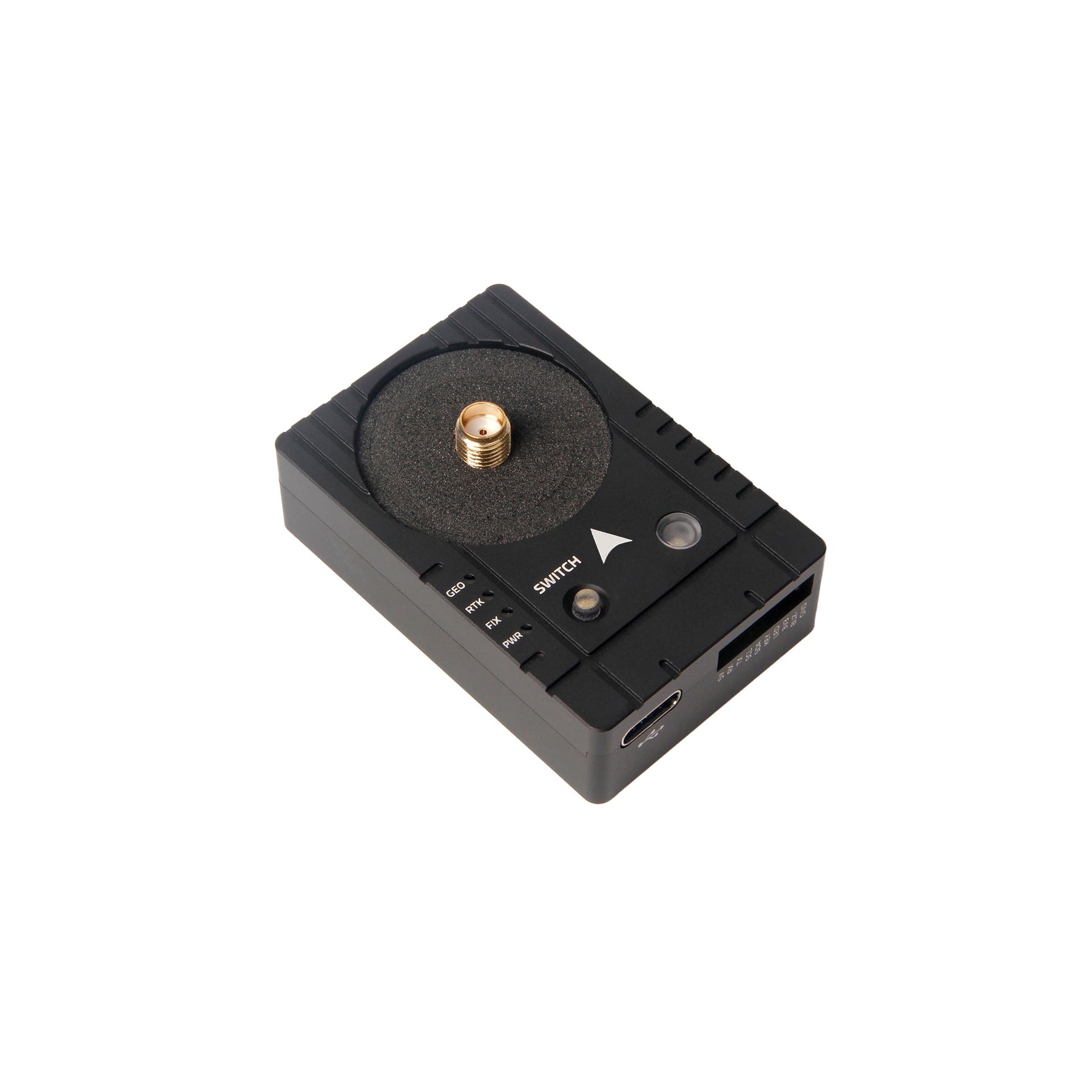

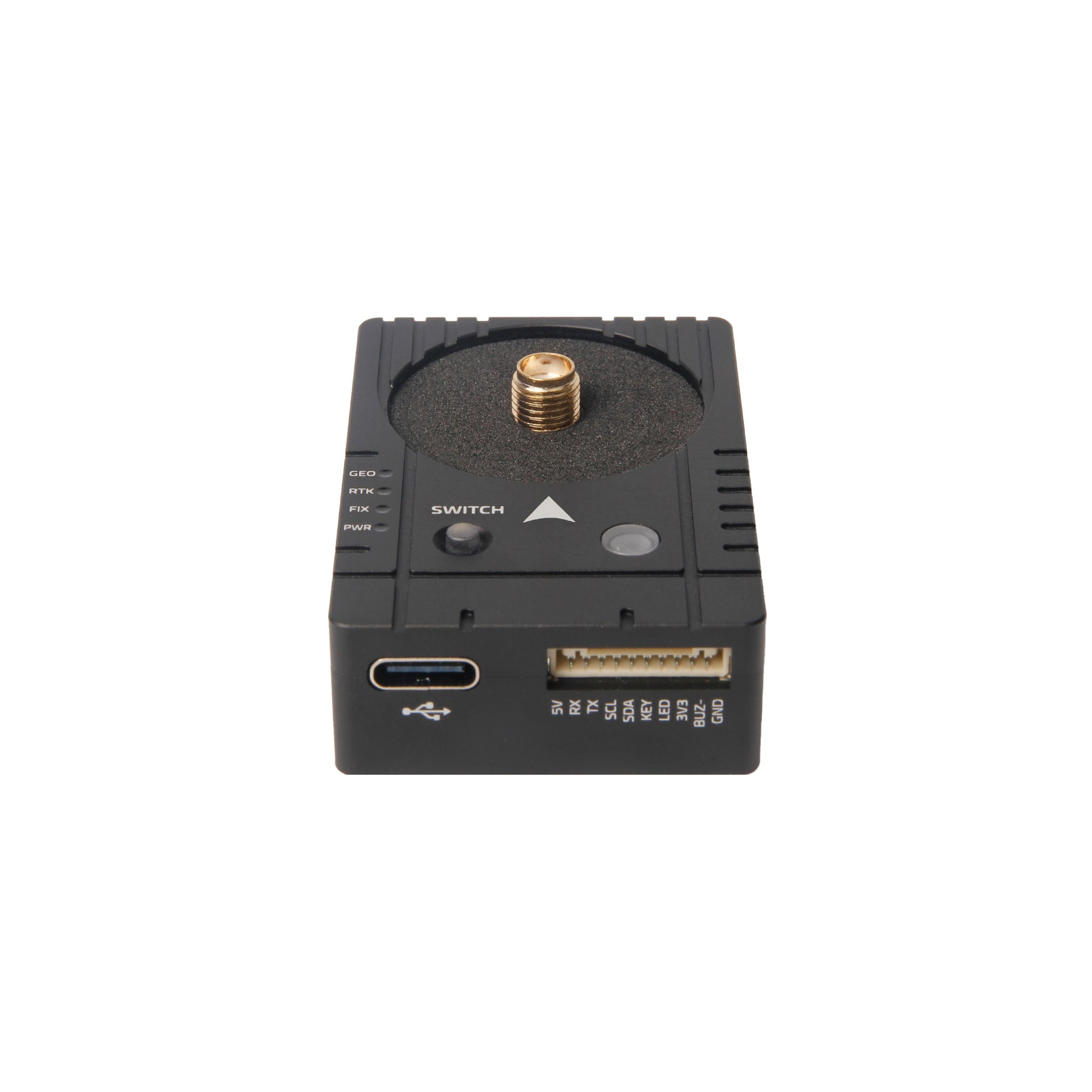

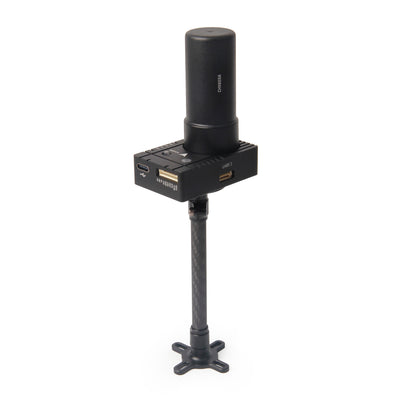

H-RTK F9P Helical (SKU12018)

This model uses a helical antenna, which has better performance than the lite version. This model can be used both on rover (aircraft) or as base station. The aluminum alloy shell design also has a integrated safety switch and a tri-colored LED indicator, and it is compatible with the open source Pixhawk-Standard Flight Controller flight controller.

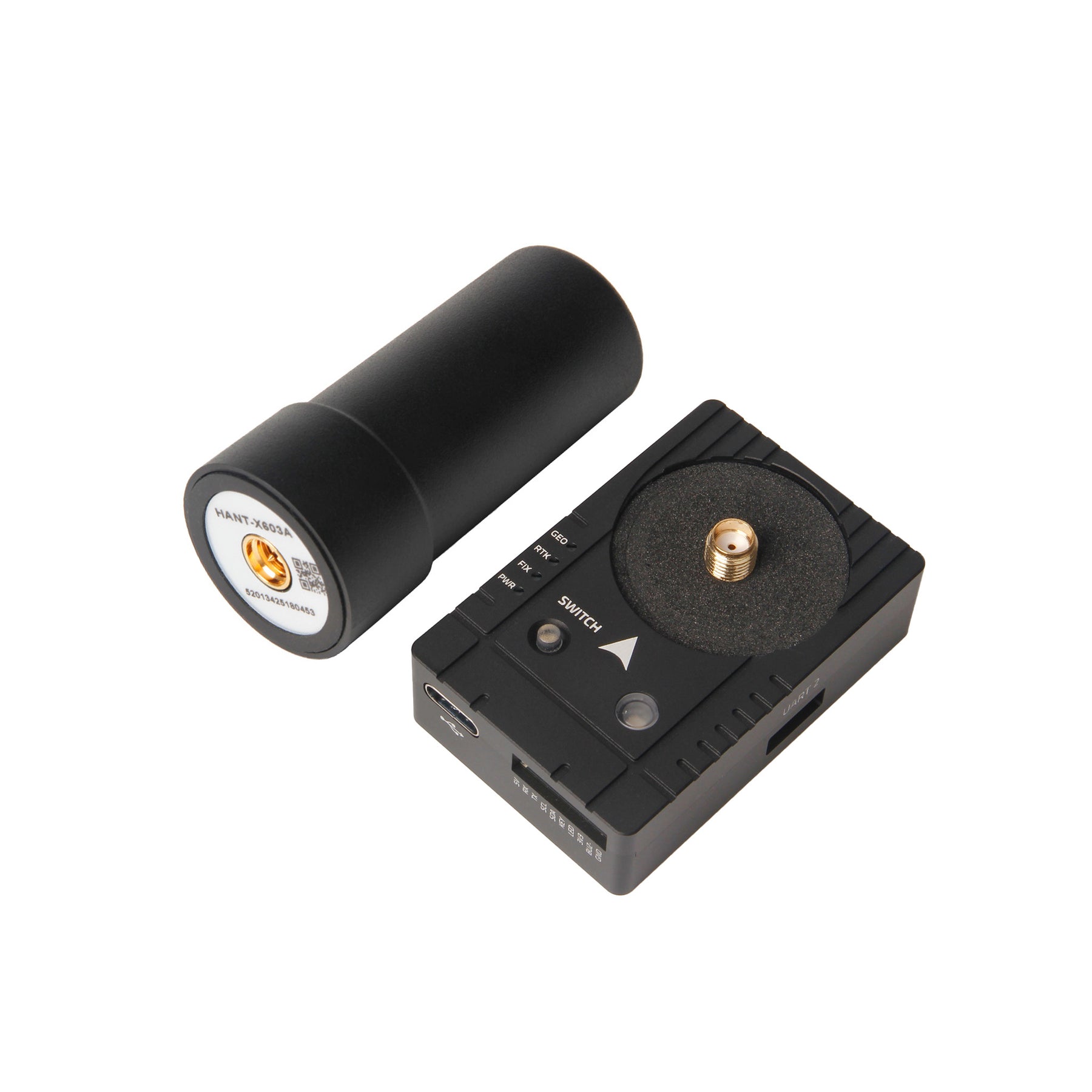

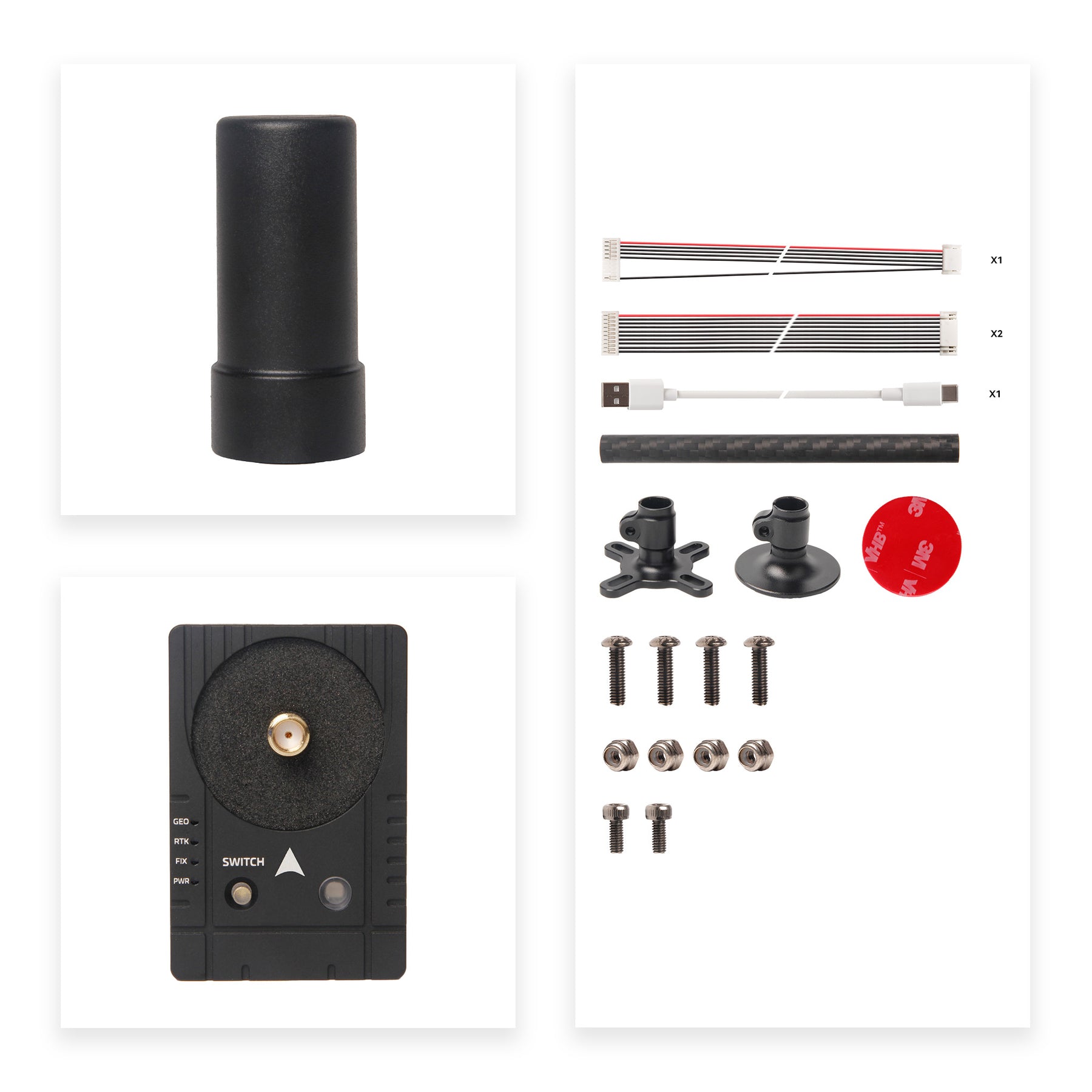

Package Included:

  • H-RTK F9P *1

  • High Precision GNSS Antenna(CHX603A) *1

  • Fixed Carbon Fiber GPS mount(29mm) *1

  • GH 10P cable 150mm *

  • GH 6P cable 300mm *1

  • GH 10P cable 400mm *1

  • USB type-c cable *1

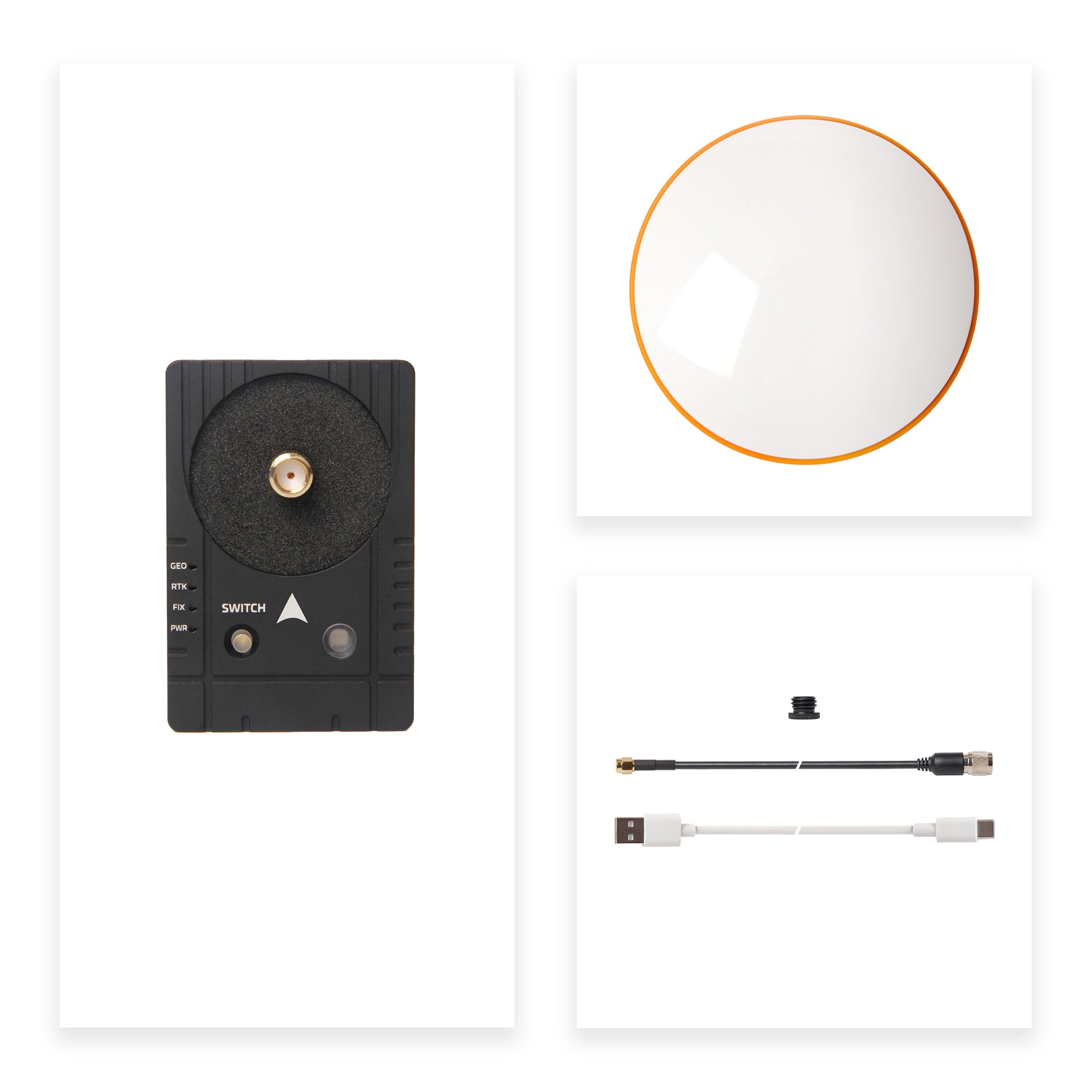

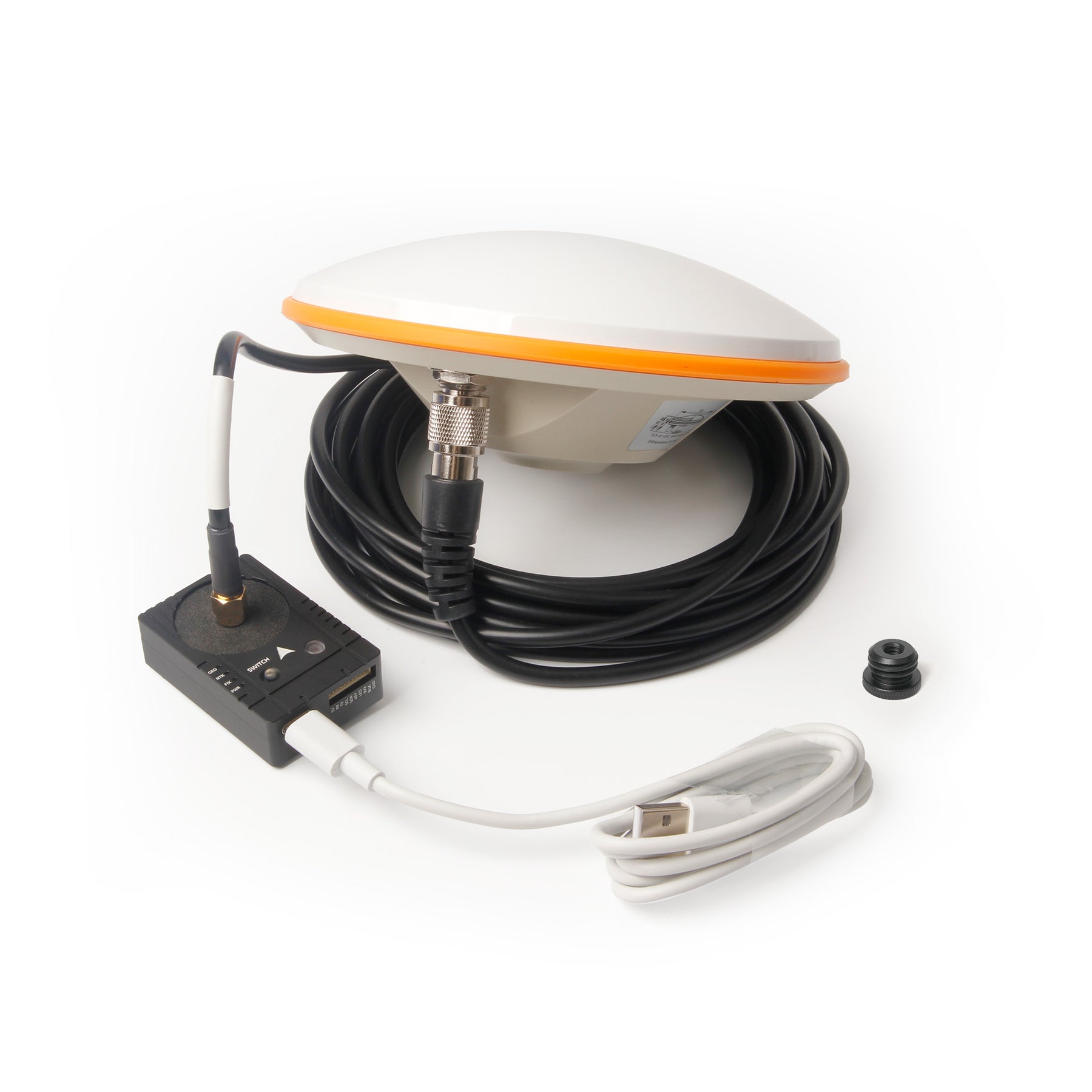

H-RTK F9P Base (SKU12022)

The board is the same as number 2 above, but it is equipped with a high-gain antenna. This model is best suited to use as base station. The search speed and positioning accuracy are the highest among the three models.

Package Included:

  • H-RTK F9P *1

  • High Precision GNSS Antenna (CSX627A) *1

(Note: The CS7624A antenna on the H-RTK F9P Base (SKU12022) & M8P Base (SKU12021) has been be replaced with similar CSX627A until further notice.  - Male-male SMA-TNC cable(length: 5m) *1 - 1/4'' Female to 5/8'' -11 Male Adapter *1 - USB type-c cable *1 *Tripod mount not included (sold separately)
