feature:
- All new High-quality MOSFETs with low internal resistance & heat generation, and individual metal heatsink
- New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
- Separate drive & control circuit, reducing the electrical interference to the control circuit
Specification:
- Continuous current: 50A x4
- Burst current: 60A x4
- Battery support: 4S
-
PWM frequency: 16k to 96k
- Support DShot 150/300/600/1200/2400
- Support MultiShot/OneShot/Proshot/PWM, etc.
-
Ā ESC telemetry SupportĀ
-
Onboard analog current sensor
- BLHeli_32 Firmware
- 1000uf 35v capacitor included
- Mounting holes: 3.6mm @ 20x20mm, compatible with either M2& M3 Rubber Gourmet (Included)
- Dimensions: 32 x 40 mm

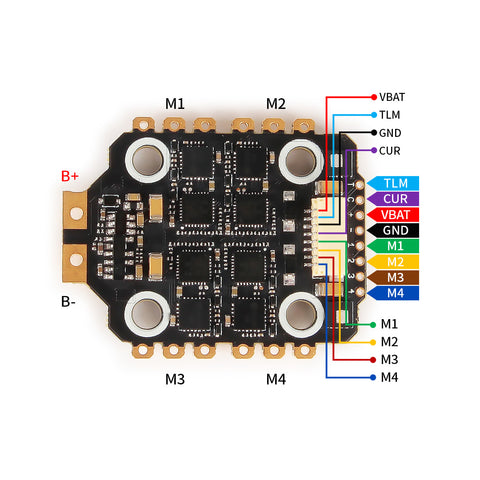

Pin Diagram:
Package Included:
- Tekko32 F4 4 in 1 mini 50A ESC *1
- M2 Anti-Vibration Silicone Grommet Insert *4
- M3 Anti-Vibration Silicone Grommet Insert *4
- Electrolytic capacitor: 1000uF 35v *1
- 8pin to 8pin 1mm pitch 65mm cable*1
- 8pin to 8pin 1mm spacing 25mm cable*1
