This board is based on the Pixhawk project FMUv2 open hardware design. It is also know as Pixhawk 2，with hardware version px4 2.4.6.
Features:
- Advanced 32 bit ARM Cortex® M4 Processor running NuttX RTOS
- Abundant connectivity options for additional peripherals (UART, I2C, CAN)
- Redundant power supply inputs and automatic failover
- External safety button for easy motor activation
- Multicolor LED indicator
- High-power, multi-tone piezo audio indicator
- microSD card for long-time high-rate logging
- 14 PWM / Servo outputs (8 with failsafe and manual override, 6 auxiliary, high-power compatible)
- Integrated backup system for in-flight recovery and manual override with dedicated processor and stand-alone power supply (fixed-wing use)
- Backup system integrates mixing, providing consistent autopilot and manual override mixing modes (fixed wing use)

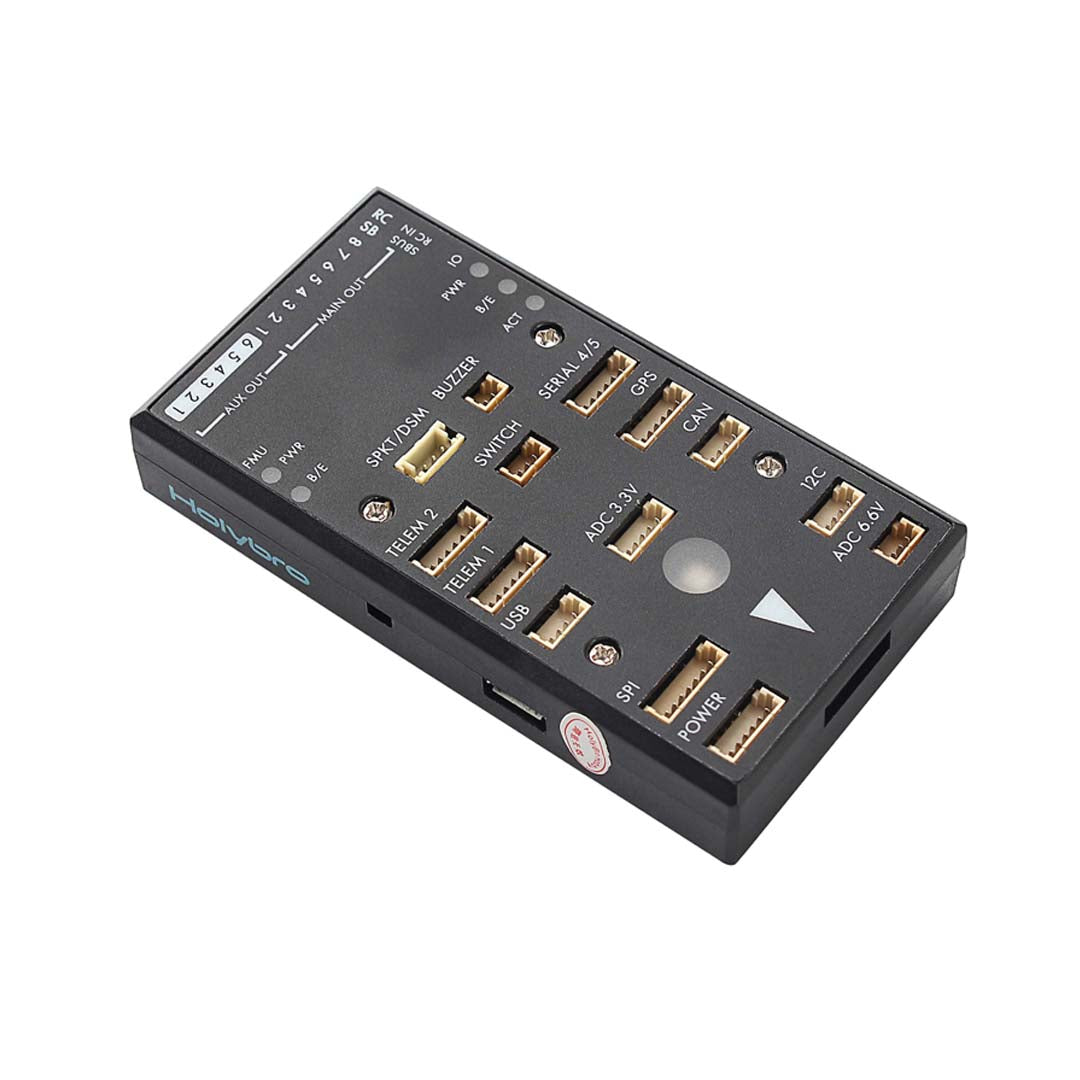

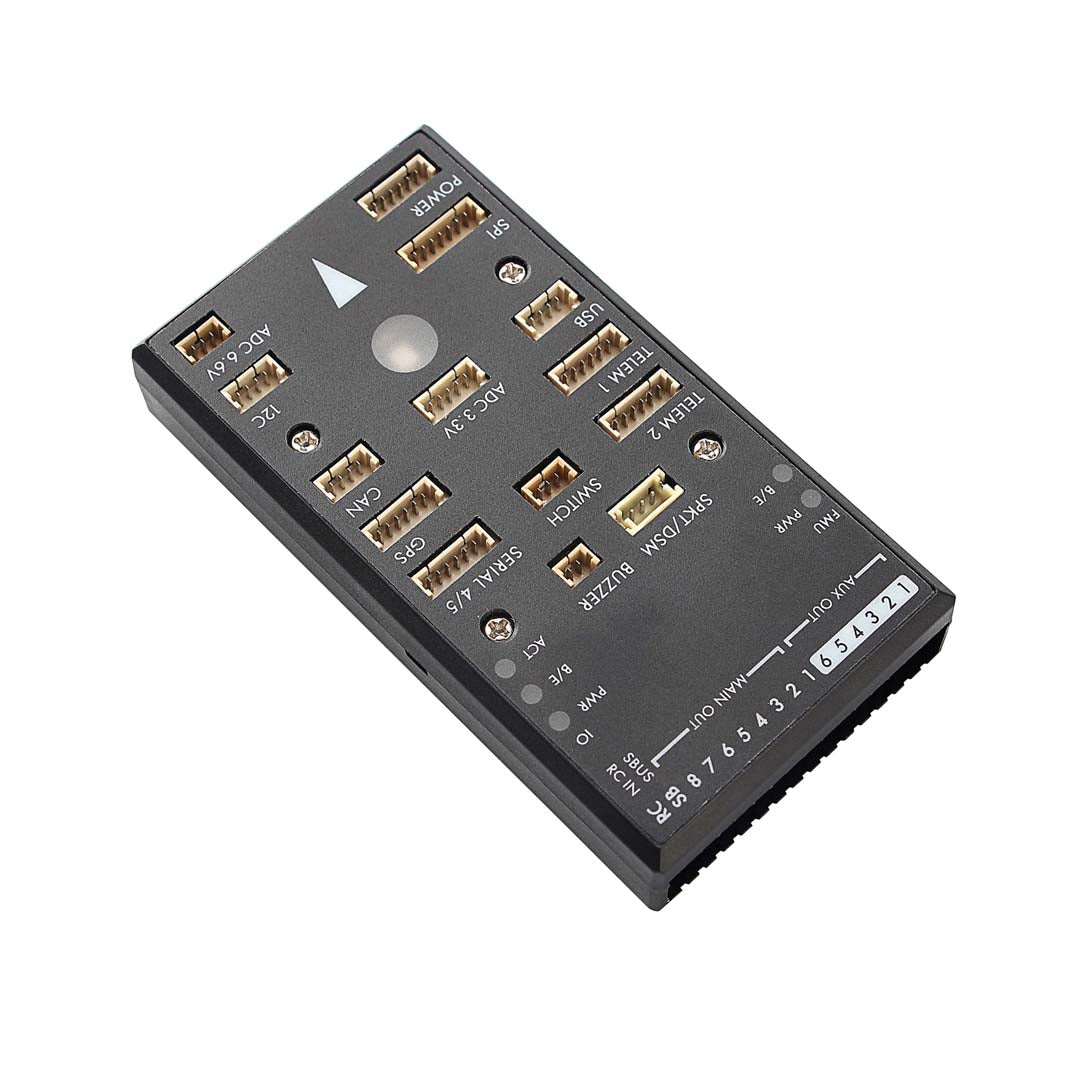

Pix32 is an advanced autopilot system designed by the PX4 open-hardware project. It features advanced processor and sensor technology from ST Microelectronics® and a NuttX real-time operating system, delivering incredible performance, flexibility, and reliability for controlling any autonomous vehicle.
The benefits of the Pix32 system include integrated multi-threading, a Unix/Linux-like programming environment, completely new autopilot functions such as Lua scripting of missions and flight behavior, and a custom PX4 driver layer ensuring tight timing across all processes. These advanced capabilities ensure that there are no limitations to your autonomous vehicle. The Pix32 allows existing APM and PX4 operators to seamlessly transition to this system and lowers the barriers to entry for new users to participate in the exciting world of autonomous vehicles.
The flagship Pix32 module will be accompanied by new peripheral options, including a digital airspeed sensor, support for an external multi-color LED indicator and an external magnetometer. All peripherals are automatically detected and configured.
Package Includes:
Pix32 autopilot
Buzzer
Power module with XT60 connectors and 6-position connector cable
Extra 6-position cable
Micro USB cable
SD card and USB adapter
3-wire servo cable
Safety switch*1
