Name: Holybro Mini FOC ESC Based on VESC®6
Brand: PCBA
SKU: 31095
Price: 140.99 USD
Availability: OutOfStock

Holybro Mini FOC ESC Based on VESC®6 (7150472560829)

$140.99

Shipping calculated at checkout.

Optional items:

Mini FOC ESC 1pc

Mini FOC ESC 4pcs

Quantity

[{"id":41473127415997,"title":"Mini FOC ESC 1pc","option1":"Mini FOC ESC 1pc","option2":null,"option3":null,"sku":"31095","requires_shipping":true,"taxable":false,"featured_image":{"id":31469507510461,"product_id":7150472560829,"position":6,"created_at":"2022-02-18T11:40:12+08:00","updated_at":"2022-02-18T11:40:14+08:00","alt":"Holybro Mini FOC ESC Based on VESC®6 (7150472560829)","width":1080,"height":1080,"src":"\/\/holybro.com\/cdn\/shop\/products\/31095_9.jpg?v=1645155614","variant_ids":[41473127415997]},"available":false,"name":"Holybro Mini FOC ESC Based on VESC®6 - Mini FOC ESC 1pc","public_title":"Mini FOC ESC 1pc","options":["Mini FOC ESC 1pc"],"price":14099,"weight":50,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":"Holybro Mini FOC ESC Based on VESC®6 (7150472560829)","id":23765457273021,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1080,"width":1080,"src":"\/\/holybro.com\/cdn\/shop\/products\/31095_9.jpg?v=1645155614"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":41473127448765,"title":"Mini FOC ESC 4pcs","option1":"Mini FOC ESC 4pcs","option2":null,"option3":null,"sku":"20123","requires_shipping":true,"taxable":false,"featured_image":{"id":31469509705917,"product_id":7150472560829,"position":8,"created_at":"2022-02-18T11:40:53+08:00","updated_at":"2022-02-18T11:40:55+08:00","alt":"Holybro Mini FOC ESC Based on VESC®6 (7150472560829)","width":1080,"height":1080,"src":"\/\/holybro.com\/cdn\/shop\/products\/20123_2.jpg?v=1645155655","variant_ids":[41473127448765]},"available":false,"name":"Holybro Mini FOC ESC Based on VESC®6 - Mini FOC ESC 4pcs","public_title":"Mini FOC ESC 4pcs","options":["Mini FOC ESC 4pcs"],"price":55559,"weight":150,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":"Holybro Mini FOC ESC Based on VESC®6 (7150472560829)","id":23765459435709,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1080,"width":1080,"src":"\/\/holybro.com\/cdn\/shop\/products\/20123_2.jpg?v=1645155655"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Specification

Continuous Current: 20A
Burst Current: 40A
Input Voltage: 48V(8S)
Hardware based upon the VESC® 6.0
Firmware updatable
VESC_TOOL Compatible Software
Compatible with Sensored / Sensorless Motor
Size: 18mm*65mm
Net Weight: 10g/pcs

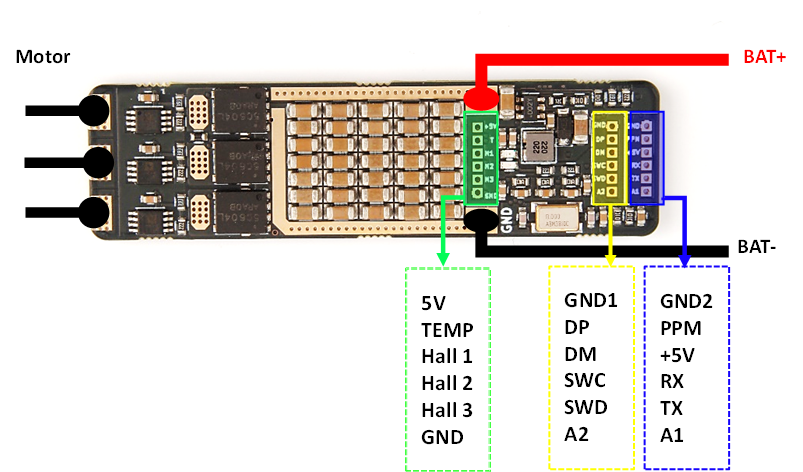

Port Definition:

- GND1/2, DP(Data postive), DM(Data Minus/Negative): USB port for programming.

- GND1/2, PPM, +5V: PPM port to connect PPM transceivers.

- SWC(CLK), SWD(DIO), GND1/2, 5V: SWD port, to get direct access to the Chipset. Diagnostics, debugging, and real time data.

- A1(ADC1), A2(ADC2), TX, RX, GND1/2, 5V: COMM port for various kinds of other communication methods like I2C, ADC, Uart. You can use your Arduino or Raspberry Pi to control the VESC.

- 5V, TEMP, HAll1, Hall2, Hall3 GND: Sensor port for motor Hall sensors (ABI, HALL, magnetic precision encoders).

PS: (GND1 and GND2 are same, for above ports containing GND1/2, you can just select one to use).
