Overall

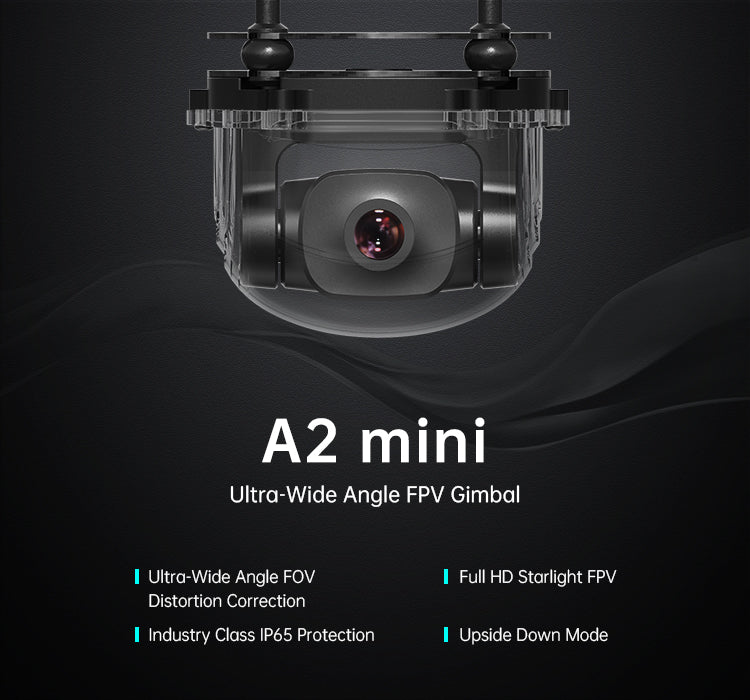

Model: A2 mini
Video Output Port: Ethernet
Control Signal Input Port: S.Bus / PWM
Working Voltage: 12 V
Power Consumption: Summit 12 W
Working Temperature: -10 ~ 50 ℃
Waterproof Level: IP65
Dimension: 65*43*50 mm
Weight: 85 g
Gimbal

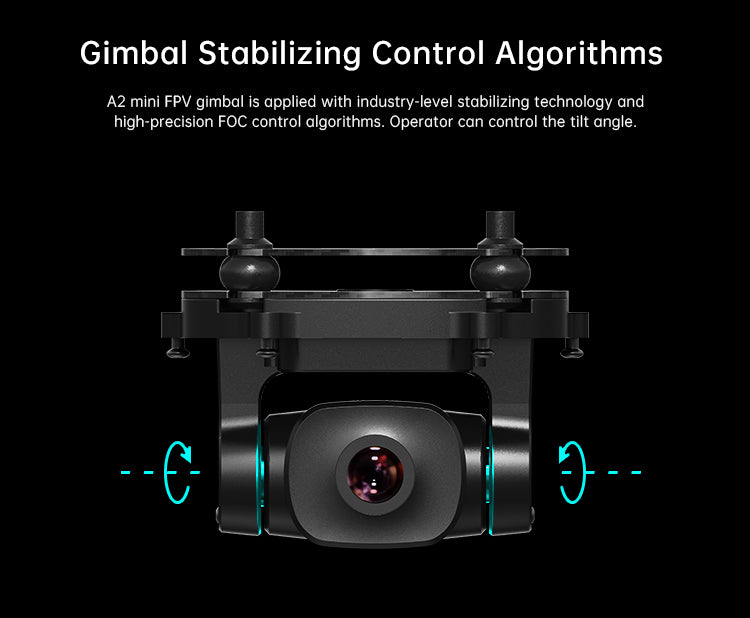

Controllable Pitch Angle: -90° ~ +25°
Camera
Image Sensor: 1/2.7-inch CMOS, 2 MP effective resolution

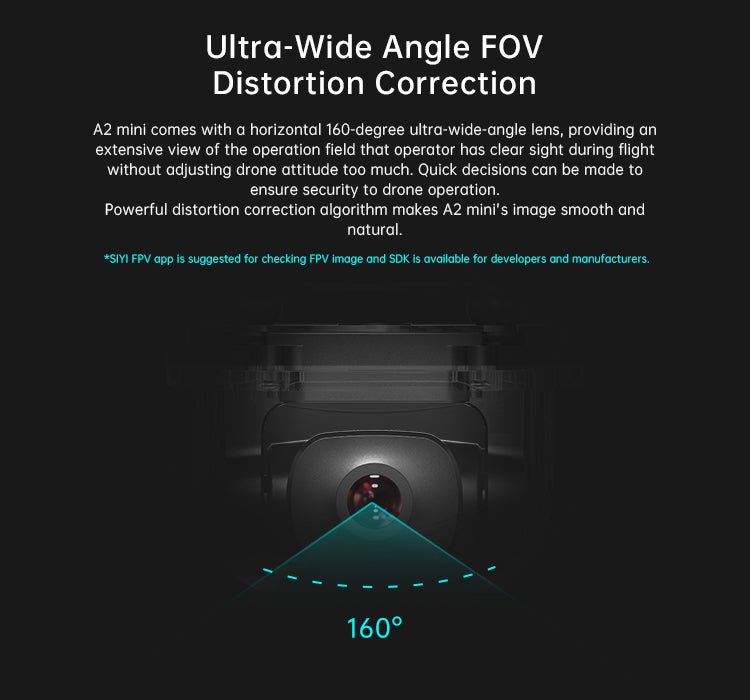

FOV: Horizontal 160°
-
Downloads
- A2 mini 3D File
