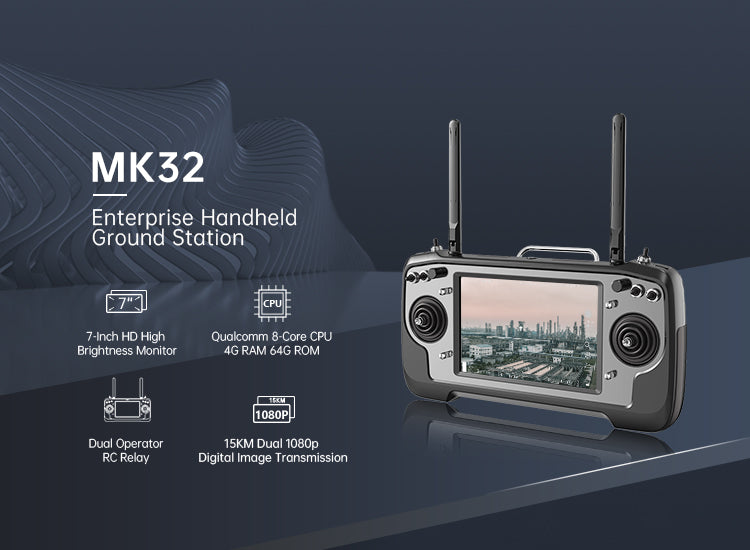

Name: MK32 Handheld Ground Station
Brand: PCBA & Plastic
SKU: 13033
Price: 629.99 USD
Availability: InStock

MK32 Handheld Ground Station (7408895492285)

$629.99

Shipping calculated at checkout.

ITEM

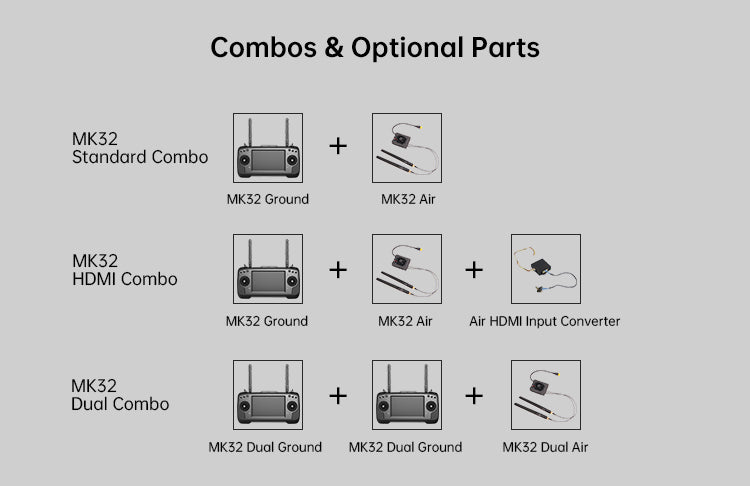

MK32 Standard Combo

MK32 HDMI Combo

MK32 Dual Combo

Quantity

[{"id":42528282575037,"title":"MK32 Standard Combo","option1":"MK32 Standard Combo","option2":null,"option3":null,"sku":"13033","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"MK32 Handheld Ground Station - MK32 Standard Combo","public_title":"MK32 Standard Combo","options":["MK32 Standard Combo"],"price":62999,"weight":3500,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42528282607805,"title":"MK32 HDMI Combo","option1":"MK32 HDMI Combo","option2":null,"option3":null,"sku":"13034","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"MK32 Handheld Ground Station - MK32 HDMI Combo","public_title":"MK32 HDMI Combo","options":["MK32 HDMI Combo"],"price":70399,"weight":3500,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42528282640573,"title":"MK32 Dual Combo","option1":"MK32 Dual Combo","option2":null,"option3":null,"sku":"13035","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"MK32 Handheld Ground Station - MK32 Dual Combo","public_title":"MK32 Dual Combo","options":["MK32 Dual Combo"],"price":138599,"weight":7000,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Specifications:

Model: MK32

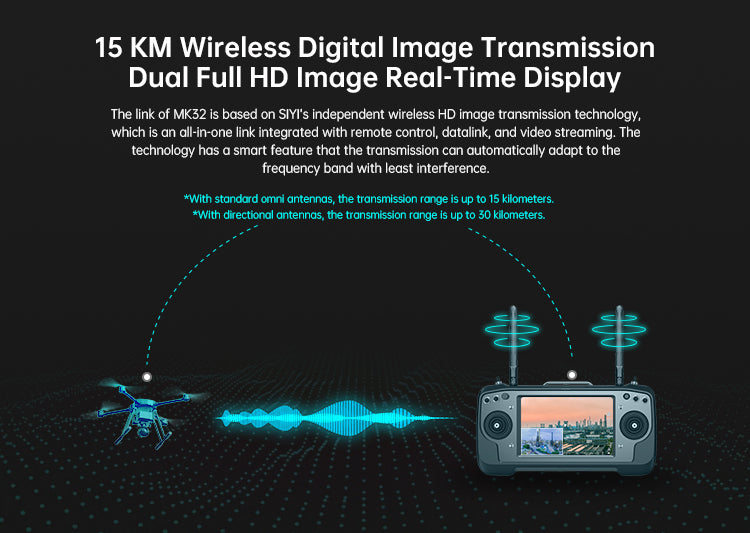

Max Transmission Range: 15 kilometers (unobstructed, free of interference)
Channels: 16 physical channels, 16 communication channels
Datalink Compatible Flight Controllers: Pixhawk / APM based flight controllers or any flight controllers with UART datalink output
Image Transmission Compatible Android GCS:
- QGroundControl
- SIYI FPV
Image Transmission Compatible Windows GCS:
- QGroundControl

Ground Station

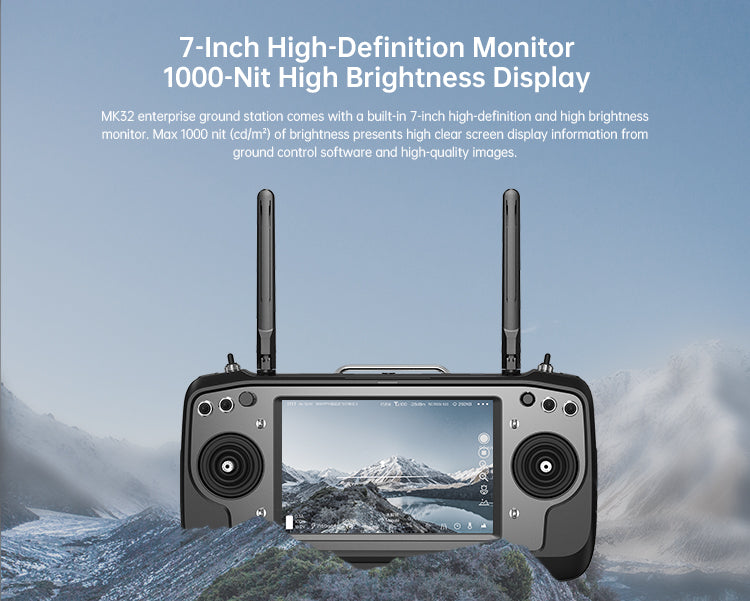

Monitor: 7-Inch High Definition and High Brightness LCD Touchscreen
System: Android 9.0 OS, 4G RAM & 64G ROM
Dimension (antenna overlapped): 308 x 148 x 72 mm
Weight: 1440 g
Battery Capacity & Type: 10200 mAh 7.4 V 2S Li-ion, 75.48 Wh
Fast Charging Protocol: PD 30W
Charging Time: 3.5 Hours (30W PD Charging)
Battery Life: 10 hours

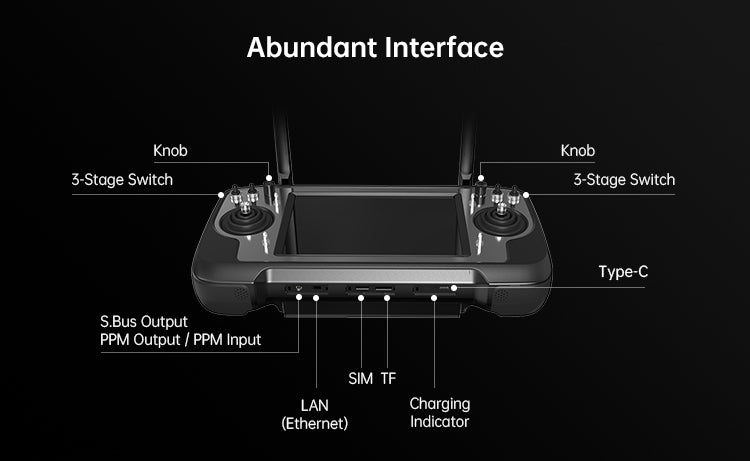

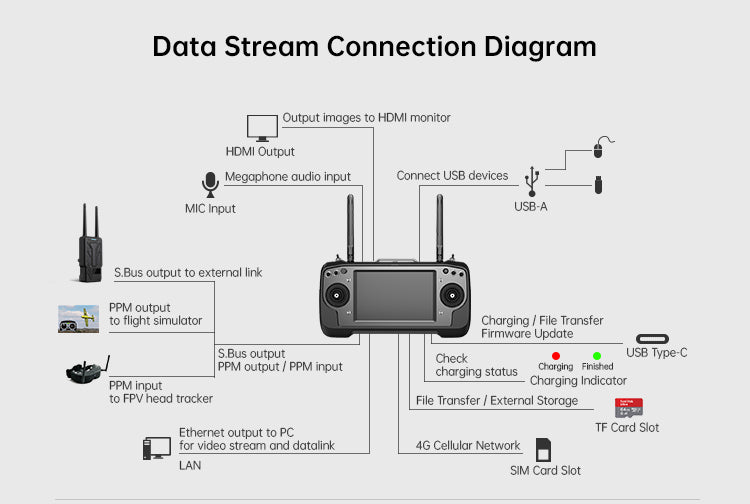

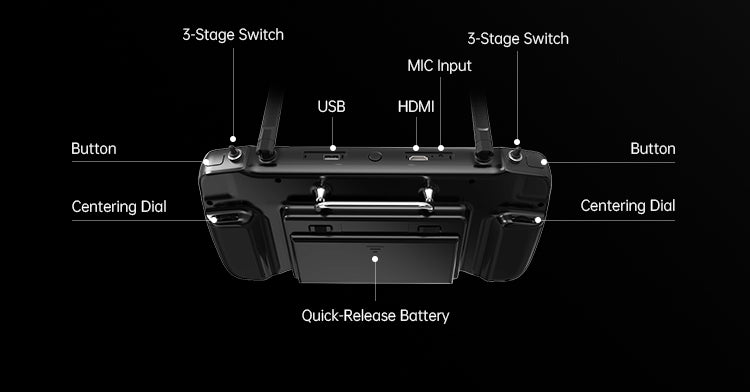

Interface & Ports:

- Video Output: Standard HDMI
- External Device: USB-A
- MIC Input: Top Audio Port
- Charging: Type-C
- Firmware Upgrade: Type-C
- File Transfer: Type-C / USB-A
- 4G Cellular Network: SIM Card Slot
- External Storage: TF Card Slot / USB-A
- Communication: LAN (Ethernet)
- RC Input / Output: Bottom Audio Port

Waterproof Level: IP4X
Working Temperature: -10 to 50℃

Air Unit

Signal Output: 16 channels of S.BUS, 5 channels of PWM

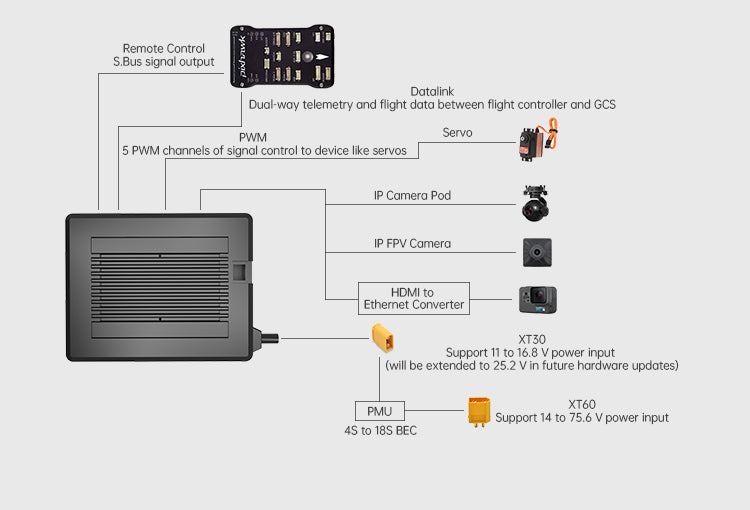

Interface & Ports:
- SBUS: 3-Pin
- Datalink (to FC): UART 4-Pin
- PWM Channel 1 to 5: 6-Pin
- Video Input: Ethernet 8-Pin
- Firmware Upgrade: Type-C
Dimensions (antenna excluded, fan included): 70 x 55 x 16 mm
Weight (antenna excluded): 74 g
Antenna Gain (standard omni): 5 dBi
Power Input: 11 to 16.8 V (expandable to 4S to 18S with BEC)
Working Temperature: -10 to 50℃
