High Precision RTK GNSS Antennas
High Precision RTK GNSS Antennas
High Precision RTK GNSS Antennas
High Precision RTK GNSS Antennas
High Precision RTK GNSS Antennas

High Precision RTK GNSS Antennas

SKU:

8082


Model

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

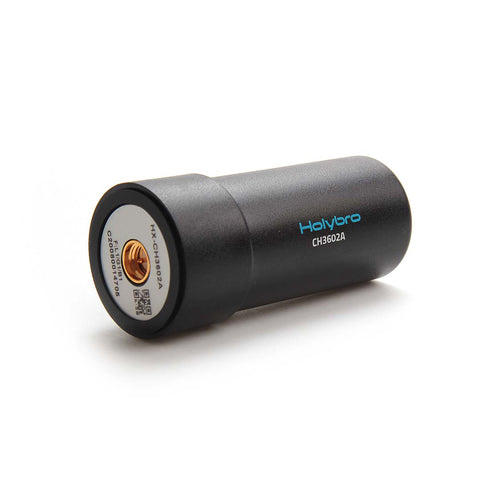

SKU8082  GNSS Antenna-CH3602A

KEY FEATURES

  • Supports 3 frequency bands
  • Support GPS, Glonass, Galileo, Beidou,QZSS, and SBAS signal reception
  • Stable phase center guarantees the accuracy of positioning within millimeter level
  • Strong anti-interference ability to endure the harsh operating environments
  • 25g light weight for lower power consumption
  • IP67 ruggedized protection

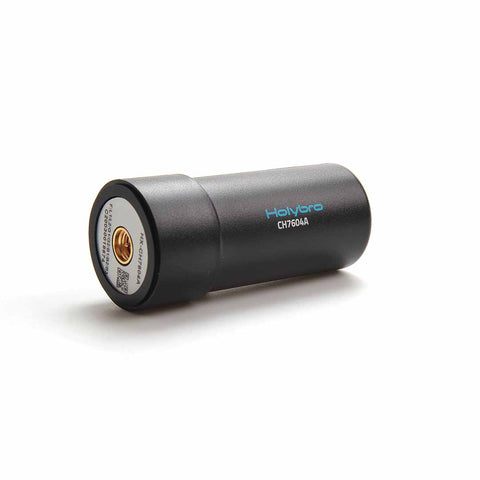

SKU8086  GNSS Antenna-CH7604A

KEY FEATURES:

  • Supports 3 frequency bands
  • Support GPS, Glonass, Galileo, Beidou,QZSS, and SBAS signal reception
  • Stable phase center guarantees the accuracy of positioning within millimeter level
  • D-QHA technology ensures multi-system satellite tracking
  • 25g weight, low power consumption ,55 mA@3.3VDC only
  • IP67 ruggedized protection



SKU8143  GNSS Antenna-CHX603A

  • Supports 4 frequency bands
  • Support GPS L1/L2/L5 ,BDS
    B1/B2/B3 ,GLONASS L1/L2/L3, Galileo E1/E5a/E5b
  • Stable phase center guarantees the accuracy of positioning within millimeter level
  • D-QHA technology ensures multi-system satellite tracking
  • 25g weight, low power consumption ,55 mA@3.3VDC only
  • IP67 ruggedized protection



SKU8136  GNSS Antenna-CH7609A

  • Supports 4 frequency bands
  • Comprehensive GNSS support: GPS, GLONASS, Galileo, BeiDou, as well as L-Band correction service
  • Centimeter phase center repeatability, high gain at low elevation
  • Improved signal filtering and excellent multipath rejection
  • lightweight, low profile facilitates easier integration
  • Dimensions ¢43.6*40.8mm ≤30.5g

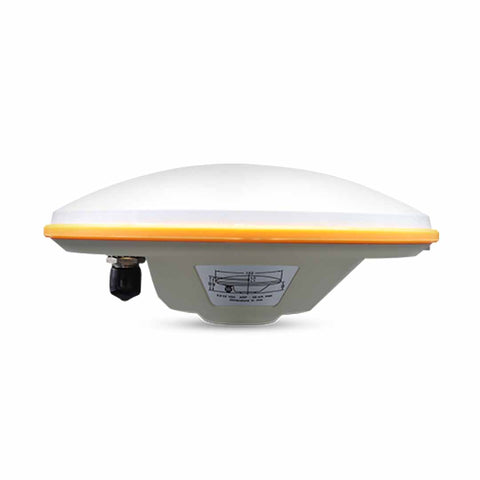

SKU8118  GNSS Antenna-CSX627A

  • Supports 4 frequency bands
  • Support GPS, Glonass, Galileo, Beidou, QZSS and SBAS signal reception
  • Stable phase center guarantees the accuracy of positioning within millimeter-level
  • Strong anti-interference ability to endure the harshest operating environments
  • IP67 ruggedized protection
  • Connector: TNC female
  • Mounting: BSW5/8''-11 screw,Depth:12-14mm
  • Weight : 440g

Package Includes:
    • High Precision GNSS Antenna(CSX627A) *1
    • Male-male SMA-TNC cable(length: 5m) *1
    • 1/4'' Female to 5/8'' -11 Male Adapter *1

Download

GNSS Antenna CH3602A_Spec
GNSS Antenna CH7604A_Spec

GNSS Antenna CSX627A_Spec
GNSS Antenna CHX603A_Spec
GNSS Antenna CH7609A_Spec
